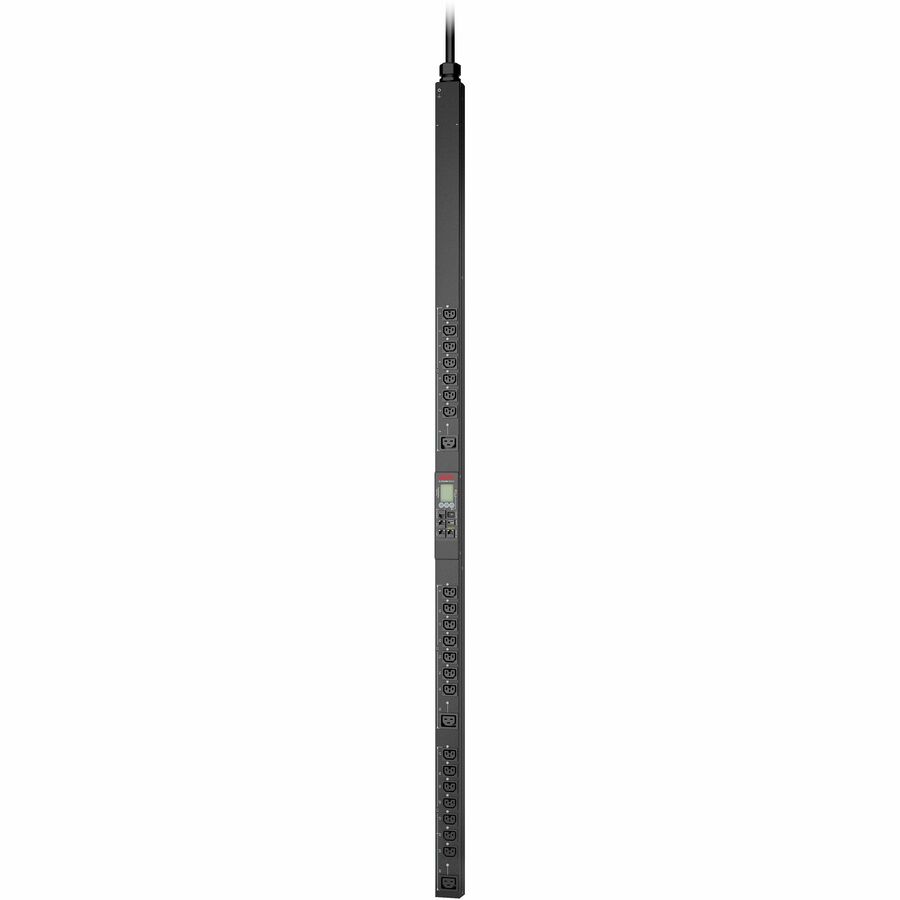

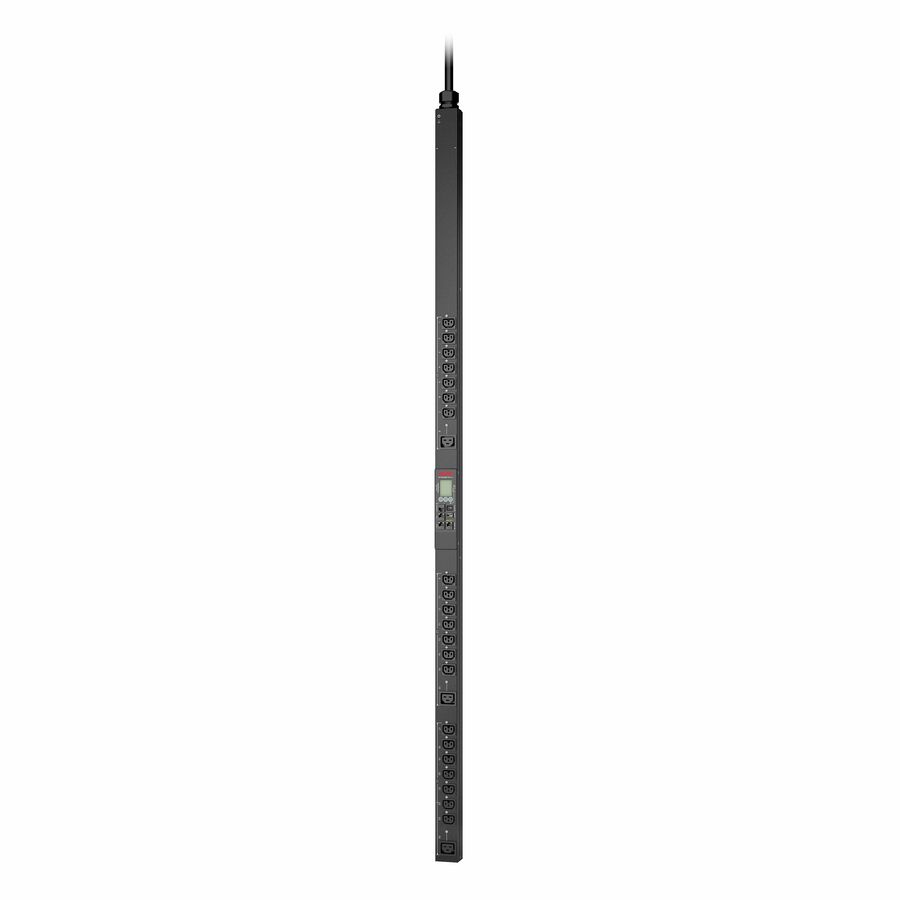

APC NetShelter Switched Rack PDU, 9K series, 0U, 11.5kW, 200-240V, 21 C13/C15 and 3 C19/C21 outlets
Switched - IEC 60309 20A 3P+N+PE - 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 - 415 V - Circuit Protection - Network (RJ-45) - 5.97 ft Cord Length - 0U - Vertical - Rack-mountable - Tower
- SKU
- APDU9981NA3
- Category
- PDUs
MSRP$3,915.00
$2,518.03
Save 36%Back ordered — ships when restocked.
Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- APDU9981NA3
- Category
- PDUs
Overview
It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 415V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60309 20A 3P + N + PE plug. The PDU is designed for ZeroU mounting.
Warranty
Limited Warranty: 3 Year
Highlights
- It can handle a maximum power capacity of 11.5kW, ideal for demanding applications
- It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, offering extensive connectivity

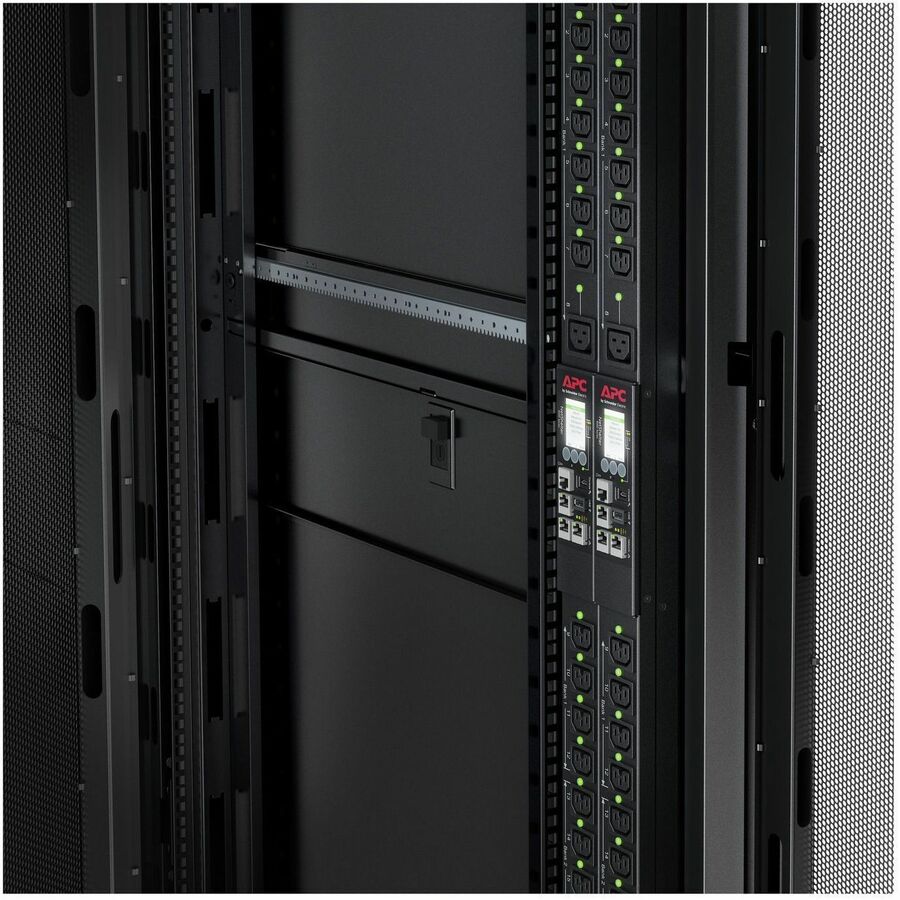

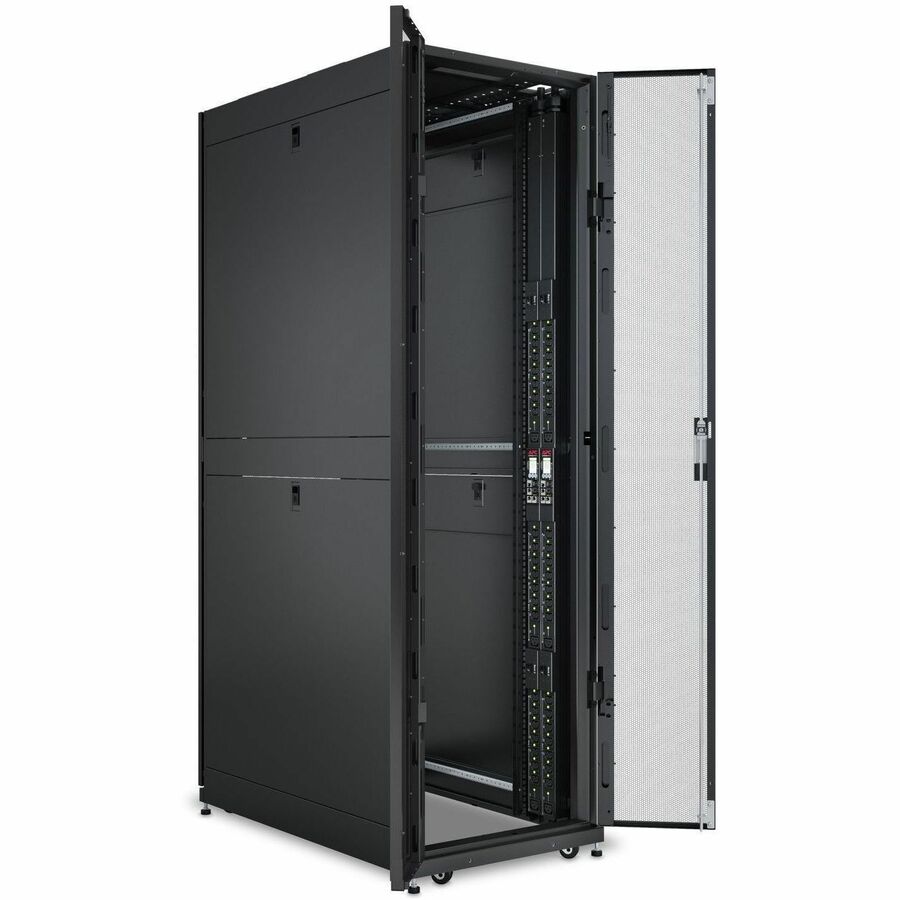

- The ZeroU mounting design helps save rack space and improves cable management

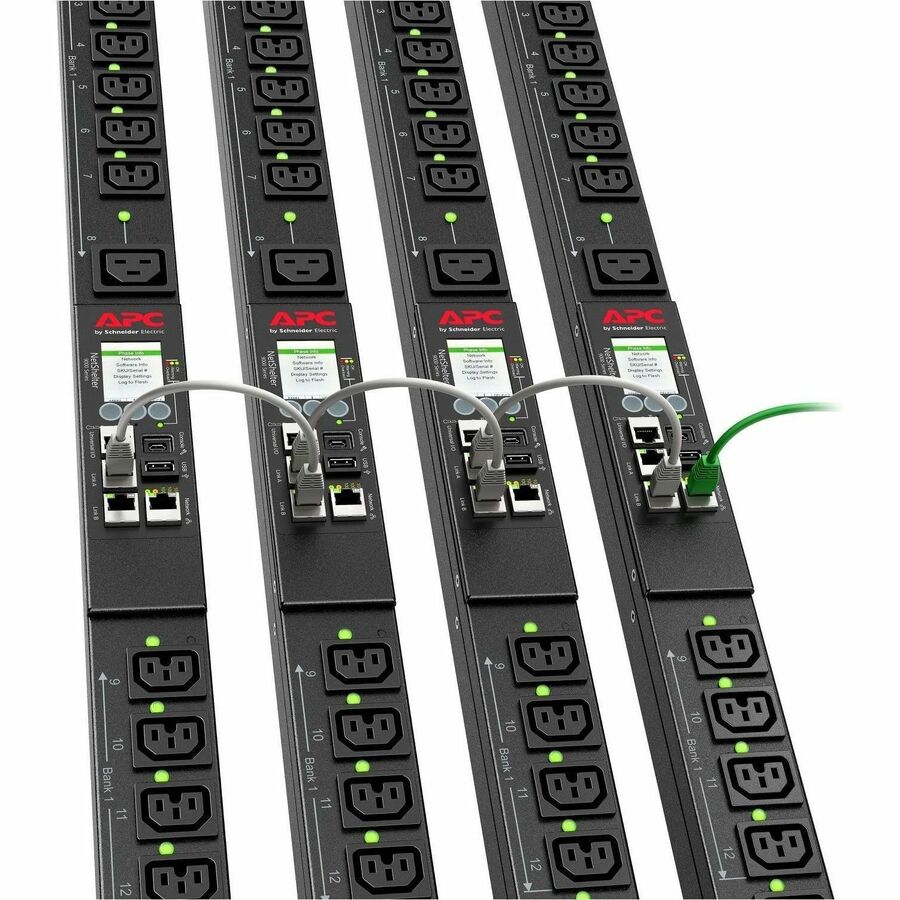

- Allows for remote monitoring and control, enhancing power management capabilities
Specifications
| Package Contents |
|
|---|---|
| Product Type | PDU |
| Input Voltage | 415 V |
| Manufacturer Part Number | APDU9981NA3 |
| Limited Warranty | 3 Year |
| Output Voltage | 208 V AC, 240 V AC |
| Weight (Approximate) | 15.43 lb |
| Form Factor | Tower |
| Input Current | 16 A |
| Management |
|
| Manufacturer | Schneider Electric SA |
| Product Name | Rack PDU 9000 Switched, ZeroU, 11.5kW, 208V, (21) C13/C15 & (3) C19/C21 |
| Mount Type | Rack-mountable |
| Protection Type | Circuit Protection |
| Product Series | 9000 |
| Rack Height | 0U |
| Brand Name | APC |

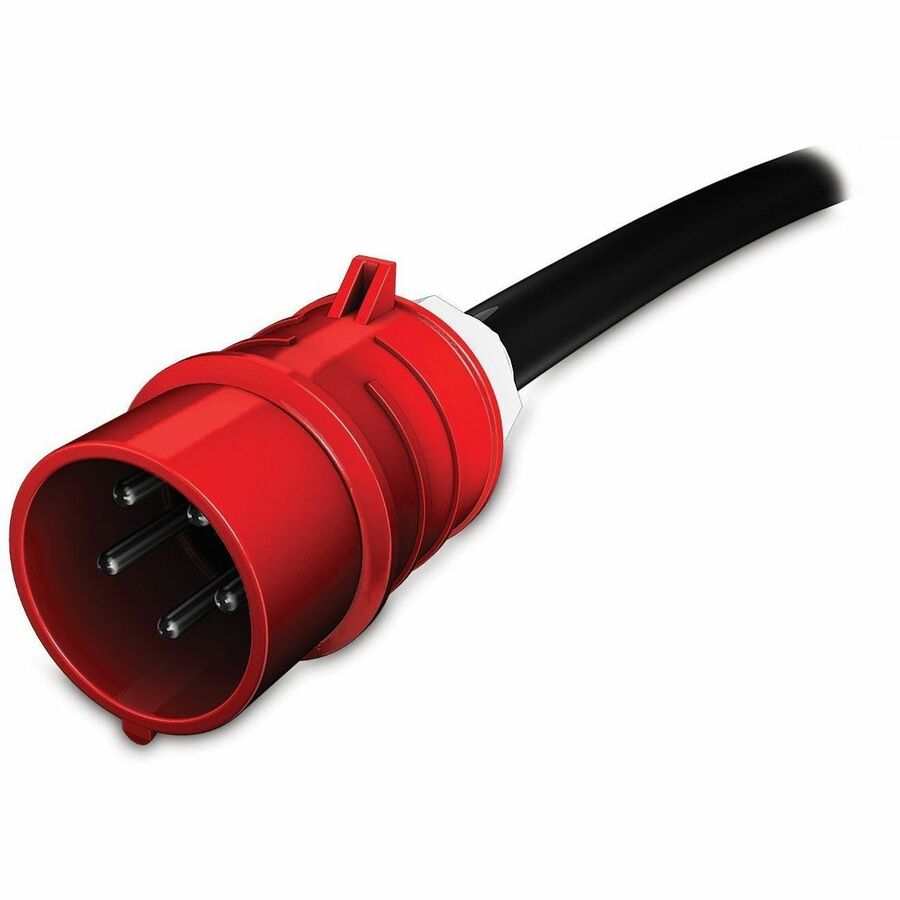

| Plug/Connector Type | IEC 60309 20A 3P+N+PE |
| Placement | Side |
| Country of Origin | India |
| Cord Length | 5.97 ft |
| Height | 70.5" |
| Width | 2.2" |
| Depth | 1.8" |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C13/C15, IEC 60320 C19/C21 |
| Environmentally Friendly | Yes |
| Network (RJ-45) | Yes |
| PDU Type | Switched |
| Remote Outlet Switching | Yes |
| Mounting Orientation | Vertical |
| Power Rating (VA) | 11500 VA |
| Power Rating (Watt) | 11.50 kW |
| Receptacle Detail | 21 x IEC 60320 C13/C15, 3 x IEC 60320 C19/C21 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
