APC NetShelter Rack PDU Advanced Network Management Card 3

This replacement display module is compatible with APC NetShelter Rack PDU Advanced Gen 2,Gen 1 (11K and 10K Series), and contains a Network Management Card 3 (the next gen APC NMC). NetShelter Rack PDU Advanced provides reliable power distribution to IT equipment within server and, or networking racks, Ideal for high density applications. The NMC platform is independently certified to the IEC 62443 4 2 SL2 standard, and it integrates with EcoStruxure IT and can be accessed and configured via web, SNMP, and command line interface (CLI). Combined with EcoStruxure IT, NMC3 allows IT professionals to monitor sensors and alarms, as well as manage mass firmware upgrades, configuration, or outlet control. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to other PDUs, with a network port sharing (NPS) feature that enables power sharing between Rack PDUs in the cascading group. Two environmental sensor ports allow for optional sensors for environmental monitoring (sold separately). Console Port (micro USB) connects the Rack PDU to your computer for local access to the CLI.

More from the Manufacturer

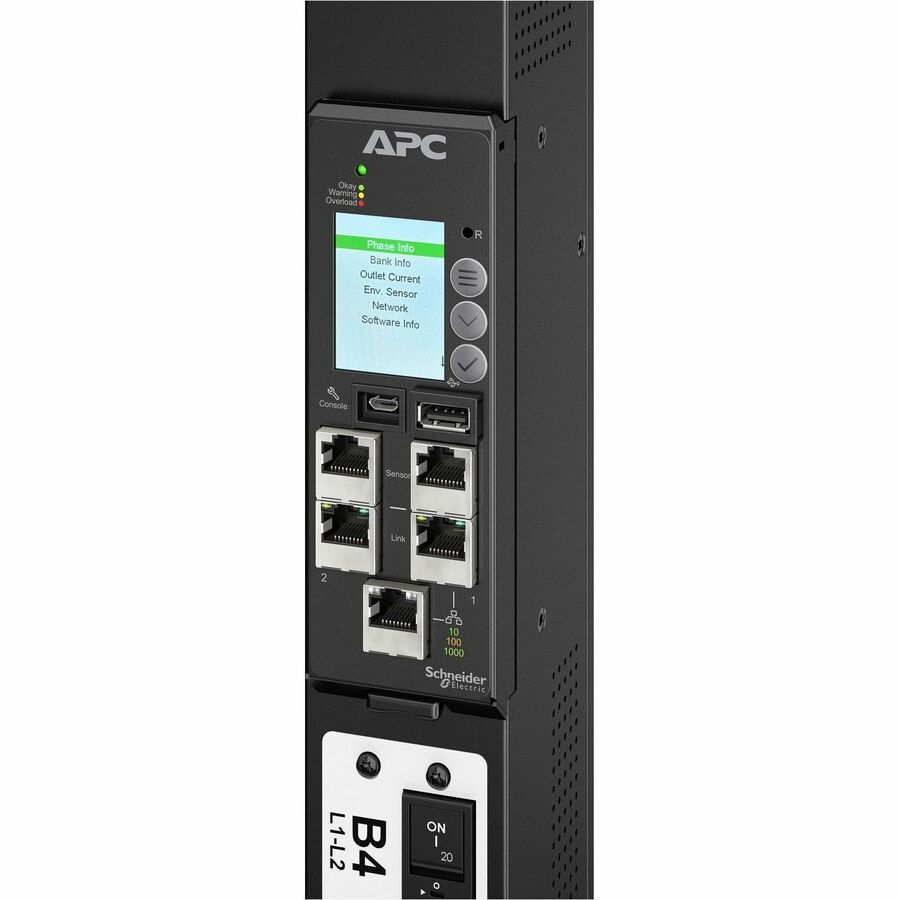

Hot Spots

Display panel

LCD display for easy manual access and control

Display buttons

Main menu, scroll, and select buttons to access options

USB port

Port to download log files to a flash drive

Console port (USB Micro-B)

Connects the Rack PDU to your computer for local access to the command line interface (CLI)

Two environmental sensor ports

Connect up to 2 sensors through 1 Rack PDU — compatible sensors include temperature, humidity, and fluid detection (rope leak)

Link 1 and link 2 ports

Network port sharing (NPS) connects multiple Rack PDUs to one another and enables power sharing between Rack PDUs in a cascading group; access, configure, and manage up to 32 PDUs remotely through one IP address via web and SNMP

1-gigabit Ethernet port

One-gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity

Live Swap Network Management Card 3

Replace the NMC without powering down the PDU

FAQ

Which devices is this NMC3 display module compatible with?

APDU9640NMC3 is a display module with an NMC3 inside and is compatible with APC NetShelter Rack PDU Advanced Gen 2.

What sensors are compatible with this NMC3 display module?

Two environmental sensor ports and up to two sensors can be connected to one Rack PDU.

What types of ports does this NMC3 contain?

This display module with NMC3 contains a one-gigabit Ethernet/network port (10/100/1000). It also has two link ports, one with 10/100/1000 connectivity and one with 10/100 connectivity.

Can I remotely monitor a NetShelter Rack PDU Advanced with NMC3?

Yes, the NMC3 allows you to connect PDUs to EcoStruxure IT for remote monitoring and control, including mass firmware upgrades.

Is NMC3 secure?

The Secure NMC3 System (SNS) by Schneider Electric helps protect your organization by ensuring your connected devices are secure from unknown threats, compliant with changing regulations, and resilient for the entirety of your hardware’s life. The NMC3 platform firmware has received IEC 62443-4-2 certification from TÜV Rheinland; one of the world’s largest and leading testing service providers. Get a 1-year free subscription to SNS with your purchase of an APC NetShelter Rack PDU Advanced with NMC3.
