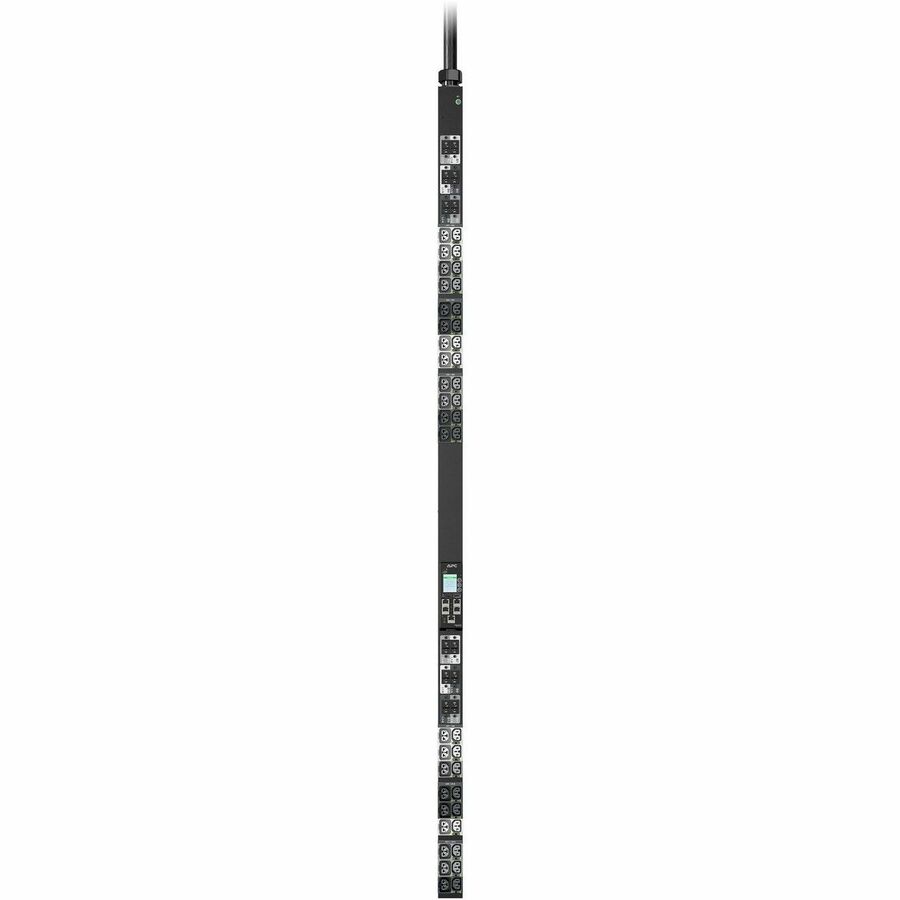

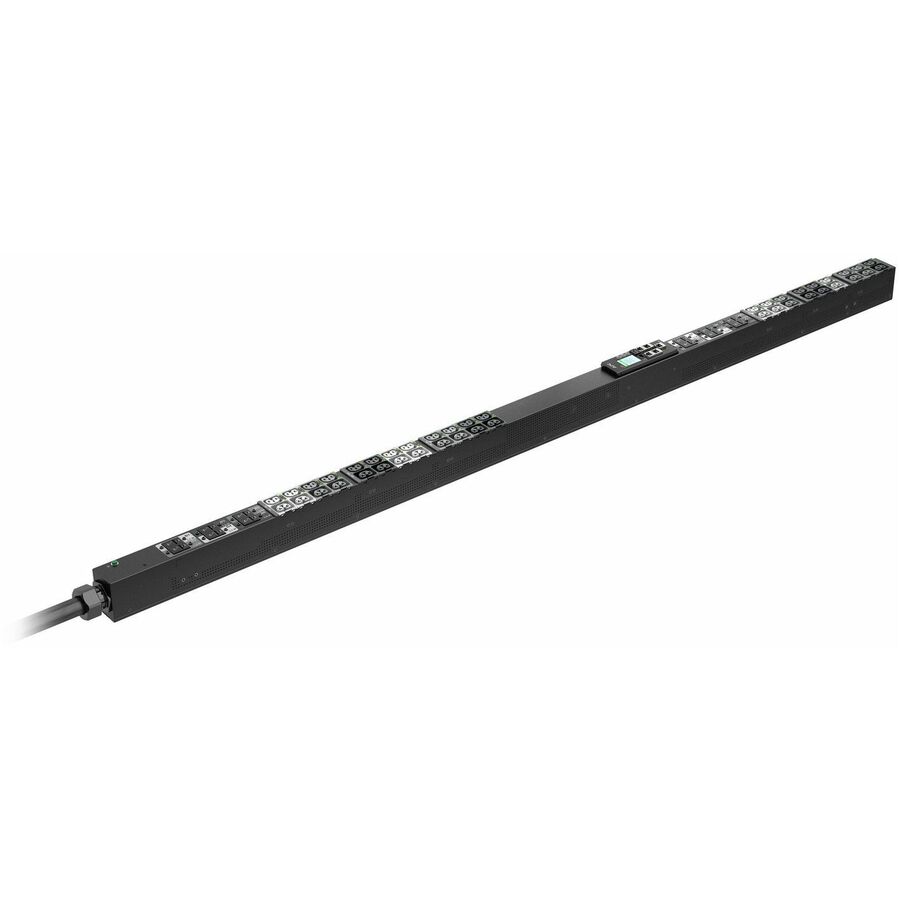

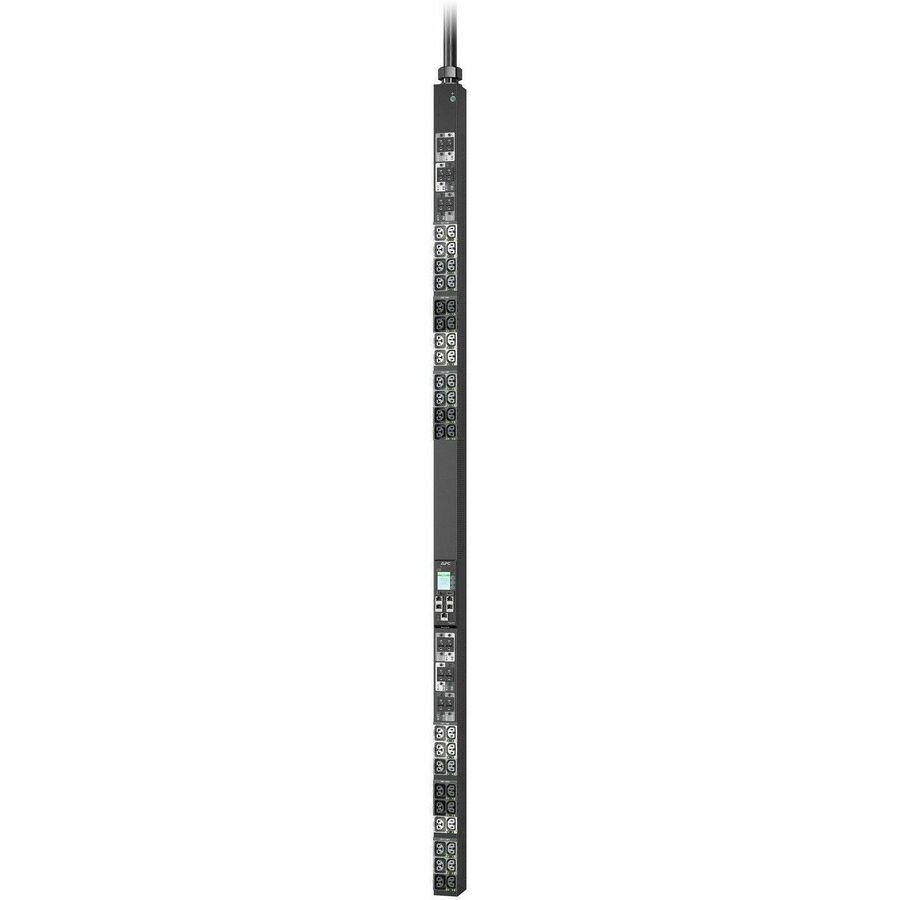

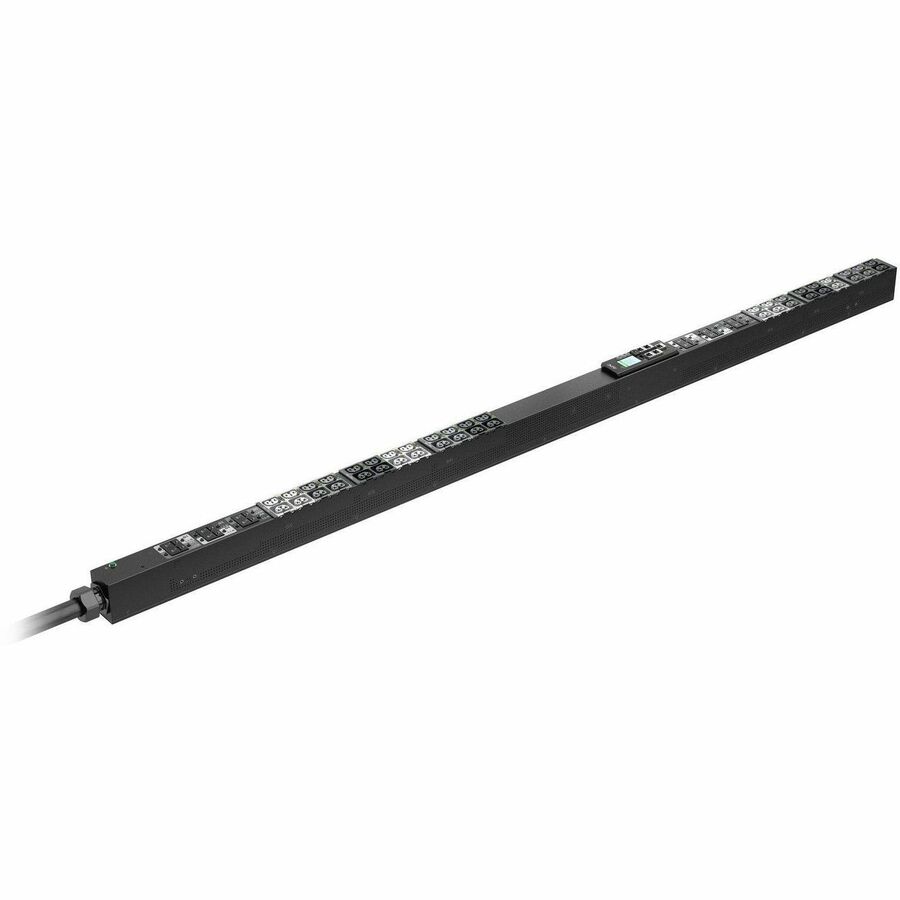

APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet,3Phase, 43.5kW 400V 63A or 34.6kW 415V 60A, 560P6, 42 Outlet

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4 in 1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 42 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10 foot (3 meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in todays high density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This modelâ??s input power cord is IEC-309 60 A 3P+N+PE and features 21 count C13/C15/C19/C21 combo outlets and 21 count C13/C15 outlets.

More from the Manufacturer

Unparalleled agility

Designed for high density

Better connectivity, enhanced security

Hot Spots

Ratings for worldwide use

Certifications to allow for one PDU to be used globally: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM

1% metering accuracy

1% metering accuracy for reliable billing, capacity planning, and alarm monitoring

Hydraulic magnetic circuit breakers

Provide increased availability by maintaining trip current over a wide temperature range

Circuit breaker monitoring

Allows total load across each circuit breaker to be monitored for potential overloads and can be configured to provide notification in the event of a circuit breaker trip

More power, more outlets, less space

Support up to 48 outlets and 43.5kW (34.6kW de-rated for North America) in single- or 3-phase options

4-in-1outlets

Easily match plugs to outlets: each PDU features outlets where half can accommodate C13/C19 and C15/C21 in a versatile 4-in-1 combination

Color-coded outlets & alternating phases

Breakers and input phases are clearly labeled and color coded to reduce errors and to promote load balancing and cord management

60 C operating temperature

Rated and approved to operate up to 60 C (140 F) at full load, ensuring reliability and availability even in today’s high-density deployments

Flexible mounting

Standard vertical and side-mount options

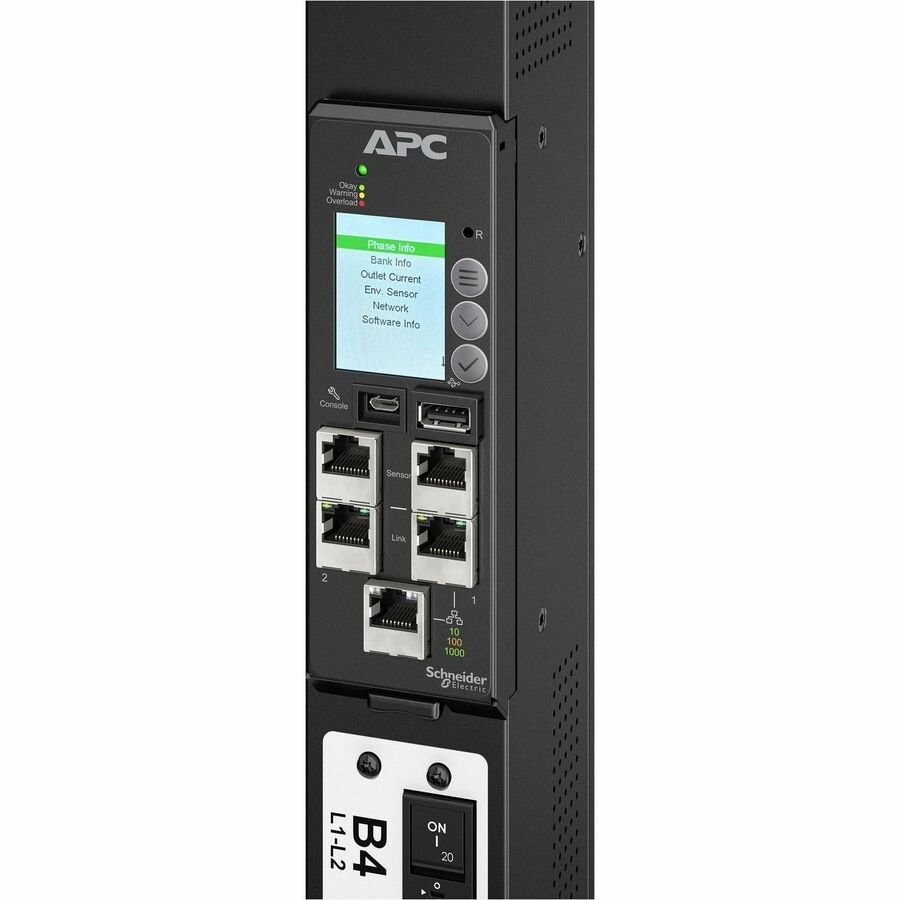

10

USB port

Port to download log files to a flash drive

11

Console port (USB Micro-B)

Connects the Rack PDU to your computer for local access to the command line interface (CLI)

12

Dual environment sensor ports

Connect up to 2 sensors through 1 rack PDU — critical for AI and high densities

13

Link 1 and link 2 ports

Network port sharing (NPS) connects multiple Rack PDUs to one another and enables power sharing between Rack PDUs in a cascading group; access, configure, and manage up to 32 PDUs remotely through one IP address via web and SNMP

14

1-gigabit Ethernet port

One-gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity across all assets in the data center

FAQ

What kind of sensors are compatible with the Rack PDU Advanced?

Two environmental sensor ports and up to 2 sensors can be connected to one Rack PDU.

Are special mounting brackets required to purchase separately to install the Rack PDU Advanced in a NetShelter Rack? How about third-party racks?

No, the Rack PDU Advanced will install toollessly in an APC NetShelter 42U and above height rack enclosure. Mounting pegs are provided for installation. The pegs will work in most rack enclosure designs. The mounting pegs consist of a screw and washer. You can use a Phillips head screwdriver to change the location of the mounting pegs.

Are custom orders for Rack PDU Advanced available?

Yes, custom orders are available upon request. Speak with a sales representative to request to customize a PDU to your specific needs.

What is the standard warranty of the Rack PDU Advanced?

The standard factory warranty is 3 years repair or replace. Additional warranties can be purchased for up to a 6 years total.

Are these PDUs remotely monitored and managed?

Yes, these PDUs can be coupled with Schneider Electric’s EcoStruxure IT data center infrastructure management software for remote monitoring and management.
