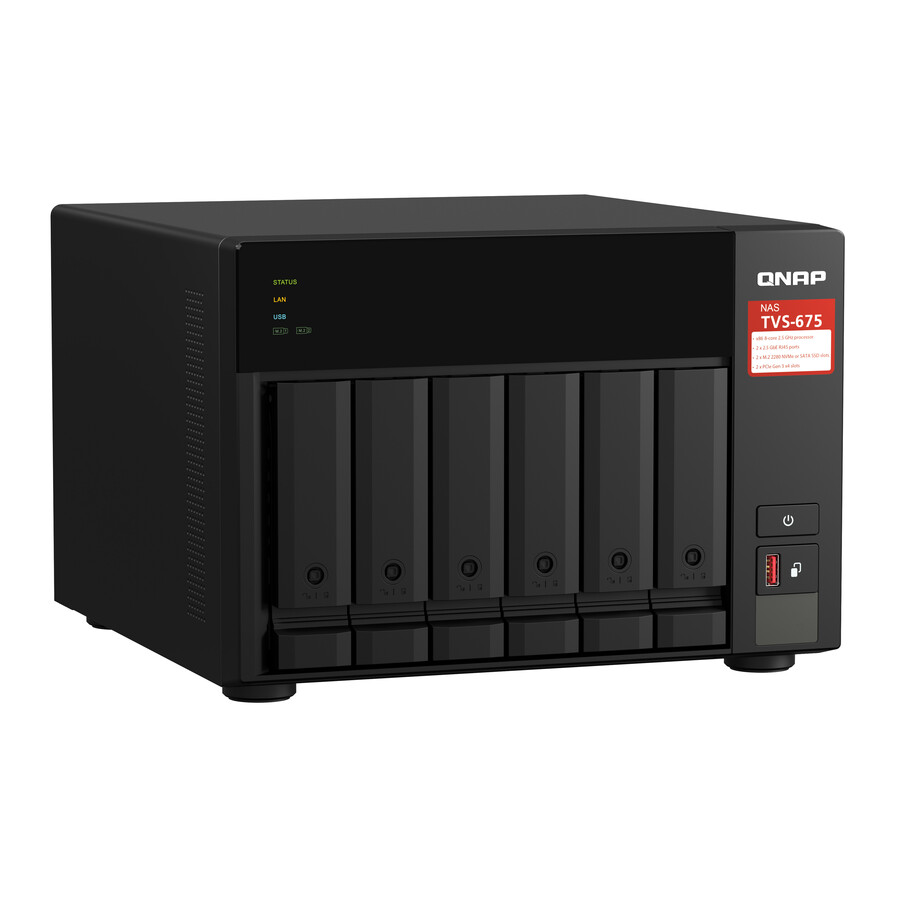

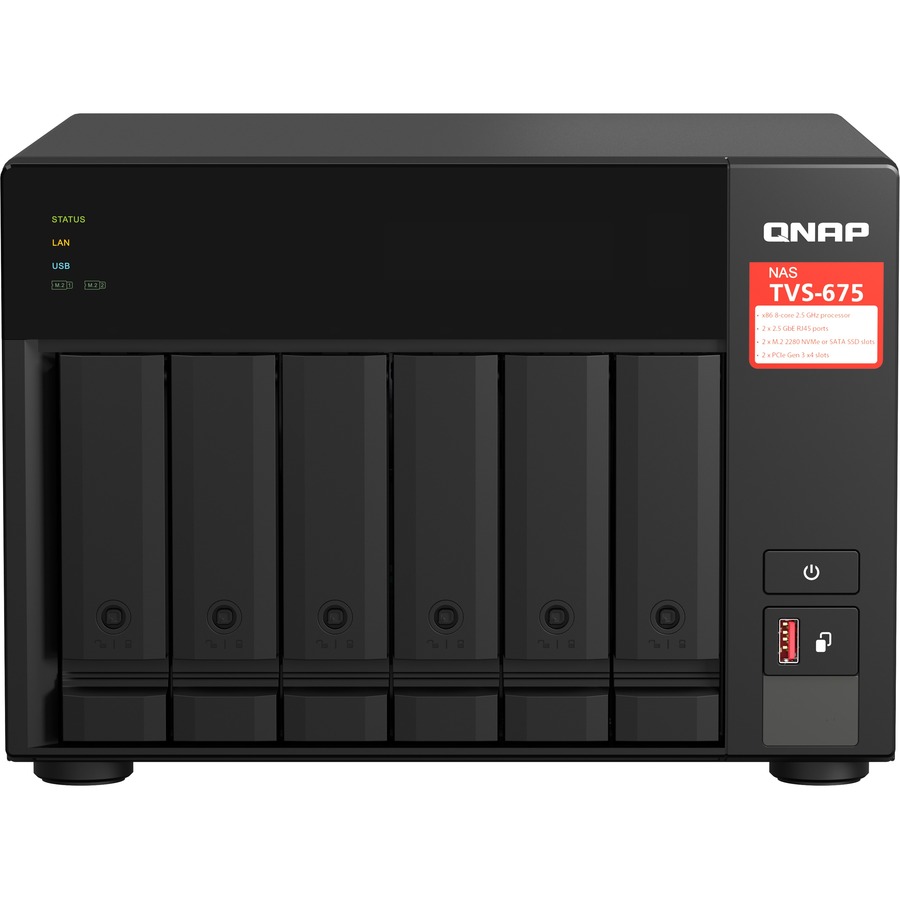

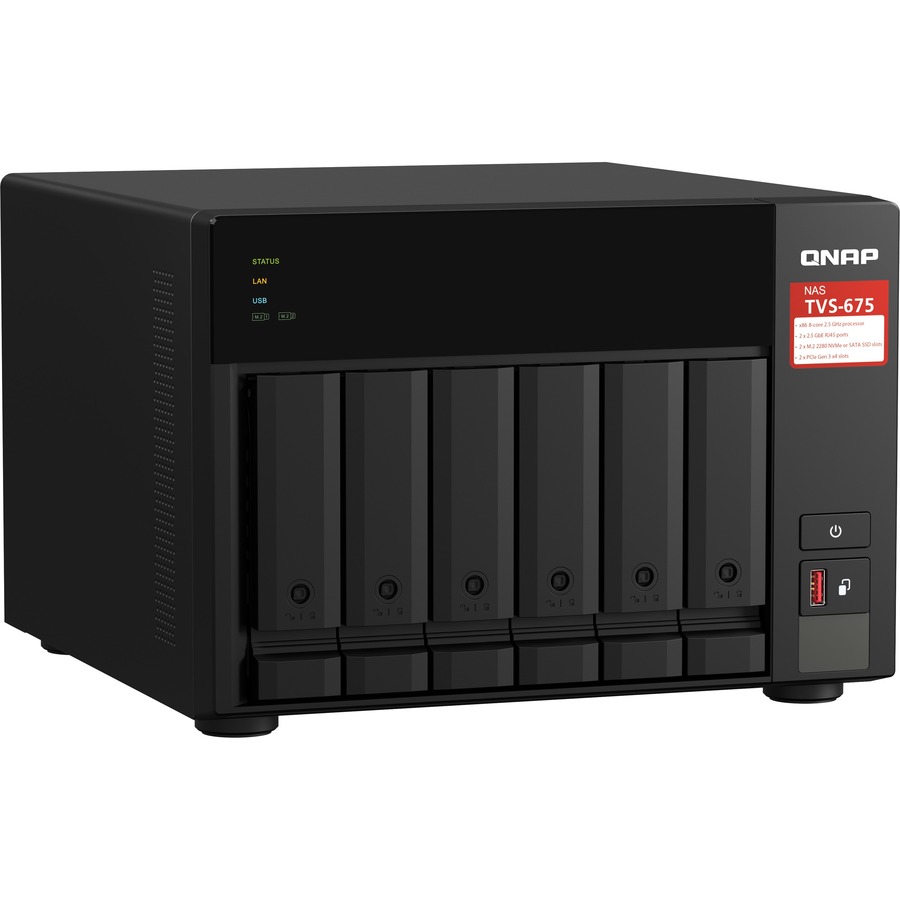

QNAP TVS-675 SAN/NAS Storage System
Zhaoxin KX-U6580 Octa-core (8 Core) 2.50 GHz - 6 x HDD Supported - 6 x SSD Supported - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - 6 x Total Bays - 6 x 2.5"/3.5" Bay - 2 x Total Slot(s) - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - Network (RJ-45) - QTS/QuTS hero - LDAP, HTTPS, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, ... - 5 GB Flash Memory Capacity - Tower
- SKU
- TVS-675-8G-US
- Category
- Storage Arrays & Servers
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TVS-675-8G-US
- Category
- Storage Arrays & Servers
Overview
TVS-675
Cost-efficient 8-core 2.5GbE NAS, supporting M.2 SATA/NVMe SSD caching, PCIe expansion, and 4K HDMI display
(Supports QTS or QuTS hero operating system)
Powered by the x86 architecture Zhaoxin KaiXian KX-U6580 8-core processor, the TVS-675 provides businesses with a modern 2.5GbE NAS solution to tackle everyday tasks like file backup/restore, and to boost team collaboration with higher productivity. Besides hardware advantages with built-in M.2 SSD slots for cache acceleration and PCIe expansion, the TVS-675 supports abundant business and media applications (including snapshot protection, virtual machines, cloud storage gateways, 4K HDMI display, and real-time transcoding) alongside expandable storage capacity and install-on-demand apps, making it a cost-effective and reliable data storage and media NAS.
• Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE ports.
• Install high-performance M.2 PCIe NVMe Gen 3 x1 SSDs or economical SATA 6Gb/s SSDs in the dedicated SSD slots for caching with improved random I/O or high-performance storage pools.
• Two PCIe Gen 3 slots allow for installing 2.5/5/10GbE adapters, QM2 cards, or QXP storage expansion cards.
• 4K media playback and real-time transcoding; directly output videos to an HDMI 2.0 display (up to 4K @60Hz).
• Supports storage for virtualization; hosts multiple virtual machines and containers to run a wide range of applications on one NAS device.
• Flexibly scale the total storage capacity to match business growth by connecting QNAP expansion enclosures.
Highlights
- SAN/NAS Storage System is the single answer to all your desired storage needs
- Connect an expansion unit, and expand up to 6 drives for additional storage on the go
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for desired storage efficiency with accuracy and precision
- Tower form factor requires minimal configuration and can be easily customized and upgraded to ensure maximum efficiency
- 2.5 Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- QTS/QuTS hero OS makes you more productive and creative
Specifications
| Package Contents |
|
|---|---|
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | TVS-675-8G-US |
| Protocols | LDAP, HTTPS, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, SNMPv2, IPv4, WEBDAV, Telnet, SSL, iSCSI, TLS, NFS, TFTP, HTTP, FXP, DDNS, IPv6, PPTP |
| Limited Warranty | 3 Year |
| Standard Memory | 8 GB |
| Weight (Approximate) | 13.67 lb |
| Operating System | QTS/QuTS hero |
| Form Factor | Tower |
| Manufacturer | QNAP Systems |
| Product Model | TVS-675 |
| Product Name | TVS-675 SAN/NAS Storage System |
| Processor Speed | 2.50 GHz |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | Serial ATA/600 |
| Brand Name | QNAP |
| Expansion Slot Type | PCI Express 3.0 x4 |
| Memory Technology | DDR4 SDRAM |
| Processor Model | KX-U6580 |
| Height | 7.4" |
| Width | 10.4" |
| Depth | 11.1" |
| Processor Core | Octa-core (8 Core) |
| Flash Memory Capacity | 5 GB |
| Processor Manufacturer | Zhaoxin |
| RAID Supported | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Total Expansion Bays | 6 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 250 W |
| Total Number of USB Ports | 4 |
| Number of Hard Drives Supported | 6 |
| Number of Solid State Drive Supported | 6 |
| Number of 2.5"/3.5" Bays | 6 |
| Total Number of Expansion Slots | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 2 |
