QNAP TS-I410X-8G SAN/NAS Storage System
Intel Atom x6425E Quad-core (4 Core) 2 GHz - 4 x HDD Supported - 4 x SSD Supported - 8 GB RAM - Serial ATA/600 Controller - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - 4 x Total Bays - 4 x 2.5" Bay - 10 Gigabit Ethernet - HDMI - 4 USB Port(s) - Network (RJ-45) - QTS 5.0.0 - TFTP, SFTP, FTP, FXP, AFP, CIFS/SMB, SSH, Telnet, HTTP, TLS, NFS, ... - 4 GB Flash Memory Capacity - Tower
- SKU
- TS-I410X-8G-US
- Category
- Storage Arrays & Servers
$1,262.54
Back ordered — ships when restocked.
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TS-I410X-8G-US
- Category
- Storage Arrays & Servers
Overview

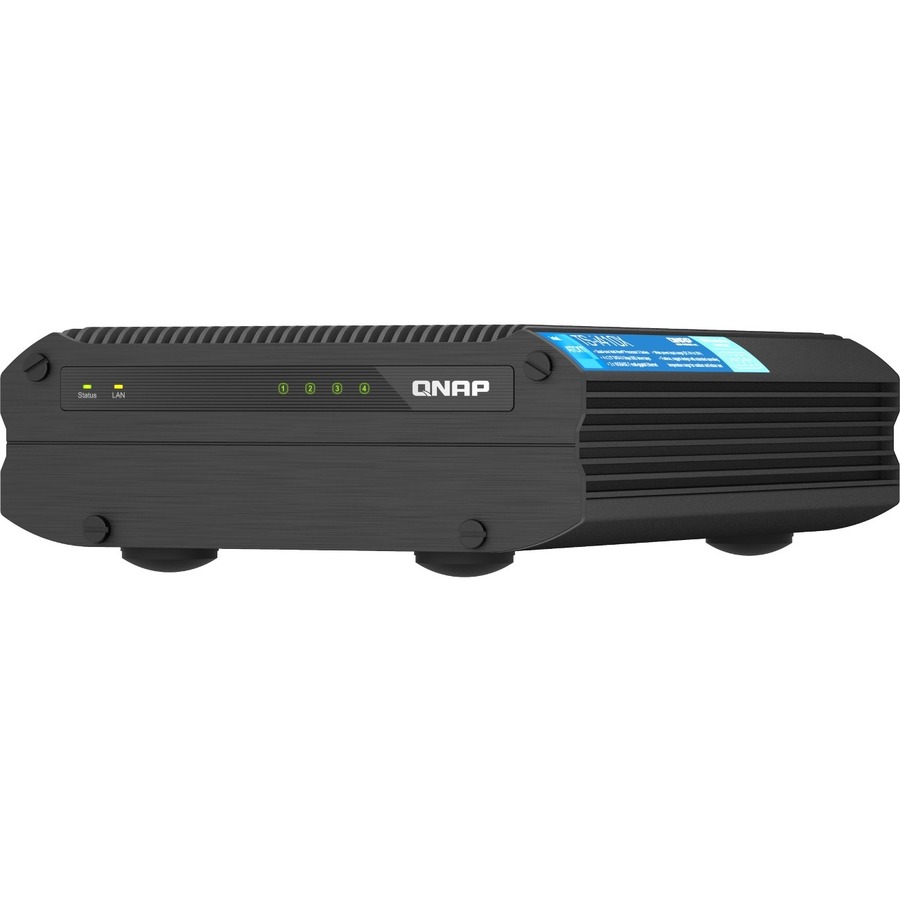

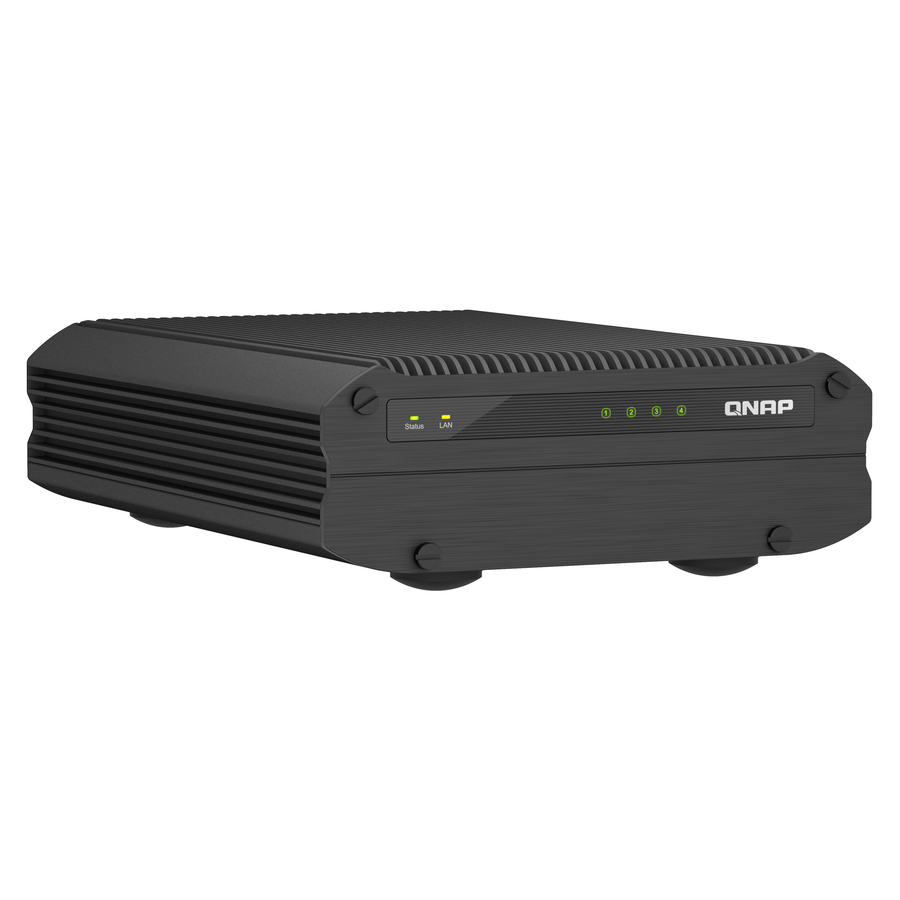

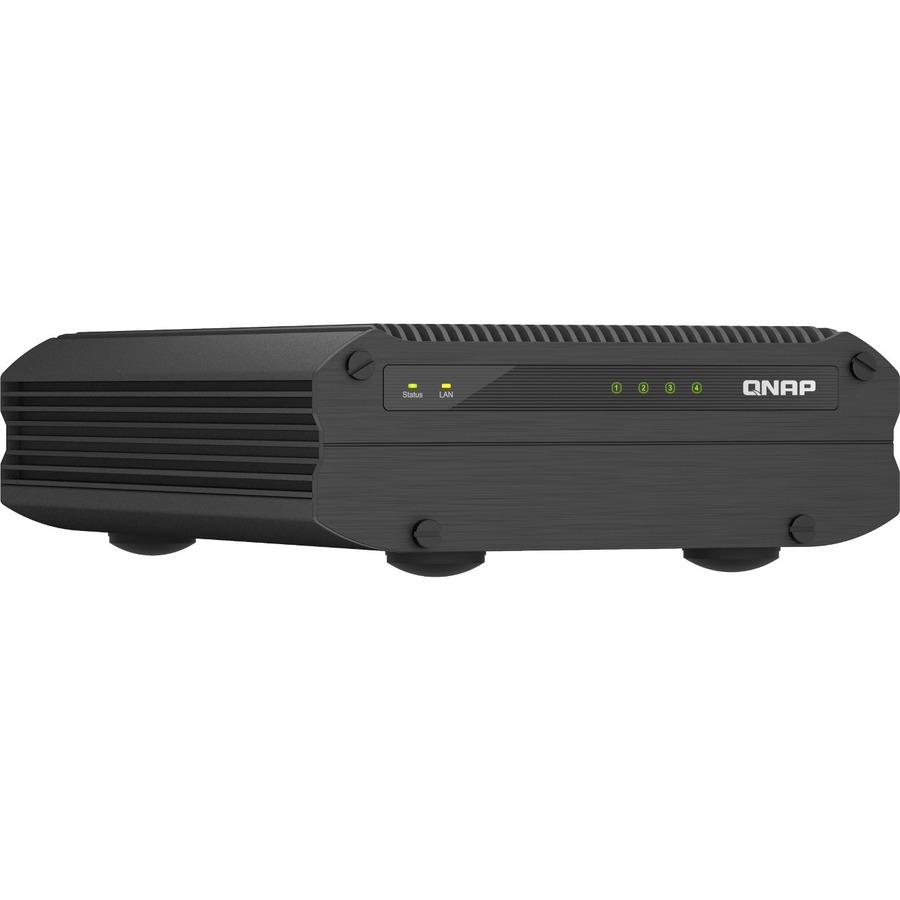

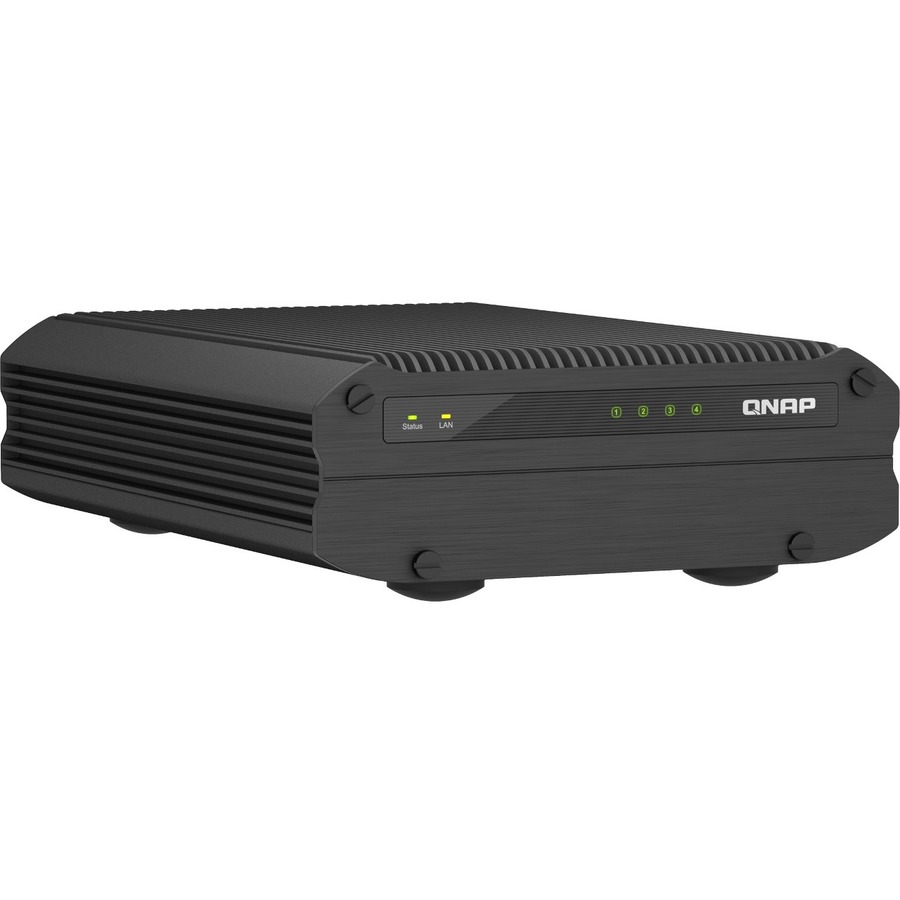

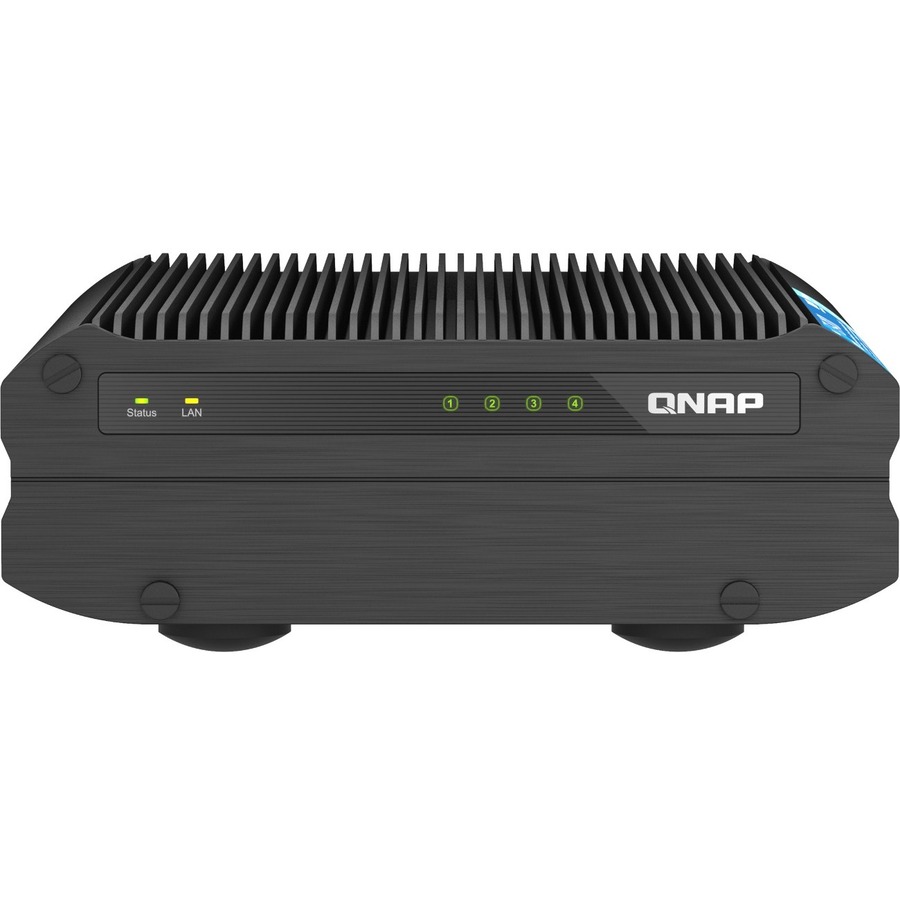

With a fanless design and rock-solid chassis, the TS-i410X industrial grade NAS is designed for harsh environments. The TS-i410X can operate in temperatures of -40 ~ 70 Celsius (-40°F ~ 158°F) while its 9V ~ 36V DC wide-range power supply is ideal for factories, warehouses, transportation, and other rugged operating environments.
• 10GbE connectivity Two 10GBASE-T/NBASE-T RJ45 ports accelerate virtualization tasks, high speed backup/recovery, file sharing, and video transmission.
• 4K HDMI output Supports 4K playback and real-time transcoding.
• Optimized SSD performance and lifespan Install SATA 6Gb/s SSDs and activate SSD caching for increased IOPS performance.
• Virtualization applications Host multiple virtual machines and containers to run a wide range of applications and microservices.
• Data backup and recovery Protect PC/Macs, virtual machines, software containers, and cloud data.
• Hybrid cloud applications Cloud storage gateways realize hybrid cloud applications by working with the cache space reserved on NAS.
Available Models | TS-i410X-8G
• Intel® Atom® x6425E 4-core/4-thread processor, burst up to 3.0 GHz, 8 GB on board (non-expandable)
Quad cores up to 3.0 GHz with AES-NI accelerated encryption
The TS-i410X is powered by Intel® Atom® x6425E quad-core processor (burst up to 3.0 GHz) and equipped with 8 GB dual-channel memory. With hardware-accelerated AES-NI encryption, the TS-i410X also provides unmatched encryption performance while ensuring the safety of sensitive business data stored in the NAS. The TS-i410X has four 2.5-inch SATA 6Gb/s SSD slots for allocating SSDs (industrial SSDs are recommended) to greatly boost IOPS to meet the performance requirements of demanding applications.
Industrial-grade hardened hardware design with 9V ~ 36V DC wide-range power supply

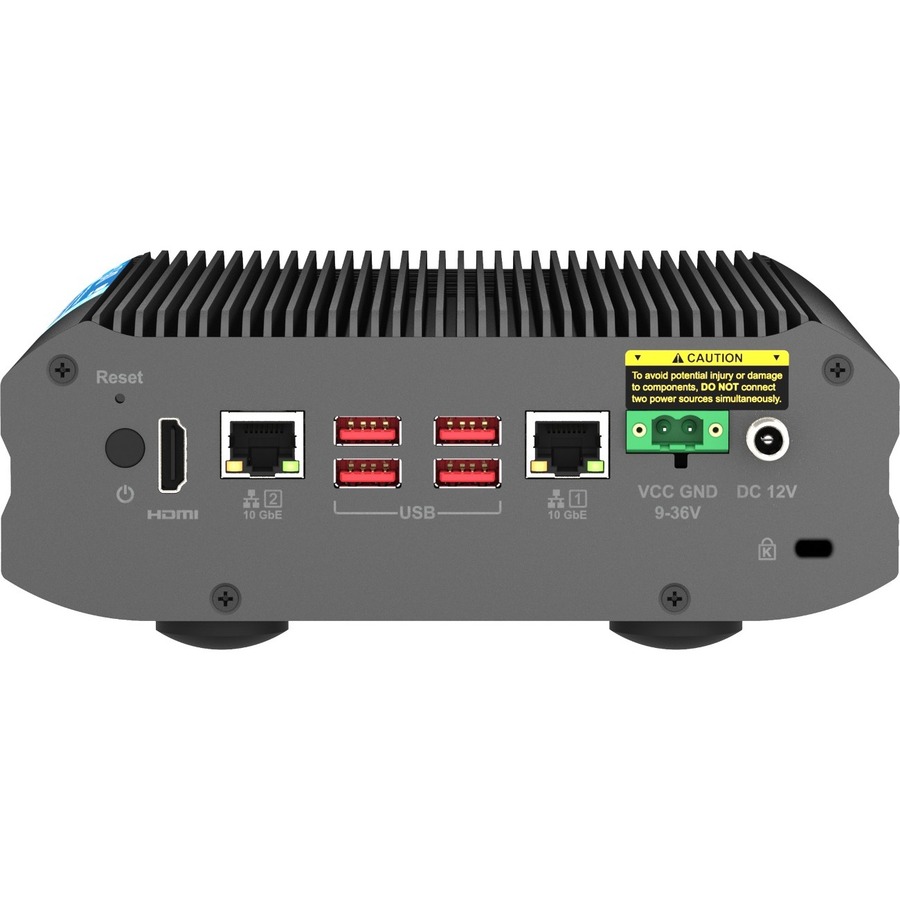

With a fanless design and rock-solid chassis and compliant with the military-grade MIL-STD-810H the TS-i410X can operate in -40 ~ 70 Celsius (-40°F ~ 158°F) environments. It can be used as a set-top box, or used with the optional VESA 75 wall-mount to provide installation flexibility. With the 9V ~ 36V DC wide-range power supply, the TS-i410X is suitable for industrial and transportation applications with a variety of input voltage requirements.
Use with industrial wide temperature SSDs
When using industrial wide temperature SSDs, adjust the disk warning setting to 85°C (185°F) in the Storage & Snapshots to match the upper limit of SSD operating temperature. (The default temperature is 70°C for SSDs)
Highlights
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Can hold 4 HDDs simultaneously
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- Enjoy quick web browsing and efficiently deal with your crazy work weeks or playtime marathons with the Intel Atom 2 ghz processor that kicks execution into high gear
- Tower form factor requires minimal configuration and can be easily customized and upgraded to ensure maximum efficiency
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- It's qts 5.0.0 operating system offers powerful platform to efficiently run routine applications
Specifications
| Additional Warranty Information | The TS-i410X is backed by a 3-year warranty at no additional cost. You can also purchase a warranty extension that extends your warranty coverage up to 5 years. |
|---|---|
| Package Contents |
|
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | TS-I410X-8G-US |
| Protocols | TFTP, SFTP, FTP, FXP, AFP, CIFS/SMB, SSH, Telnet, HTTP, TLS, NFS, iSCSI, NFSv3, NFSv4, SNMP, SNMPv2, SNMPv3, DHCP, DDNS, HTTPS, WEBDAV, LDAP |
| Limited Warranty | 3 Year |
| Standard Memory | 8 GB |
| Weight (Approximate) | 5.60 lb |
| Operating System | QTS 5.0.0 |
| Form Factor | Tower |
| Manufacturer | QNAP Systems |
| Product Model | TS-I410X-8G |
| Product Name | TS-I410X-8G SAN/NAS Storage System |
| Processor Speed | 2 GHz |
| Processor Type | Atom |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | Serial ATA/600 |
| Brand Name | QNAP |
| Processor Model | x6425E |
| Height | 2.6" |
| Width | 7.1" |
| Depth | 10" |
| Processor Core | Quad-core (4 Core) |
| Flash Memory Capacity | 4 GB |
| Processor Manufacturer | Intel |
| RAID Supported | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| Number of Total Expansion Bays | 4 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 90 W |
| Total Number of USB Ports | 4 |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | No |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | No |
| Number of 2.5" Bays | 4 |
| Number of USB 3.2 Gen 2 Ports | 4 |
