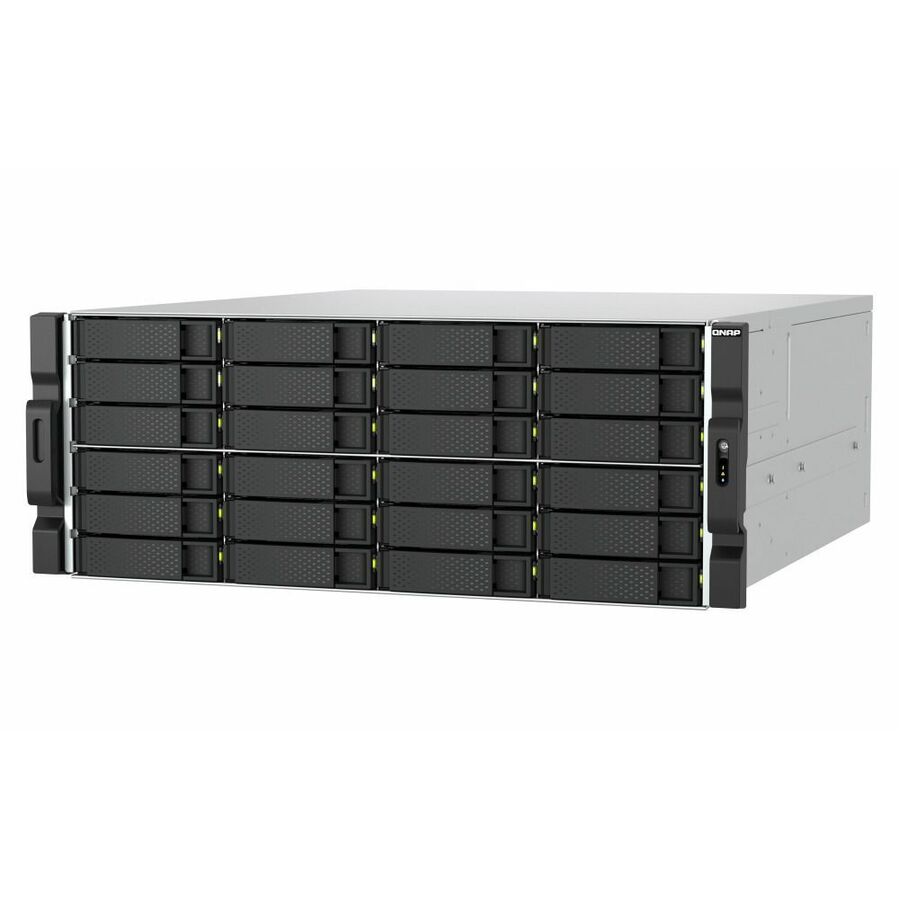

QNAP TS-H2477AXU-RP-R7-32G-US SAN/NAS Storage System

Enterprise-Grade High-Density Storage for Maximum Space Efficiency

Offers 24-bay HDD capacity with support for M.2 SSDs and dual power supplies, optimizing both space usage and performance. Ideal for centralized backup, cold data archiving, and media asset consolidation, helping enterprises build a stable and efficient storage foundation on-premises.

Powerful Multi-Core Performance for Enterprise Workloads

Engineered for enterprise-grade multitasking and high-performance applications, the TS-h2477AXU-RP ensures stable and seamless computing for virtualization, parallel workloads, and data-intensive tasks.

Processor

AMD Ryzen? 7 PRO 7000 series processor features 8 cores and 16 threads, with speeds up to 5.3 GHz. Integrated AMD Radeon? Graphics provides hardware-accelerated graphics processing.

Memory

Equipped with DDR5 non-ECC memory, expandable to 192 GB (4 x 48 GB).

Flexible Expansion to Petabyte-Scale Storage

The TS-h2477AXU-RP, when equipped with 24 × 30 TB drives, provides up to 600 TB of storage capacity. You can further scale by connecting multiple high-performance QNAP JBOD expansion units that support SAS or SATA drives. For example, connecting 8 × 24-bay PCIe JBOD TL-R2400PES-RP units adds 192 additional drives, eliminating your storage capacity concerns.

Built-in 10GbE & 2.5GbE, upgradeable to 25GbE | Supports Port Trunking for redundant connections

Dual 10GbE and 2.5GbE ports with optional 25GbE expansion. Aggregates bandwidth and ensures network fault tolerance for stable data transfer under load or failure.

Multi-user collaboration with network switch

Upgrade with a 25GbE expansion card and high-speed switch for seamless multimedia collaboration, enabling efficient file access and real-time editing across multiple workstations.

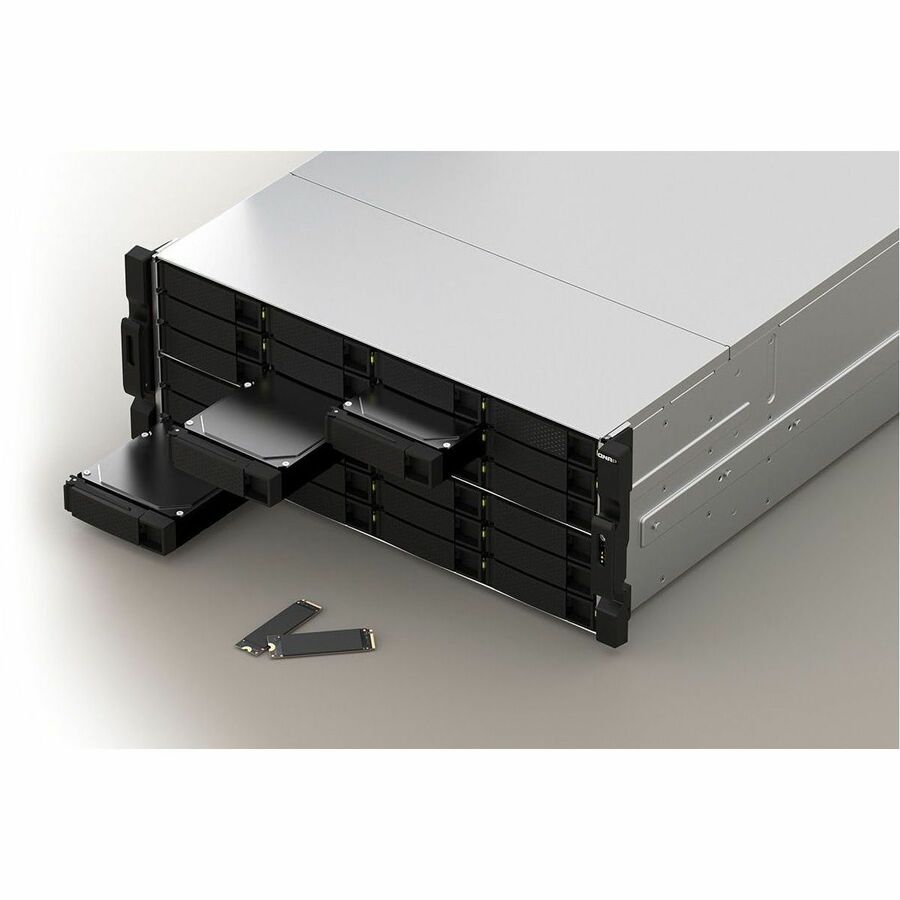

M.2 PCIe Gen 5 slots enable flexible upgrades

The TS-h2477AXU-RP features two M.2 2280 PCIe Gen 5 slots which support NVMe SSDs for exceptional read/write speeds. PCIe Gen 5 is backwards compatible with PCIe Gen 4 and Gen 3, providing flexible storage performance and expansion options.

SSD Caching or Storage Pool Configuration

Configure SSDs as cache drives or create M.2 NVMe SSD storage pools to accelerate intensive data access and deliver blazing-fast performance.

Power Failure Protection

Add M.2 SSDs to enable ZIL power failure protection, ensuring that the NAS can continue completing unfinished data writes after power outage followed by a power restoration, and preventing data corruption while modifying data.
