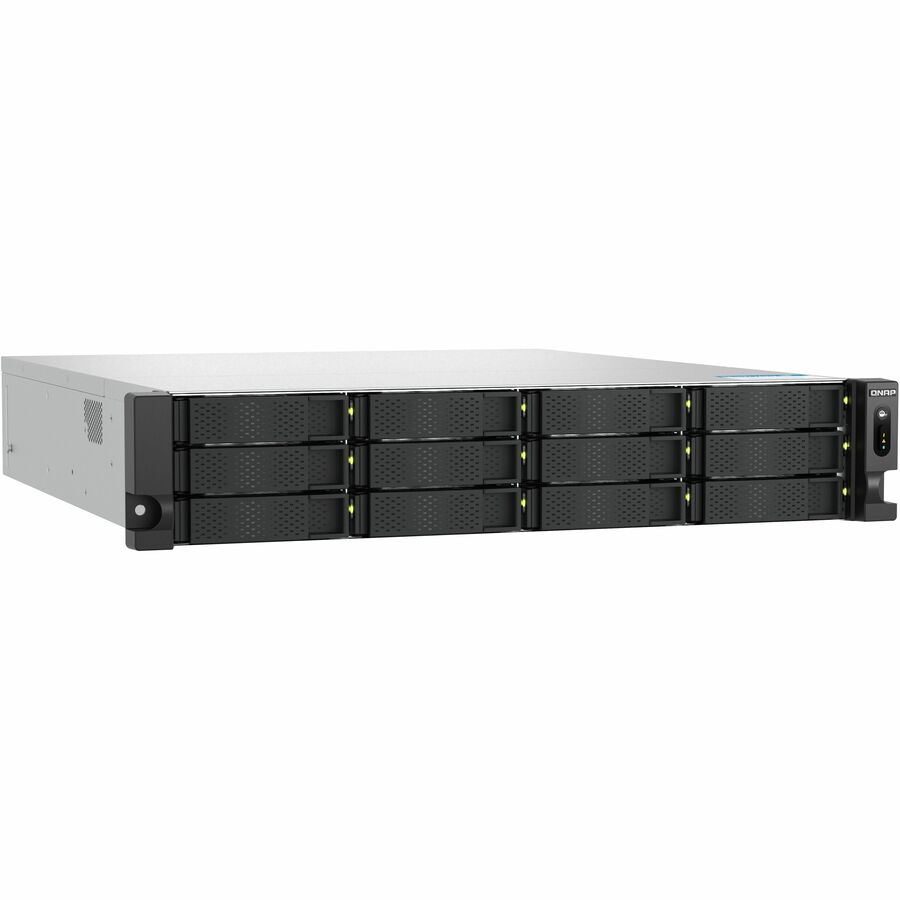

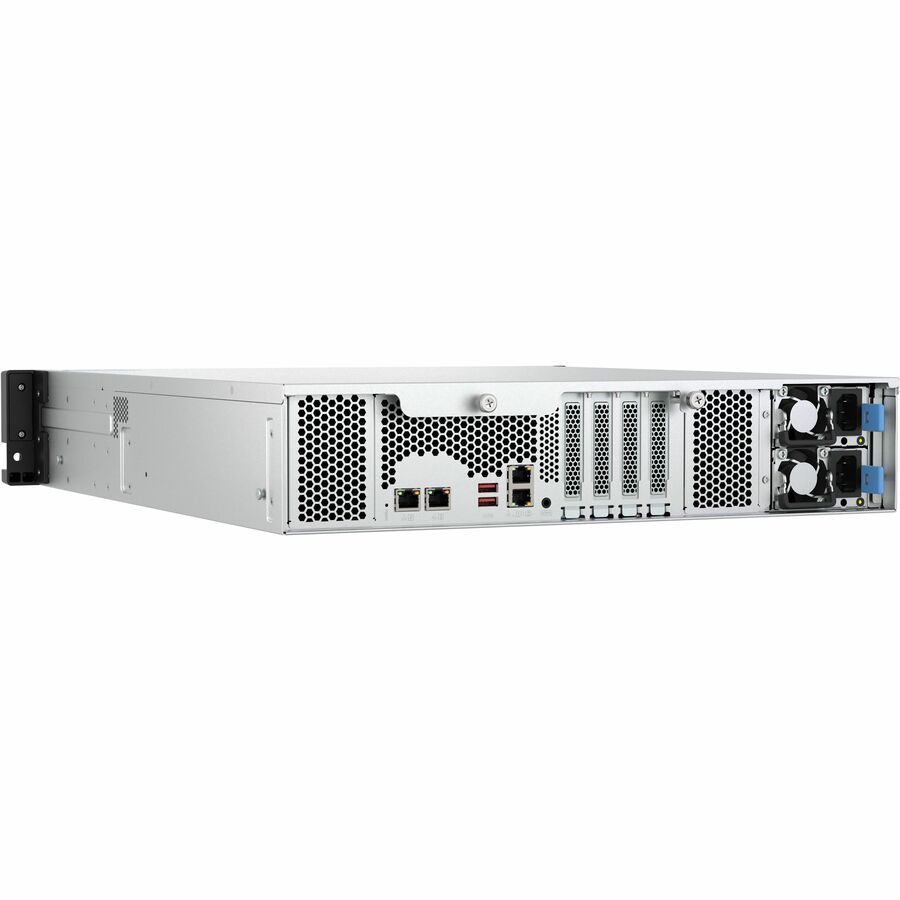

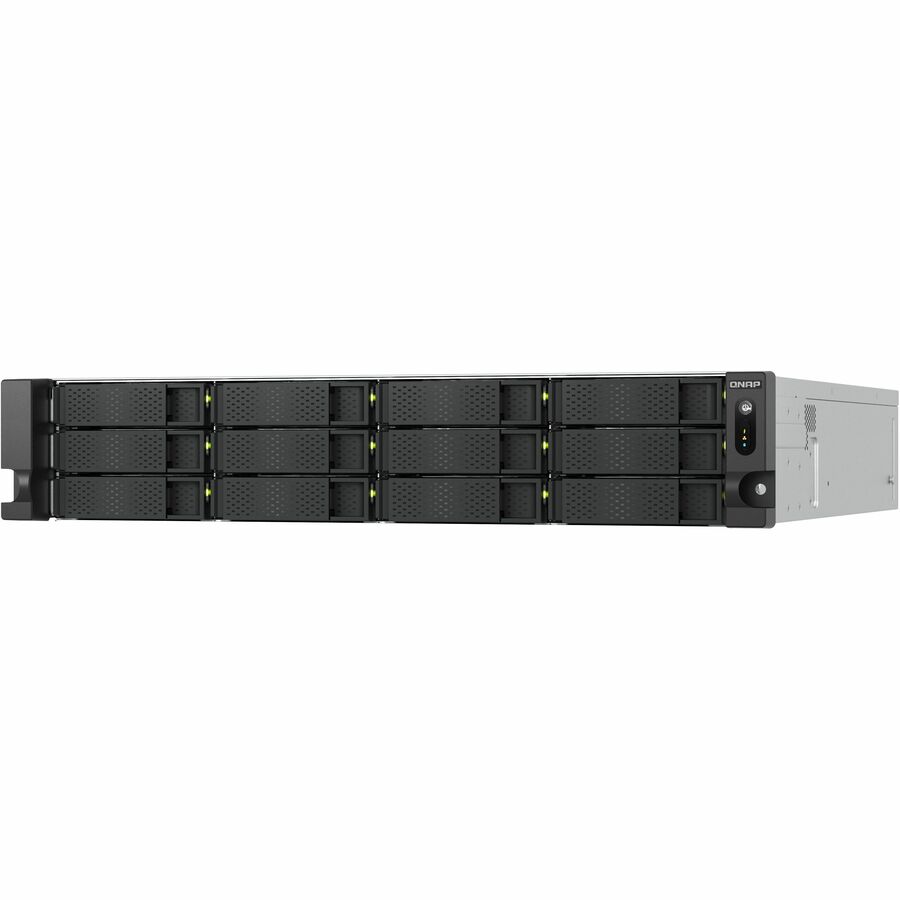

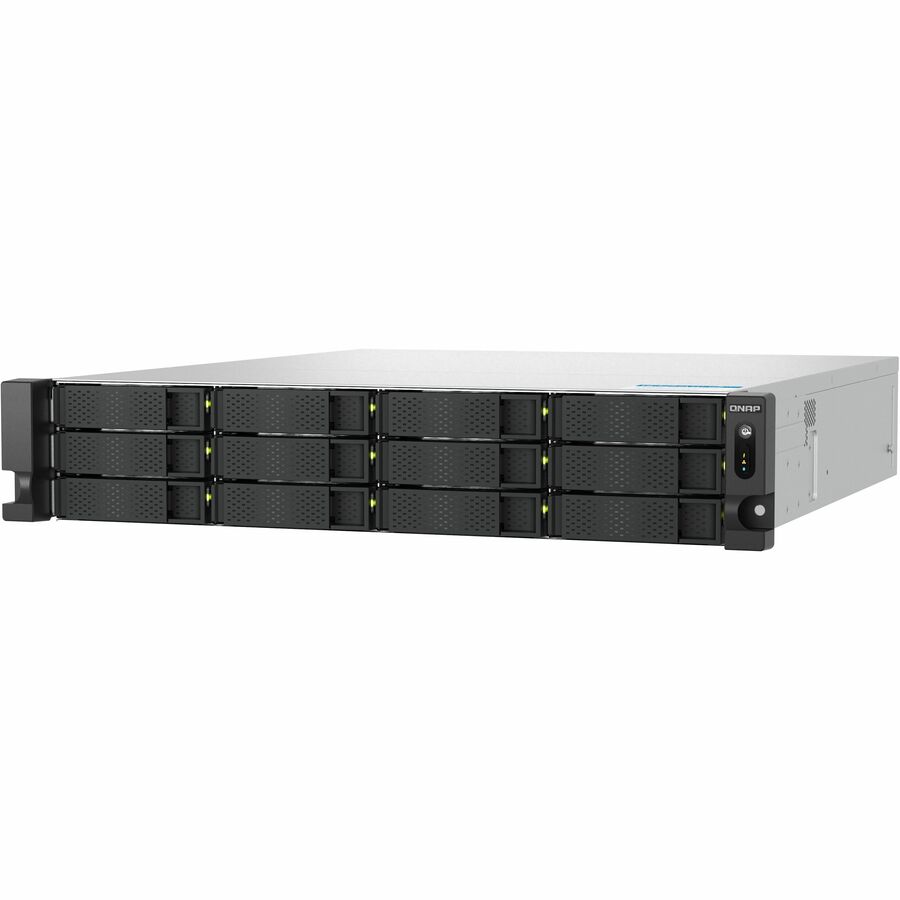

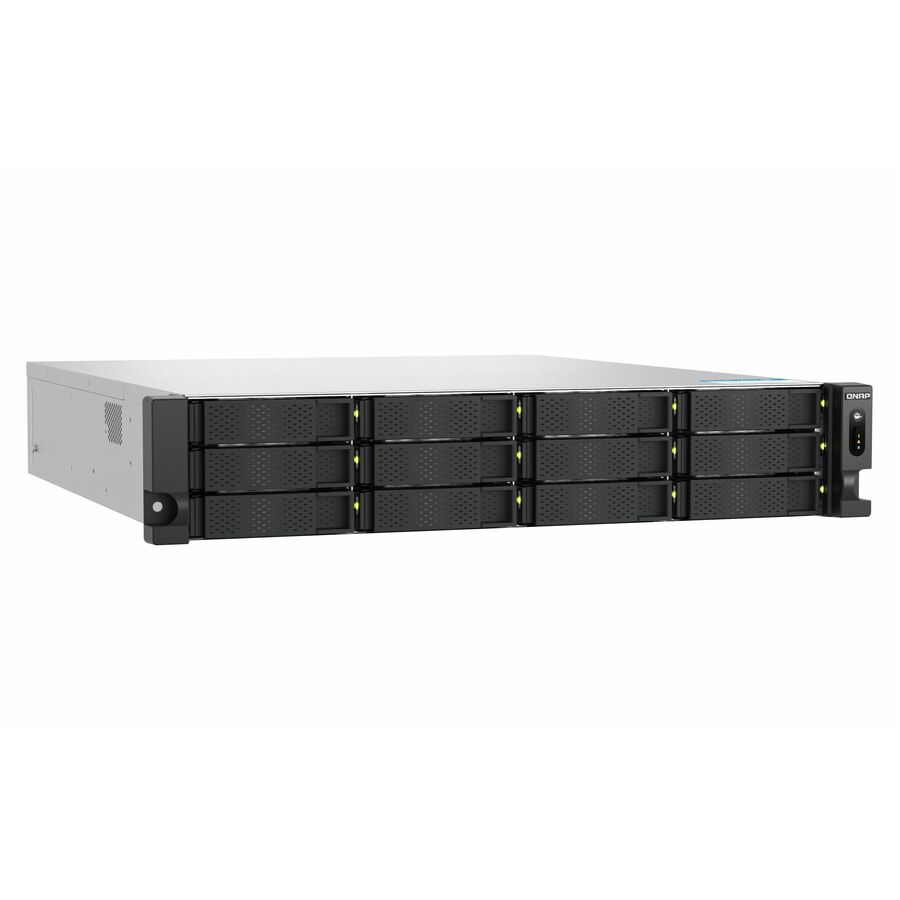

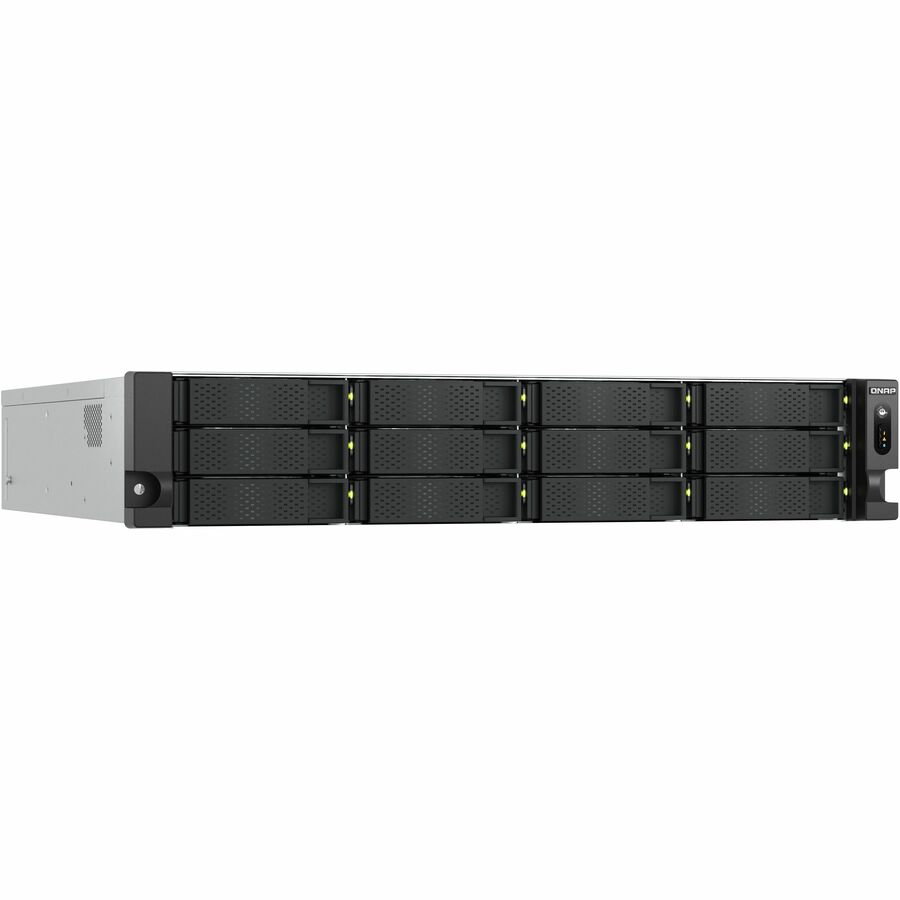

QNAP TS-h1277AXU-RP-R5-16G NAS Storage System

TS-h1277AXU-RP | Experience exceptional enterprise performance with the power of AMD Ryzen? 7000 Series processors, DDR5, and M.2 PCIe Gen 5

Powered by AMD Ryzen? 7000 Series processors based on the cutting-edge AMD socket AM5 platform, the ZFS-based TS-h1277AXU-RP storage and backup solution unleashes superb performance and enterprise-level potential. With a revolutionary multi-core processor, DDR5 RAM, M.2 PCIe Gen 5, and redundant power supplies, the TS-h1277AXU-RP delivers excellent performance, ultra-large bandwidth, and trusted reliability for performance-demanding Tier 2 storage, virtualization, 4K video editing, and PB-level storage applications.

DDR5 RAM

• Supports up to 128GB high-performance and low power consumption DDR5 RAM for heavy workloads (ECC RAM is also supported).

Dual M.2 PCIe Gen 5 slots

• Install M.2 NVMe SSDs for SSD caching acceleration. PCIe Gen 5 is backward compatible with PCIe Gen 4 / PCIe Gen 3 for flexible deployment.

2.5GbE and 10GbE as standard

• Two 2.5GbE and two 10GbE ports accelerate virtualization, storage centers, and large file transfer.

PCIe Gen 4 expandability

• Three PCIe Gen 4 slots provide diverse expandability by installing 25GbE cards, SAS storage expansion cards, or Fibre Channel cards.

Petabyte-scale storage

• Connect up to eight 24-bay TL-R2400PES-RP JBODs to attain PB-level storage capacity of 204 disks.

Long-term supply

• The TS-h1277AXU-RP will be available and supported by QNAP for an extended period, up to 2030.

Unmatched hardware design and high performance

The TS-h1277AXU-RP features outstanding hardware and expandable architecture, enabling optimal performance and flexibility to meet diverse application requirements.

M.2 PCIe Gen 5 ultra-fast transfer speed

The TS-h1277AXU-RP comes with two M.2 2280 PCIe Gen 5 slots that allow for installing NVMe SSDs (including WD®, Micron®, Seagate®, Kingston®) to boost NAS performance. PCIe Gen 5 is backwards compatible with PCIe Gen 4 / PCIe Gen 3 for flexible SSD deployment.

SSD caching

Boost IOPS for transferring a huge number of small files by configuring SSD caching with two M.2 SSDs, without occupying any 3.5-inch drive bays.

Power failure protection

Add M.2 SSDs to enable ZIL power failure protection, ensuring that the NAS can continue completing unfinished data writes after power outage followed by a power restoration, and preventing data corruption while modifying data.

High-speed SSD volume

Create M.2 NVMe SSD storage pools to increase intensive data transfer speed with boosted performance.

Abundant I/O capabilities with PCIe Gen 4 expansion

The TS-h1277AXU-RP has three PCIe Gen 4 slots (twice the bandwidth of PCIe Gen 3) that allow for installing various expansion cards for expanding application potential.

10/25GbE network card

Enable lightning-fast throughput for bandwidth-demanding tasks (virtualization, mass data transmission, and fast backup/restore).
