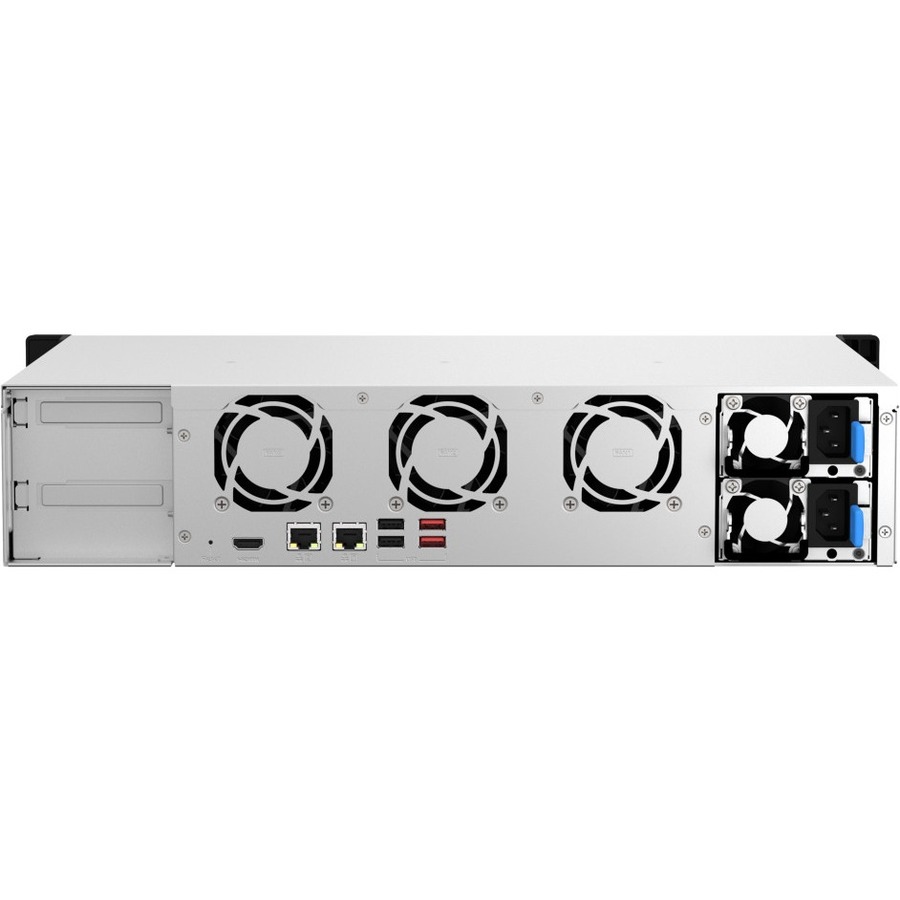

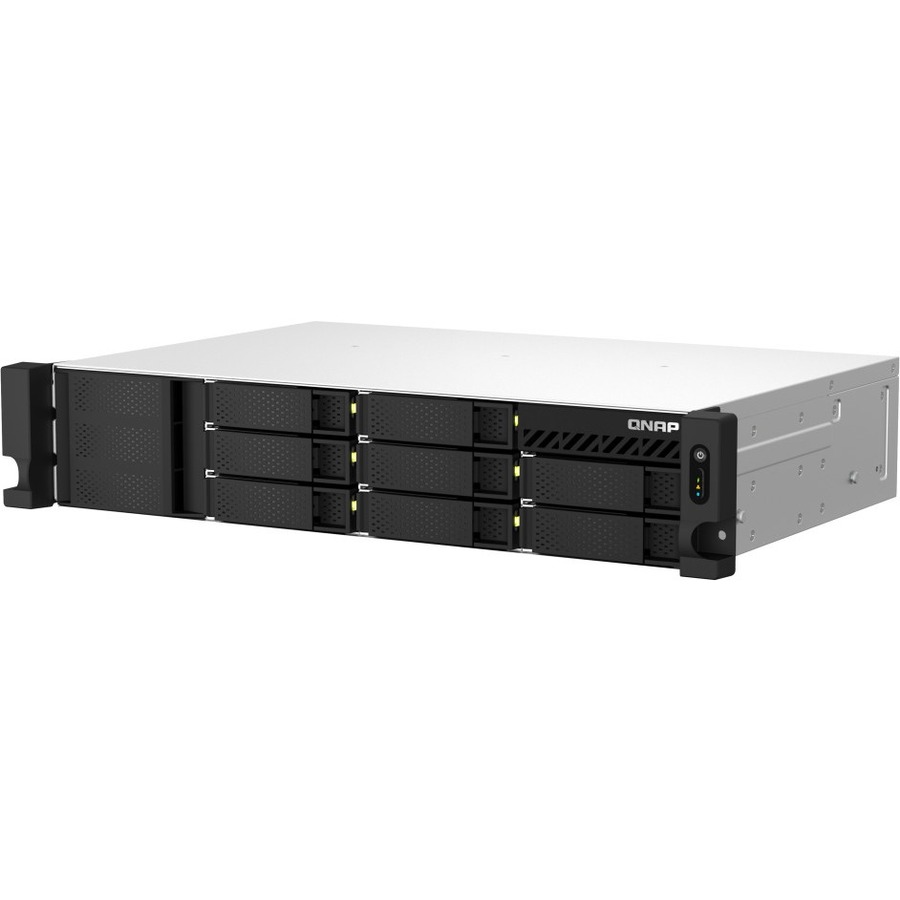

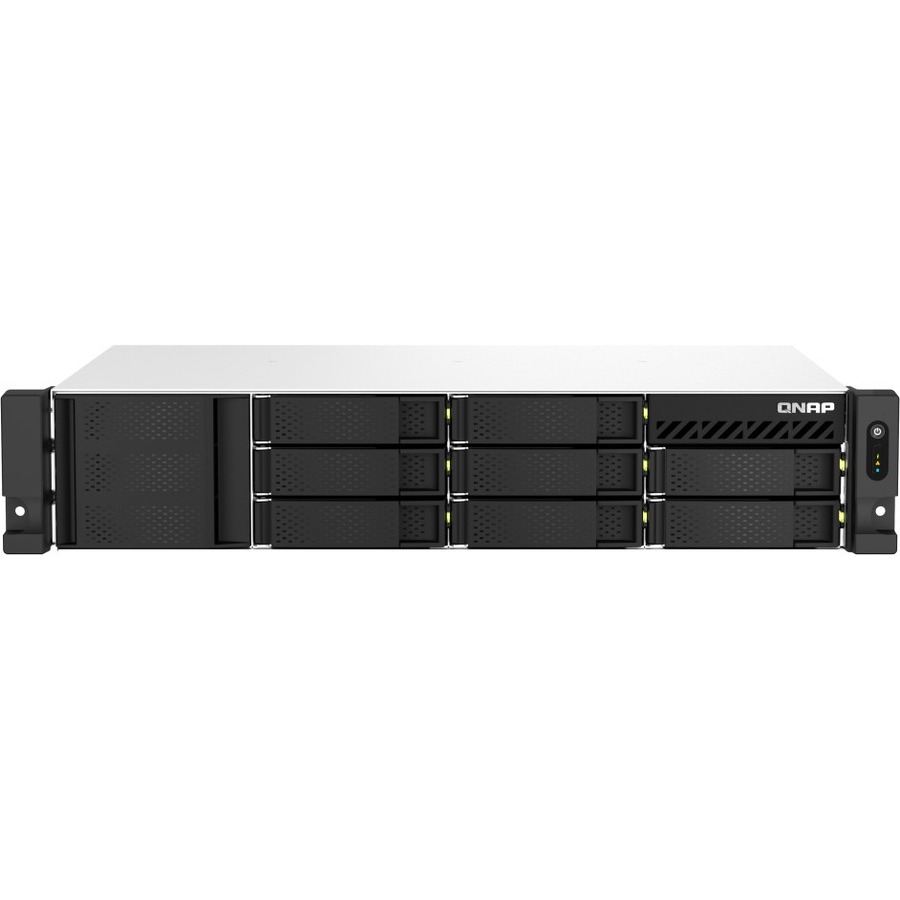

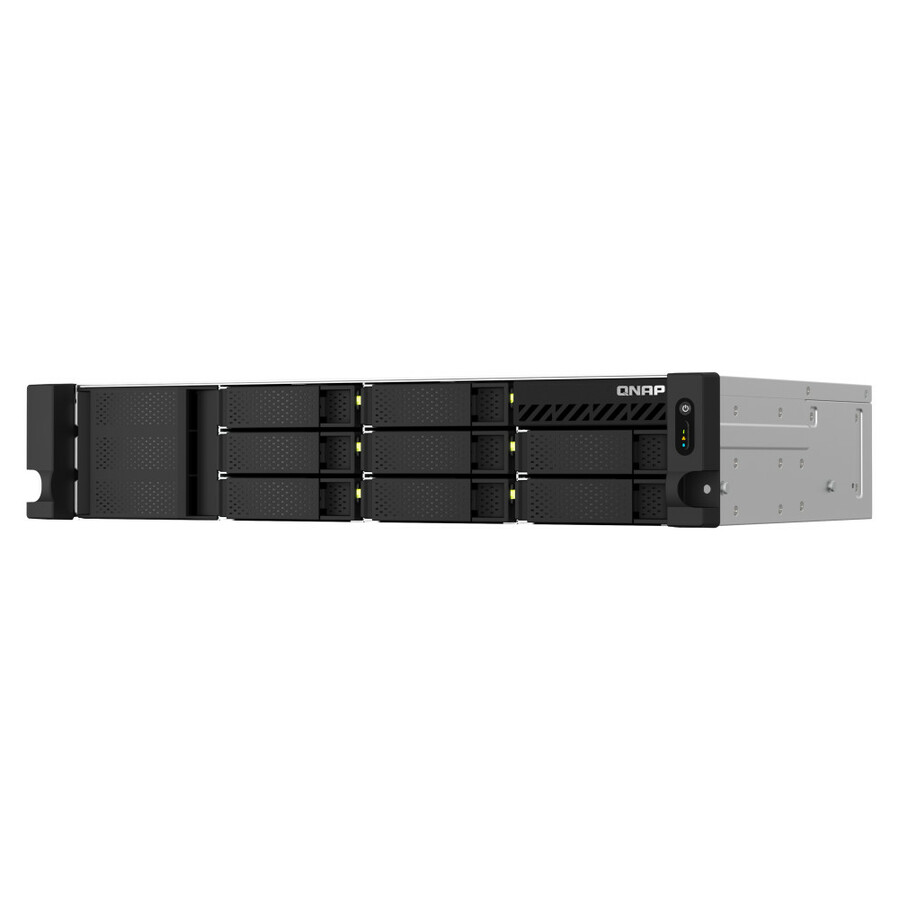

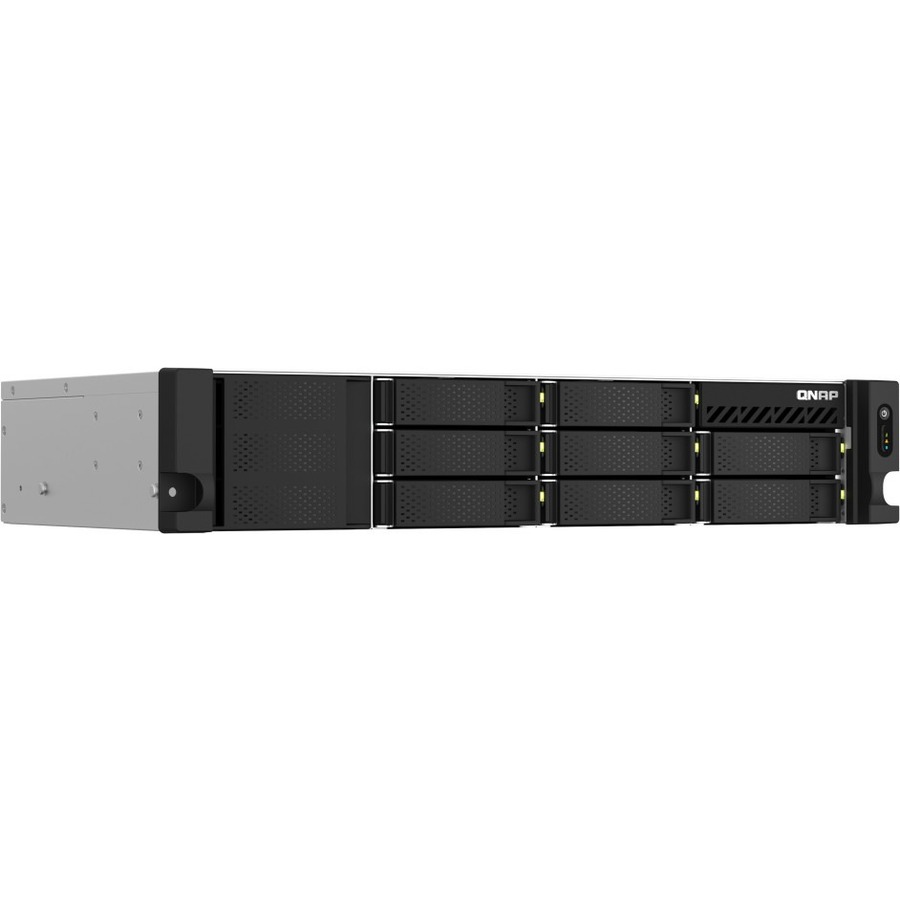

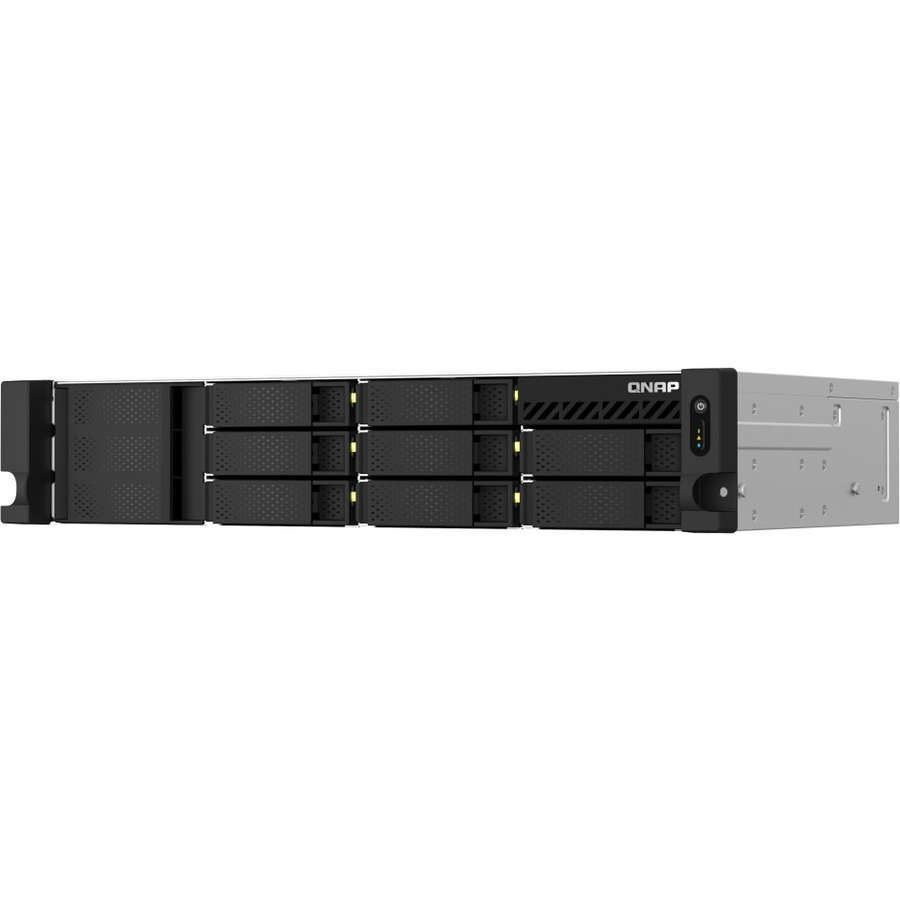

QNAP TS-864EU-RP-8G SAN/NAS Storage System
Intel Celeron N5095 Quad-core (4 Core) 2 GHz - 8 x HDD Supported - 0 x HDD Installed - 8 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported - 0, 1, 5, 6, 10, 50, 60, JBOD RAID Levels - 8 x Total Bays - 8 x 3.5" Bay - 1 x Total Slot(s) - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - QTS 5.0.1 - LDAP, HTTPS, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, ... - 4 GB Flash Memory Capacity
- SKU
- TS-864EU-RP-8G-US
- Category
- Storage Arrays & Servers
$1,789.67
Back ordered — ships when restocked.
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TS-864EU-RP-8G-US
- Category
- Storage Arrays & Servers
Overview
Quad-core Processor, burst up to 2.9 GHz with Memory Upgradable to 8 GB
The TS-864eU-RP is powered by Intel® Celeron® N5095 quad-core processor (burst up to 2.9 GHz) with 4 GB DDR4 memory which is upgradable up to 16 GB. With Intel® AES-NI encryption engine, the TS-x64eU provides unmatched encryption performance with AES-256 bit encryption acceleration, boosting system performance while ensuring the safety of sensitive business data stored in the NAS.
Build a High-Speed 2.5GbE Network Environment
QNAP offers comprehensive, budget-friendly storage and networking solutions that provide an array of connectivity possibilities. Easily and flexibly upgrade your workplace or home network now to handle bandwidth-hungry applications.
• A fast 2.5GbE NAS
A QNAP NAS featuring one or more 2.5GbE ports, and Port Trunking allows you to combine multiple ports for greater bandwidth potential.
• Upgrade computers and servers
Servers and desktops can install PCIe-based QNAP network cards that support 10G/5G/2.5G/1G/100M Multi-Gig.
• Add a 5GbE port to laptops
Laptops and upgrade-limited computers can use QNAP's portable USB 3.2 Gen 1 to 5GbE adapter that allows you to connect to 5G/2.5G/1G/100M networks via USB.
• A switch that supports 2.5GbE+
QNAP's 10GbE/NBASE-T switches support 10G/5G/2.5G/1G/100M and allow connecting multiple workstations and devices for high-speed collaboration in device-dense environments.
Future-proof your IT infrastructure for high-speed networks
The TS-864eU-RP is ideally matched with QNAP's managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows®/Linux® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.
Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-864eU-RP. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.
Abundant I/O capabilities with PCIe expansion
The TS-864eU-RP has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.
Highlights
- SAN/NAS Storage System offers maximum storage efficiency and convenience
- Robust scalability up to 8 drives to let you expand limitlessly
- Through RAID levels (0, 1, 5, 6, 10, 50, 60, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for desired storage efficiency with accuracy and precision
- Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable san/nas storage system allows a clutter-free, convenient usage with increased efficiency
- 2.5 Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- QTS 5.0.1 OS makes you more productive and creative
Specifications
| Product Type | SAN/NAS Storage System |
|---|---|
| Manufacturer Part Number | TS-864EU-RP-8G-US |
| Protocols | LDAP, HTTPS, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, SNMPv2, IPv4, WEBDAV, Telnet, SSL, iSCSI, TLS, HTTP, NFS, TFTP, FXP, DDNS, IPv6, PPTP |
| Limited Warranty | 3 Year |
| Standard Memory | 8 GB |
| Weight (Approximate) | 17.42 lb |
| Operating System | QTS 5.0.1 |
| Form Factor | Rack-mountable |
| Manufacturer | QNAP Systems |
| Product Model | TS-864EU-RP-8G |
| Product Name | TS-864EU-RP-8G SAN/NAS Storage System |
| Processor Speed | 2 GHz |
| Processor Type | Celeron |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, JBOD |
| Controller Type | Serial ATA/600 |
| Product Series | TS-x64 |
| Rack Height | 2U |
| Brand Name | QNAP |
| Expansion Slot Type | PCI Express 3.0 x2 |
| Memory Technology | DDR4 SDRAM |
| Processor Model | N5095 |
| Height | 3.5" |
| Width | 19" |
| Depth | 13.6" |
| Processor Core | Quad-core (4 Core) |
| Flash Memory Capacity | 4 GB |
| Processor Manufacturer | Intel |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| RAID Supported | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 8 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 300 W |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of Hard Drives Supported | 8 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 8 |
| Number of Solid State Drive Installed | 0 |
| Total Number of Expansion Slots | 1.0 |
| Number of USB 3.2 Gen 2 Ports | 2 |
