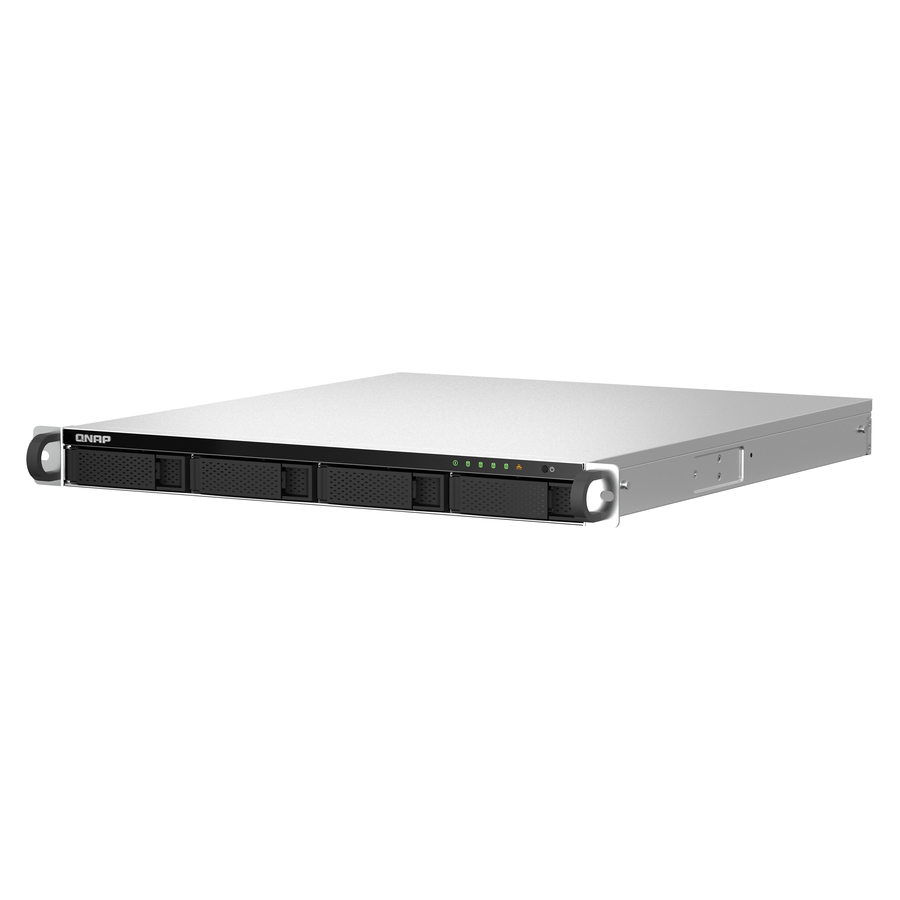

QNAP TS-464U-RP-8G SAN/NAS Storage System
Intel Celeron Quad-core (4 Core) 2 GHz - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD Supported - 0 x SSD Installed - 8 GB RAM DDR4 SDRAM - Serial ATA/600 Controller - RAID Supported - 0, 1, 5, 6, 10, JBOD RAID Levels - 4 x Total Bays - 4 x 2.5"/3.5" Bay - 1 x Total Slot(s) - 2.5 Gigabit Ethernet - HDMI - 4 USB Port(s) - 2 USB 2.0 Port(s) - Network (RJ-45) - QTS 5.0.1 - HTTPS, LDAP, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, ... - 4 GB Flash Memory Capacity - 1U
- SKU
- TS-464U-RP-8G-US
- Category
- Storage Arrays & Servers
$1,420.80
Back ordered — ships when restocked.
Genuine QNAP Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- TS-464U-RP-8G-US
- Category
- Storage Arrays & Servers
Overview
Powered by an Intel® Celeron® N5105/N5095 quad-core processor (burst up to 2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-464U-RP also features a redundant power supply to ensure maximum system uptime.
• 2.5GbE connectivity Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.
• PCIe expandability Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.
• Snapshots Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.
• License-free virtualized environment Host multiple containerized apps to run a wide range of applications and services.
• Drives Auto-Tiering Qtier? auto-tiering technology and SSD caching enable constant storage optimization.
• Flexible expansion Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units.
Quad-core high performance and up to 16GB RAM
The TS-464U-RP is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.
Streamline large file transfers and video editing with 2.5GbE
The TS-464U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.
Highlights
- SAN/NAS Storage System offers maximum storage productivity with added dependability
- Connect an expansion unit, and expand up to 4 drives for additional storage on the go
- Through RAID levels (0, 1, 5, 6, 10, jbod), RAID provides data reliability, fault tolerance and improves overall performance
- DDR4 SDRAM memory technology for desired storage efficiency with accuracy and precision
- Experience responsive performance, power, adaptability and fun with Intel Celeron 2 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable san/nas storage system allows easy and convenient usage without any trouble
- Lets you conveniently connect to the 2.5 gigabit ethernet Ethernet technology to offer maximum productivity
- QTS 5.0.1 OS with all the creative and productive tools you need
Specifications
| Additional Warranty Information | The TS-464U-RP is backed by a 3-year warranty at no additional cost. |
|---|---|
| Package Contents |
|
| Product Type | SAN/NAS Storage System |
| Manufacturer Part Number | TS-464U-RP-8G-US |
| Protocols | HTTPS, LDAP, L2TP, SFTP, DHCP, SSH, IPSec, FTPS, AFP, FTP, CIFS/SMB, SNMPv2, IPv4, WEBDAV, Telnet, SSL, iSCSI, TLS, TFTP, HTTP, NFS, FXP, DDNS, IPv6, PPTP |
| Limited Warranty | 3 Year |
| Standard Memory | 8 GB |
| Weight (Approximate) | 17.90 lb |
| Operating System | QTS 5.0.1 |
| Form Factor | Rack-mountable |
| Manufacturer | QNAP Systems |
| Product Model | TS-464U-RP-8G |
| Product Name | TS-464U-RP-8G SAN/NAS Storage System |
| Processor Speed | 2 GHz |
| Processor Type | Celeron |
| RAID Levels | 0, 1, 5, 6, 10, JBOD |
| Controller Type | Serial ATA/600 |
| Rack Height | 1U |
| Brand Name | QNAP |
| Expansion Slot Type | PCI Express 3.0 x2 |
| Memory Technology | DDR4 SDRAM |
| Country of Origin | Taiwan |
| Height | 1.7" |
| Width | 16.9" |
| Depth | 18.9" |
| Processor Core | Quad-core (4 Core) |
| Flash Memory Capacity | 4 GB |
| Processor Manufacturer | Intel |
| Number of Power Supplies Installed | 2 |
| RAID Supported | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of Total Expansion Bays | 4 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 250 W |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of Hard Drives Supported | 4 |
| Number of Hard Drives Installed | 0 |
| Number of Solid State Drive Supported | 4 |
| Number of Solid State Drive Installed | 0 |
| Number of 2.5"/3.5" Bays | 4 |
| Total Number of Expansion Slots | 1 |
| Number of USB 3.2 Gen 2 Ports | 2 |
