Peerless-AV® SmartMount® Pull-out Pivot Wall Mount for 32" to 80" Displays
Peerless Industries

Peerless-AV® SmartMount® Pull-out Pivot Wall Mount for 32" to 80" Displays

150lb

SKU
SP850-UNL
Category
Mounting Kits

MSRP$604.00

$351.67

Save 42%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Peerless Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SP850-UNL
Category
Mounting Kits

Overview

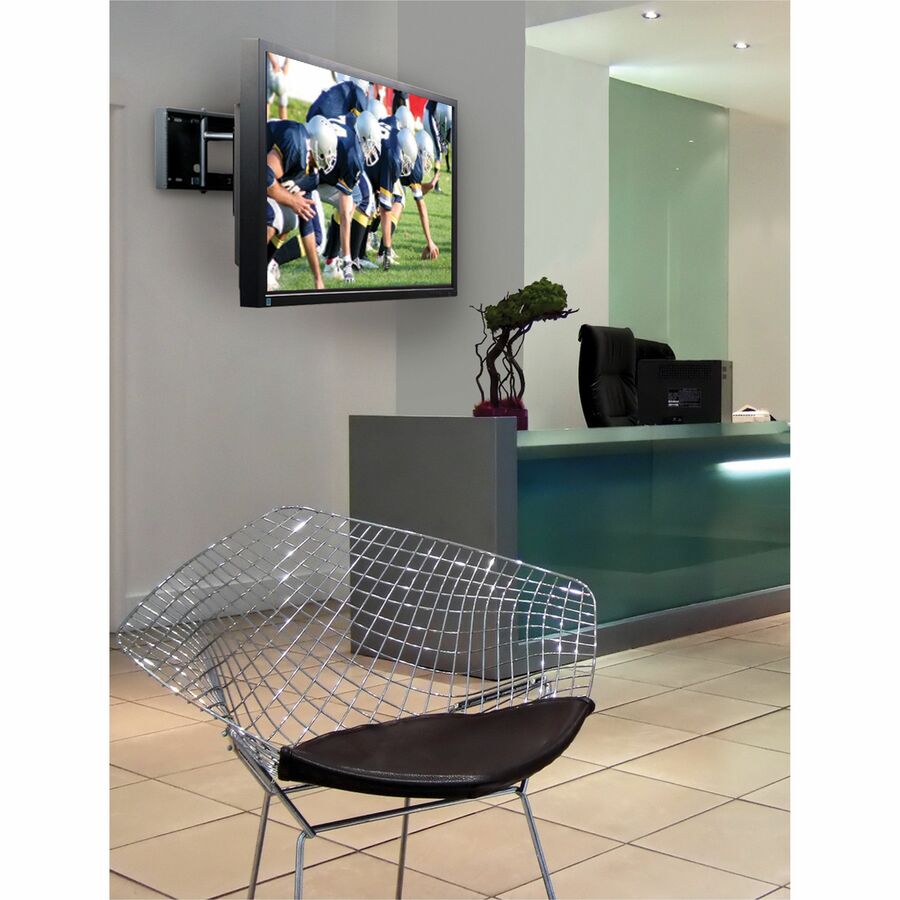

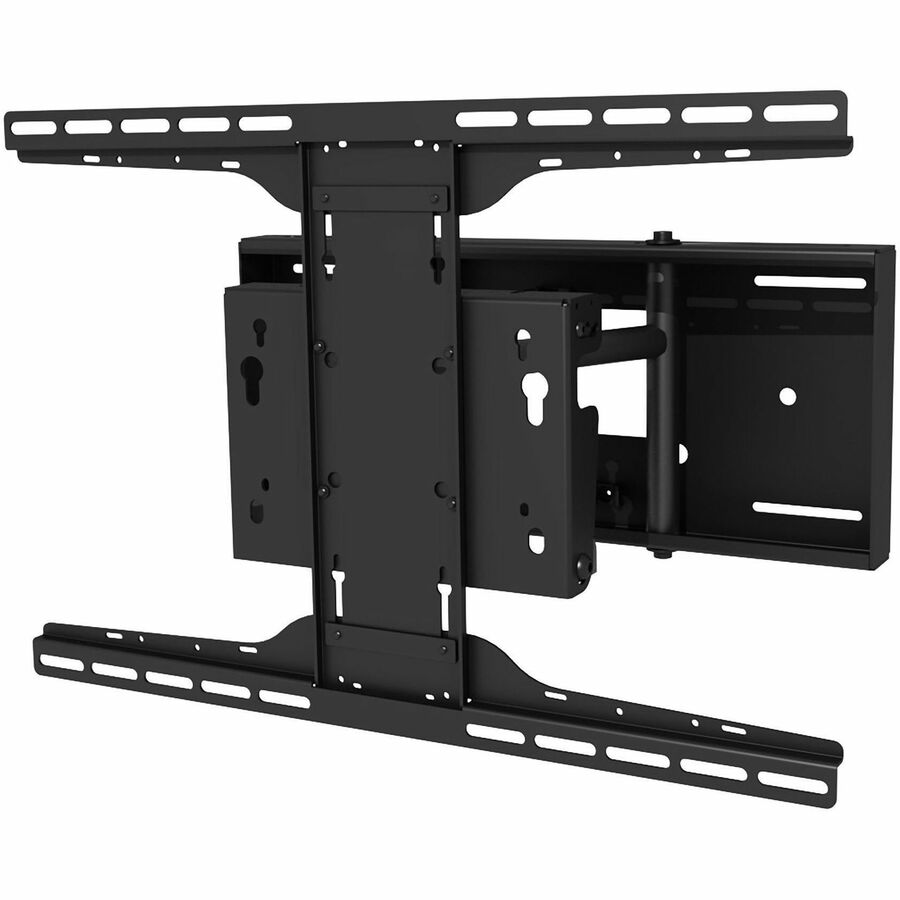

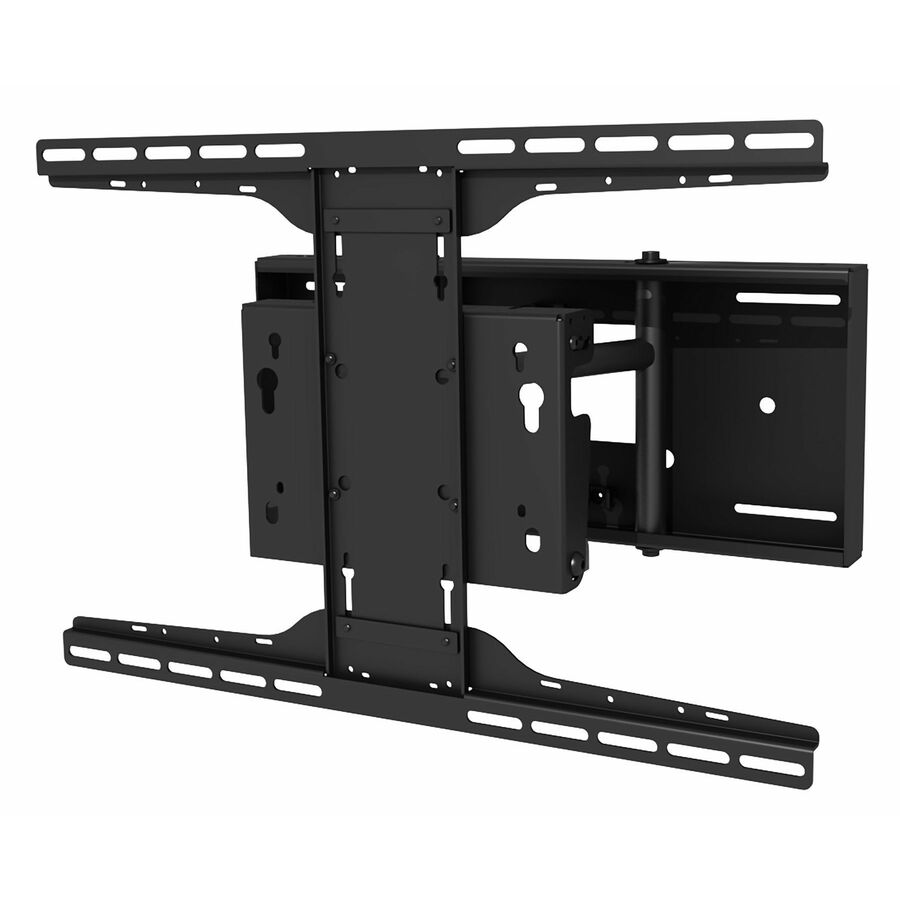

The SmartMount® Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm into one design. When closed, the SP850 acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hides all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 11.18" (284mm) from the wall and allows the display to pivot up to 45°. The SP850 is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.

More from the Manufacturer

Highlights

  • Dedicated models include VESA® 100 and 200 x 100mm compliant adaptor plate (PLP or LC model adaptor plate required for non-VESA displays) |Universal models adapt to displays with mounting holes up to 600 x 400mm (23.62" W x 15.75" H)
  • IncreLok? tilt provides tilt at 0°, 5° and 10° |±1° of roll for horizontal display leveling during installation
  • Mounts to 16" wood studs, concrete and cinder block

Specifications

Package Contents
  • Wall Mount Assembly
  • LockKey Installation Tool
  • Locking Tab
  • Cable Management Sleeve
  • Fastener Pack Including VESA 100 x 100, 200 x 100mm Display Attachment
  • Universal Adaptor Plate
Product TypeWall Mount
Device SupportedFlat Panel Display
Manufacturer Part NumberSP850-UNL
Packaged Quantity1 Unit
Limited Warranty5 Year
Weight (Approximate)30.40 lb
DurabilityTamper Resistant, Theft Resistant
FeaturesTilt, Cable Management, Sturdy, Swivel, Pivot, Extendable
Form FactorWall Mountable
ManufacturerPeerless Industries, Inc
Product ModelSP850-UNL
Product NamePull-out Pivot Wall Mount For 32" to 80" Displays
Product SeriesSP850-UNLP
Maximum Load Capacity150 lb
Brand NameSmartMount®
Country of OriginUnited States
Assembly RequiredYes
Height16.78"
Width24.38"
Depth11.18"
Minimum Screen Size Supported32"
Maximum Screen Size Supported80"
VESA Mount CompatibleYes
Maximum Adjustable Depth11.18"
UL ListedYes
Minimum Adjustable Depth2.73"
TAA CompliantYes
Indoor/OutdoorIndoor
Product ColorBlack
Color FamilyBlack
Minimum Swivel Angle-45°
Maximum Swivel Angle45°
Minimum Tilt Angle0°
Maximum Tilt Angle10°
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Mount FunctionSwivel, Tilt, Cable Management, Wall Mount
Mount SurfaceWall, Wood Stud, Concrete, Cinder Block
Manufacturer Product ClassPivot
