Panorama Antennas WMM4G-6-60 4x4 MiMo 4G/5G Directional Antenna
Panorama Antennas

Panorama Antennas WMM4G-6-60 4x4 MiMo 4G/5G Directional Antenna

617 MHz to 960 MHz, 1710 MHz to 6000 MHz - 9 dBi - Cellular Network - White - Wall/Mast/Screw/Flush - Directional - SMA Connector

SKU
WMM4G-6-60-5SP
Category
Antennas

MSRP$529.20

$399.07

Save 25%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
WMM4G-6-60-5SP
Category
Antennas

Overview

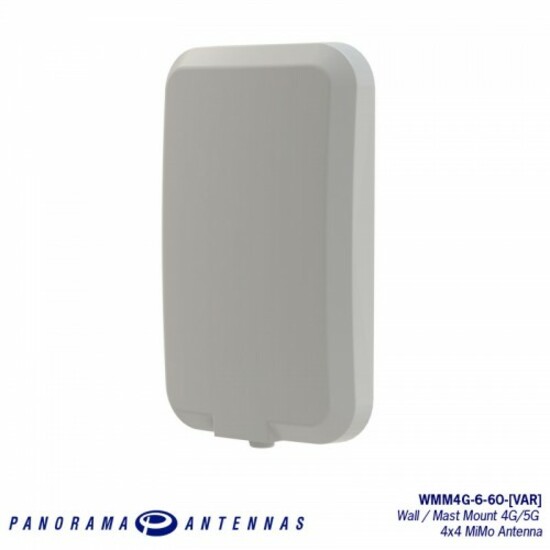

The WMM4G-6-60 is a high directional gain 4x4 MiMo signal boosting antenna for 4G and 5G networks. Incorporating four separately fed wideband element assemblies in a single housing the WMM4G-6-60 is equipped to provide client side MiMo support for 4G and 5G networks offering 6dBi of peak gain at 617- 960MHz and 9dBi peak gain at 1710-6000MHz.

• Supports full Cat18 (617-960/1710-6000MHz) 4x4 MiMo 4G/5G

• High Directional gain 6-9dBi

• Wall Mount or Mast Mount

• Ideal for Branch Networks and Failover

The weather resistant housing is designed for wall mounting and wall and mast mount brackets are provided. Supplied with fitted low loss double shielded cable for cellular/LTE the WMM4G-6-60 minimises exposed connector joints and simplifies cable management for easy installation.

Highlights

  • Designed to operate at 617 MHz to 960 MHz frequency
  • This antenna provides improved signals to your cellular network
  • With its noise resistant design, this antenna receives signals from greater distances
  • Can be mounted as wall/mast/screw/flush

Specifications

Application/UsageCellular Network
Product TypeAntenna
Manufacturer Part NumberWMM4G-6-60-5SP
Connector TypeSMA
Form FactorWall/Mast/Screw/Flush
ManufacturerPanorama Antennas Ltd
Product ModelWMM4G-6-60
Product NameWMM4G-6-60 4x4 MiMo 4G/5G Directional Antenna
Brand NamePanorama Antennas
Height3.43"
Width12.09"
Depth19.96"
DirectivityDirectional
Product ColorWhite
Operating Frequency Range617 MHz to 960 MHz, 1710 MHz to 6000 MHz
Antenna Gain (Isotropic)9 dBi
