Panorama Antennas SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee Antenna
Panorama Antennas

Panorama Antennas SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee Antenna

698MHz to 960MHz, 1427MHz to 4900MHz, 2400MHz to 7125MHz - 30 dB - 9 dBi - Cellular Network, Vehicle, Wireless Data Network, GPS - Black - Panel - Omni-directional - SMA, RP-SMA Connector

SKU
SH-IN2875
Category
Antennas

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
SH-IN2875
Category
Antennas

Overview

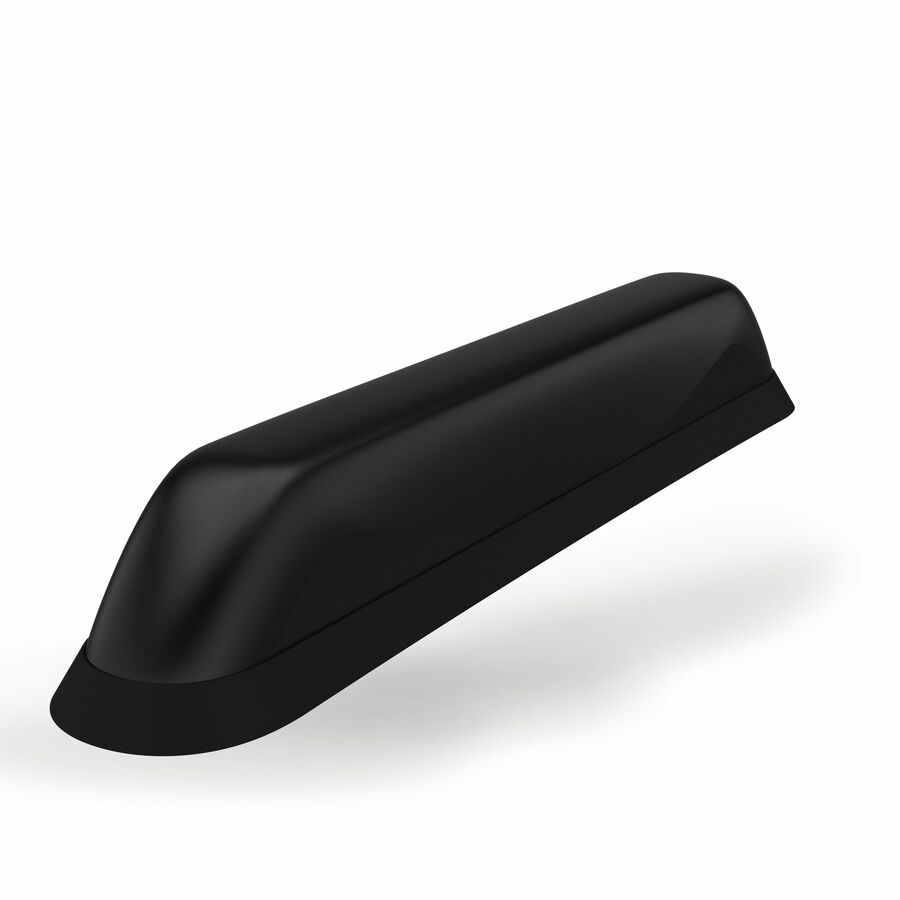

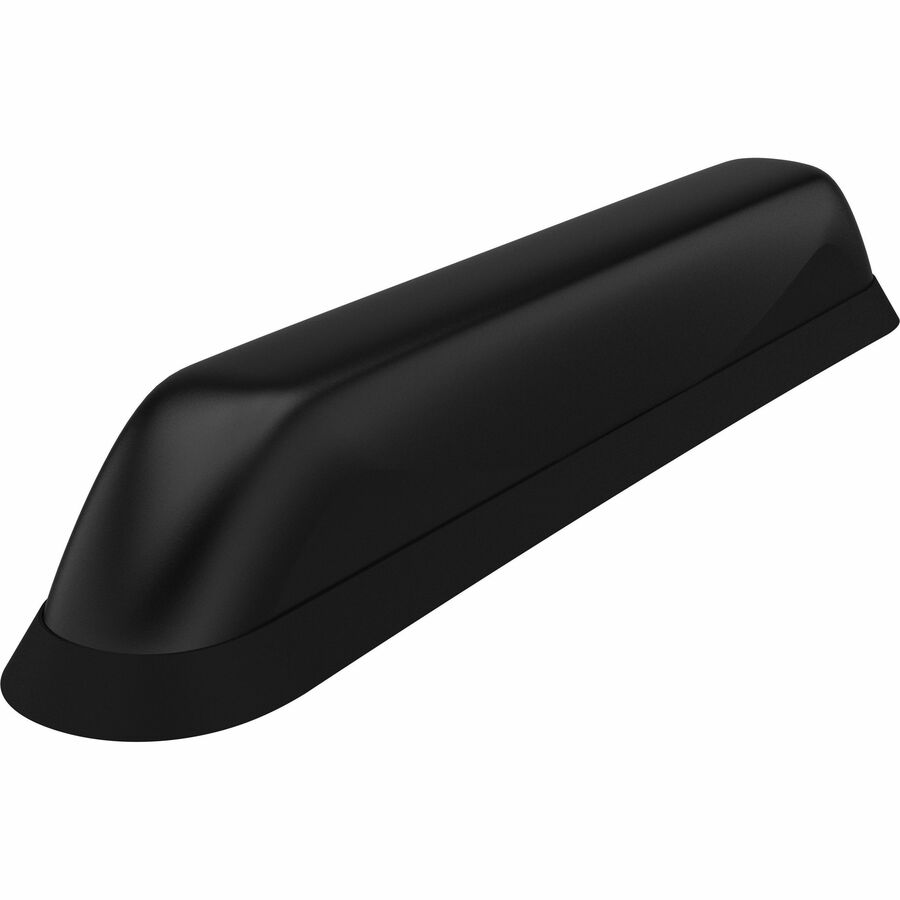

The SHK[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. This version of the product does not have a whip position.

The sleek sharkfin design has low visual impact and at only 52mm (2") high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications.

The SHK[X]4-7-49[X] can be installed on conductive or non-conductive panel.

Highlights

  • Provides optimized pattern coverage with 698MHz to 960MHz frequency
  • Get improved signals for your cellular network with this antenna
  • Operates at 30 dB gain
  • Receive signals from multiple directions with this omnidirectional antenna
  • Designed to be light in weight and easy to install

Specifications

Application/UsageCellular Network, Vehicle, Wireless Data Network, GPS
Package Contents
  • SHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee Antenna
  • Cables
Product TypeAntenna
Manufacturer Part NumberSH-IN2875
Connector TypeSMA, RP-SMA
Form FactorPanel
ManufacturerPanorama Antennas Ltd
Product NameSHK[X]4-7-49[X] | 4×4 MiMo Reef Sharkee Antenna
Product LineReef Sharkee
Product SeriesSHK[X]4-7-49[X]
Brand NamePanorama Antennas
Height2.05"
Width2.36"
Antenna Gain30 dB
DirectivityOmni-directional
Product ColorBlack
Voltage Standing Wave Ratio (VSWR)<2.5:1
Color FamilyBlack
Operating Frequency Range698MHz to 960MHz, 1427MHz to 4900MHz, 2400MHz to 7125MHz
Antenna Gain (Isotropic)9 dBi
