Panorama Antennas Sharkee SH-IN2617 Antenna
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 7.2GHz, 1562 MHz to 1662 MHZ - 26 dB - Wireless Data Network, Cellular Network, GPS, Vehicle - Black - Panel Mount - Omni-directional
- SKU
- SH-IN2617
- Category
- Antennas
MSRP$424.66
$317.65
Save 25%Back ordered — ships when restocked.
Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SH-IN2617
- Category
- Antennas
Overview

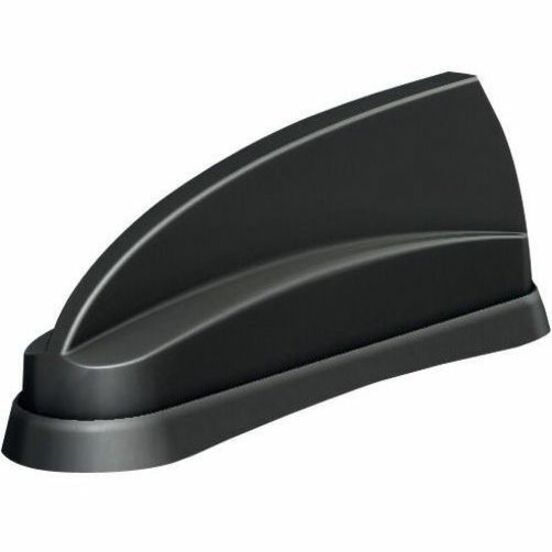

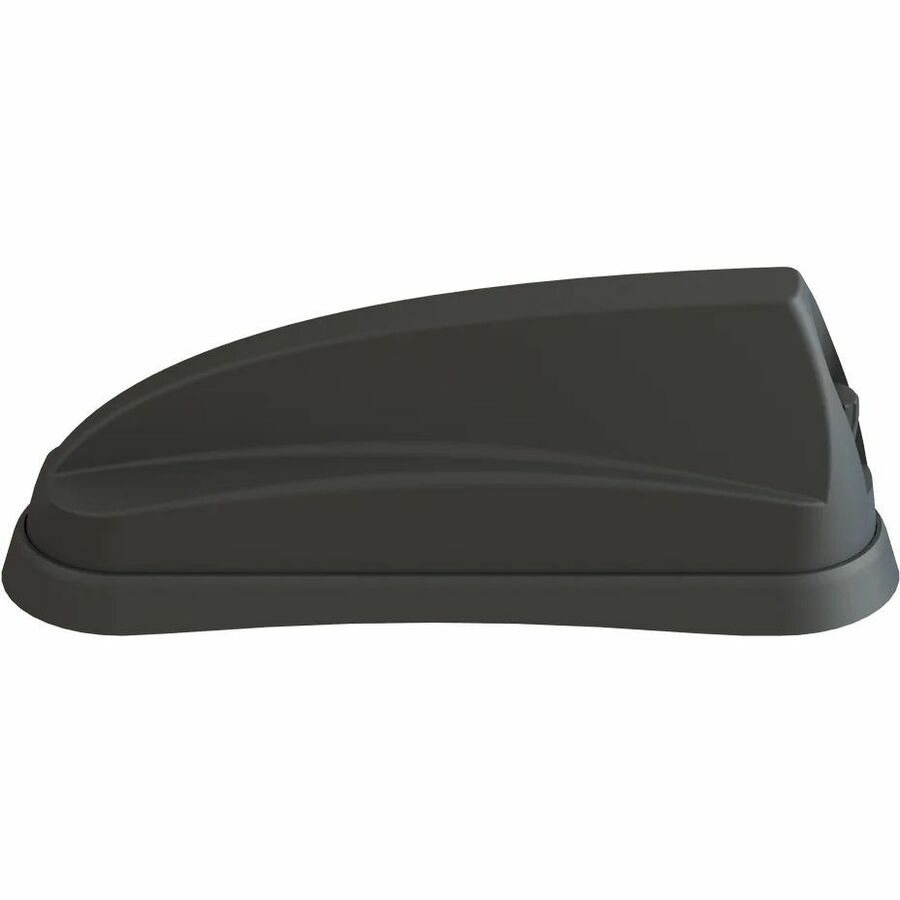

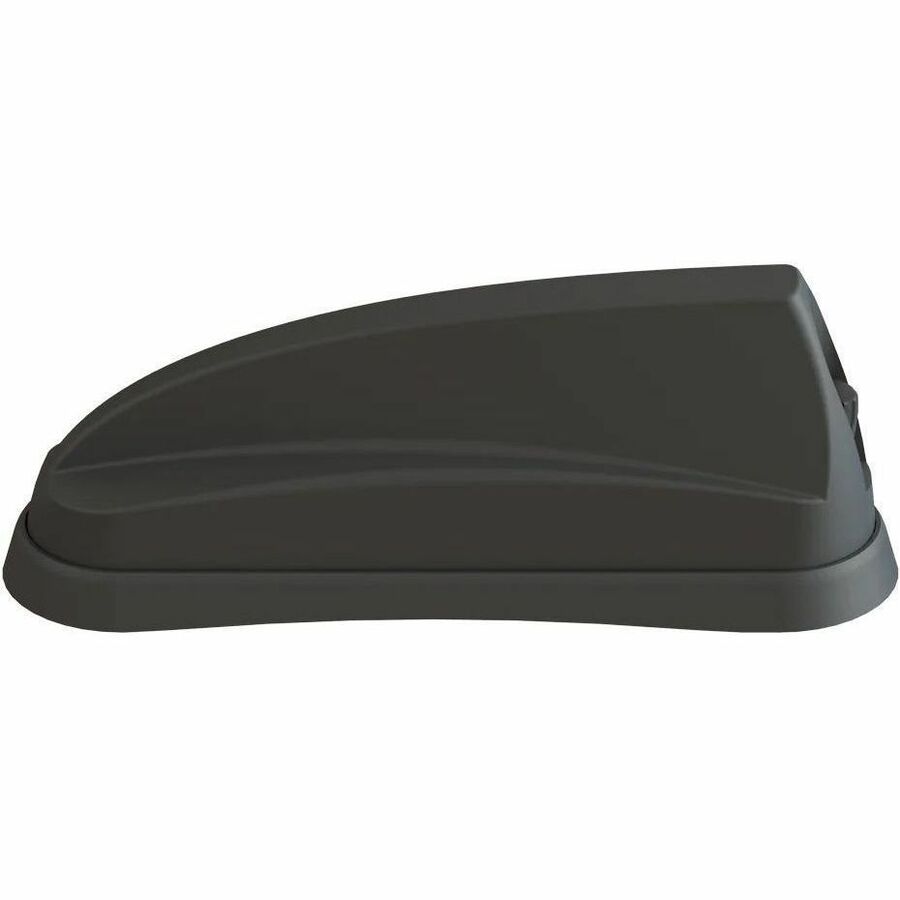

4G/5G MiMo Antenna Discrete OEM Style Sharkfin
The 'Sharkee' range has become a byword for industry leading technology in a discrete OEM sharkfin housing. The SH-IN2617 brings 5G capability to the product family.
The antenna can be fitted on a metallic or non-metallic panel and still offer similar performance.
The OEM style shark fin housing contains a 2x2 MiMo antenna function for 4G/5G (617-960/1710-6000MHz) and 2x2 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation.
The SH-IN2617 shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the SH-IN2617 reduces vehicle damage, installation time & cost and visual impact whilst protecting a vehicle's resale value.
Highlights
- Discreet automotive OEM SharkFin design
- Multiple antenna functions in a single housing
- Single hole mounting - reduces vehicle damage, installation time & cost
- Can be mounted on a metallic or non-metallic panel surface
- Will fit between roof ribs on all major vehicle manufacturers
- Can be retrofitted to a vehicle replacing the factory fitted antenna
Specifications
| Application/Usage | Wireless Data Network, Cellular Network, GPS, Vehicle |
|---|---|
| Product Type | Antenna |
| Manufacturer Part Number | SH-IN2617 |
| Form Factor | Panel Mount |
| Manufacturer | Panorama Antennas Ltd |
| Product Model | SH-IN2617 |
| Product Name | Sharkee SH-IN2617 Antenna |
| Package Type | OEM |
| Product Line | Sharkee |
| Brand Name | Panorama Antennas |
| Height | 3.54" |
| Width | 2.48" |
| Depth | 9.57" |
| Environmentally Friendly | Yes |
| Antenna Gain | 26 dB |
| Directivity | Omni-directional |
| Product Color | Black |
| Color Family | Black |
| Operating Frequency Range | 617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 7.2GHz, 1562 MHz to 1662 MHZ |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) 3, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
