Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] Antenna
Panorama Antennas

Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] Antenna

Range - RF - 617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 6000 MHz - 10 dB - 26 dBi - GPS, GLONASS, In-vehicle Router - White - Panel Mount, Magnetic Mount - Omni-directional - SMA Connector

SKU
LPMM-6-60
Category
Antennas

MSRP$216.09

$162.71

Save 25%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LPMM-6-60
Category
Antennas

Overview

The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.

The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.

The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.

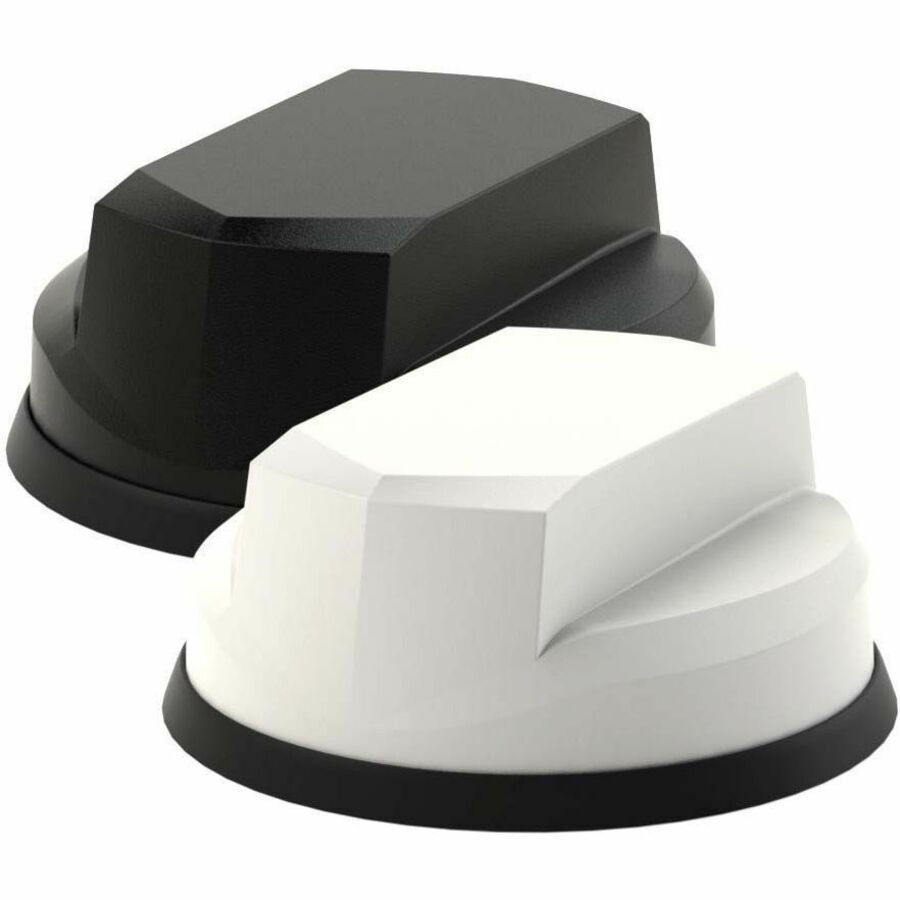

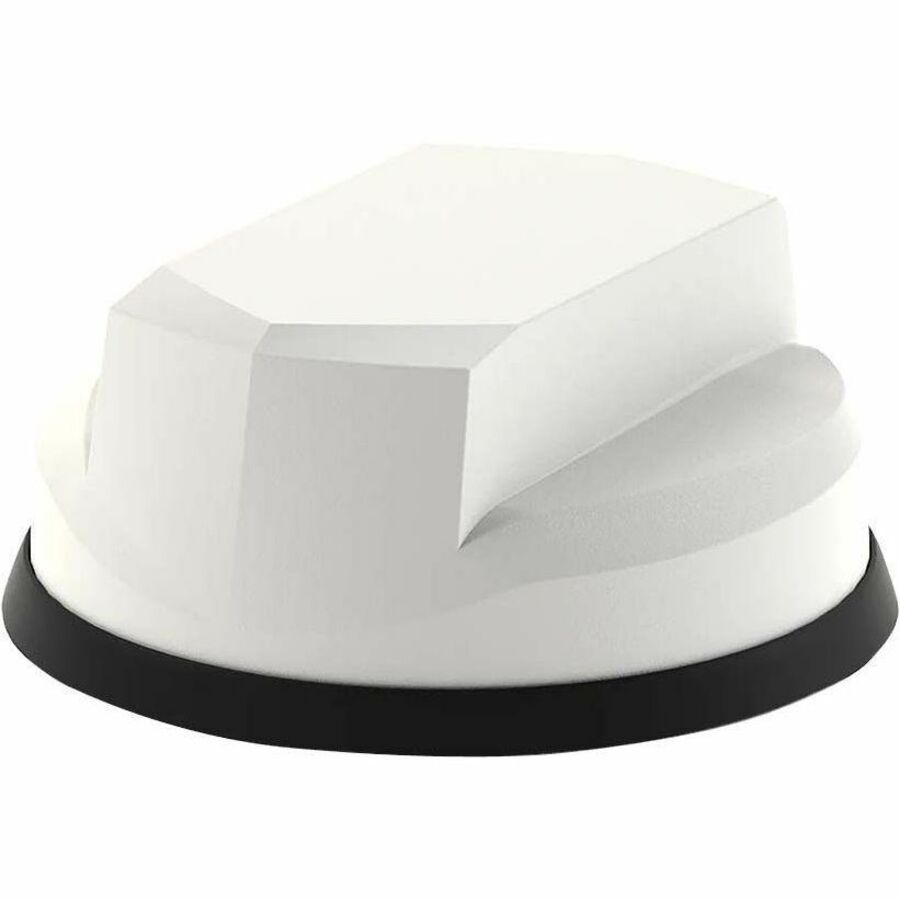

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.

Highlights

  • The "Great White" 5G version
  • Upto 9 functions inside a low profile housing
  • Ground plane independant antenna solution

Specifications

Application/UsageGPS, GLONASS, In-vehicle Router
Product TypeAntenna
Manufacturer Part NumberLPMM-6-60
Connector TypeSMA
Form FactorPanel Mount, Magnetic Mount
ManufacturerPanorama Antennas Ltd
Product NameL[G]M[X]M[X]-6-60[-24-58] Antenna
Product SeriesL[G]M[X]M[X]-6-60[-24-58]
Brand NamePanorama Antennas
Diameter7.09"
Height2.95"
Antenna Gain10 dB
DirectivityOmni-directional
Frequency Band TypeRF
Product ColorWhite
Voltage Standing Wave Ratio (VSWR)< 2.0:1
Color FamilyWhite
Operating Frequency Range617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 6000 MHz
Antenna Gain (Isotropic)26 dBi
