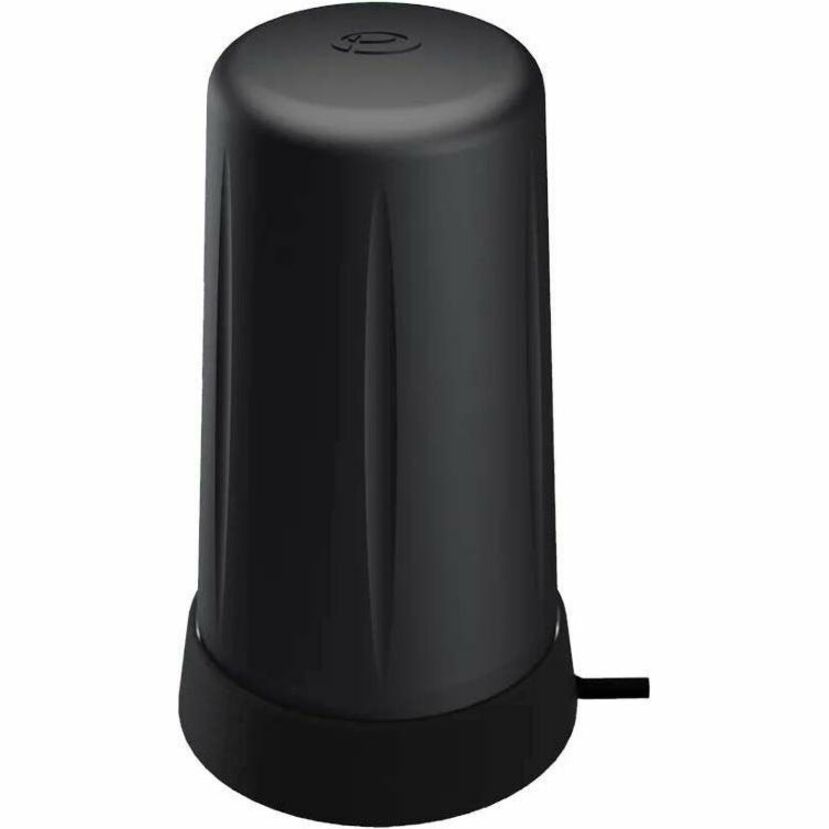

Panorama Antennas LPBEM-6-60 Antenna
Panorama Antennas

Panorama Antennas LPBEM-6-60 Antenna

617 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2170 MHz to 2700 MHz, 3400 MHz to 3800 MHz, 4000 MHz to 6000 MHz - 8 dBi - GPS, Cellular Network, Kiosk, Vending Machine, Smart Metering - Black - Magnetic Mount - Omni-directional - SMA Connector

SKU
LPBEM-6-60-5SP
Category
Antennas

MSRP$40.13

$34.42

Save 14%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LPBEM-6-60-5SP
Category
Antennas

Overview

The LPBEM-6-60 is a high performance SiSo LTE antenna covering 617-960/1710-6000MHz.

The Panorama LPBEM-6-60 is a range of low cost high performance magnetic mount antennas for temporary fit applications. At only 95mm (3.7") high and protected by a robust high impact radome the antenna is almost impervious to daily wear and tear.

The LPBEM offers excellent performance across a wide bandwidth. The LPBEM covers global cellular and LTE frequencies from 617-960 MHz and 1710-6000 MHz making it an extremely versatile product. Although intended for magnetic mounting on a conductive ground plane the antenna can also be used for desk mounting applications with some impact on performance.

Supplied with a convenient length of flexible RG174 cable and a double sided adhesive pad, the LPBEM is easy to install and compatible with a large range of modems. Multiple units can be deployed suitably separated for MiMo applications.

Highlights

  • Low profile wideband antenna
  • Cost effective solution
  • Robust product with integrated cable of various lengths
  • Covers all 2G/3G/4G/5G LTE cellular bands from 600-6000MHz
  • Medium dB gain antenna
  • Magnetic mount solution

Specifications

Application/UsageGPS, Cellular Network, Kiosk, Vending Machine, Smart Metering
Package Contents
  • RG174 Cable
  • Adhesive Pad
Product TypeAntenna
Manufacturer Part NumberLPBEM-6-60-5SP
Connector TypeSMA
Form FactorMagnetic Mount
ManufacturerPanorama Antennas Ltd
Product ModelLPBEM
Product NameLPBEM-6-60 Antenna
Product SeriesLPBEM-6-60
Brand NamePanorama Antennas
Diameter1.89"
DirectivityOmni-directional
Product ColorBlack
Color FamilyBlack
Operating Frequency Range617 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2170 MHz to 2700 MHz, 3400 MHz to 3800 MHz, 4000 MHz to 6000 MHz
Antenna Gain (Isotropic)8 dBi
