Panorama Antennas LPB-6-60 Antenna
Panorama Antennas

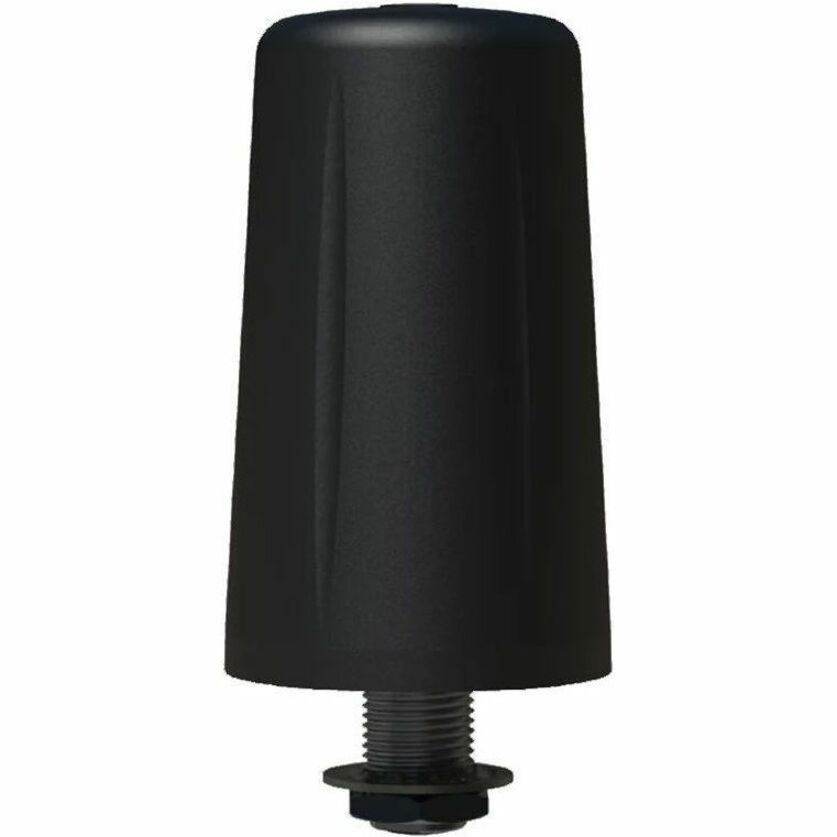

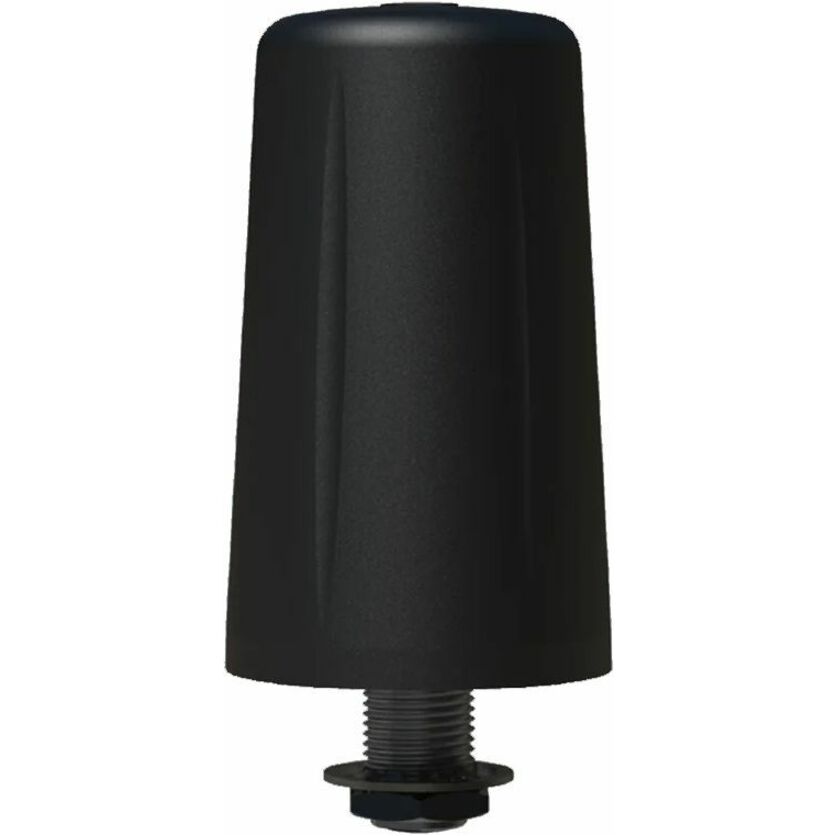

Panorama Antennas LPB-6-60 Antenna

617MHz to 960MHz, 1710MHz to 6000MHz, 617MHz to 960MHz - 2.5 dBi - Cellular Network, Router, Modem, Wireless Data Network - Black - External, Internal, Bracket Mount, Panel - Omni-directional - SMA Connector

SKU
LPB-6-60-2SP
Category
Antennas

MSRP$29.33

$27.16

Save 7%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LPB-6-60-2SP
Category
Antennas

Overview

• Cost Effective 2G/3G/4G/5G Coverage

• Integrated Low Loss Cable

• Robust but Subtle Design

The LPB-6-60 antenna is a cost effective omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz and is suitable for external or internal installation.

The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted.

This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

The LPB-6-60 requires a conductive ground plane of >300mm (1') diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).

Highlights

  • Delivers?enhanced performance at 617MHz to 960MHz operating frequency range
  • With its strong connection and faster transfer speeds, this cellular network provides the best reception
  • Eases up the installation procedure thanks to its 360-degree horizontal pattern
  • Can be mounted as external

Specifications

Application/UsageCellular Network, Router, Modem, Wireless Data Network
Product TypeAntenna
Manufacturer Part NumberLPB-6-60-2SP
Weight (Approximate)8.82 oz
Connector TypeSMA
Form FactorExternal, Internal, Bracket Mount, Panel
ManufacturerPanorama Antennas Ltd
Product ModelLPB-6-60
Product NameLPB-6-60 Antenna
Brand NamePanorama Antennas
Diameter1.89"
Height3.23"
DirectivityOmni-directional
Product ColorBlack
Color FamilyBlack
Operating Frequency Range617MHz to 960MHz, 1710MHz to 6000MHz
Antenna Gain (Isotropic)2.5 dBi
