Panorama Antennas LP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna
Panorama Antennas

Panorama Antennas LP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna

698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz - 26 dB - 5 dBi - Cellular Network, Smart Metering, Vending Machine, Outdoor, IoT Device - Black - Wall Mount, Mast, Panel Mount - Omni-directional - SMA Connector

SKU
LPAM-BC3G-26-1SP
Category
Antennas

MSRP$52.92

$44.73

Save 15%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LPAM-BC3G-26-1SP
Category
Antennas

Overview

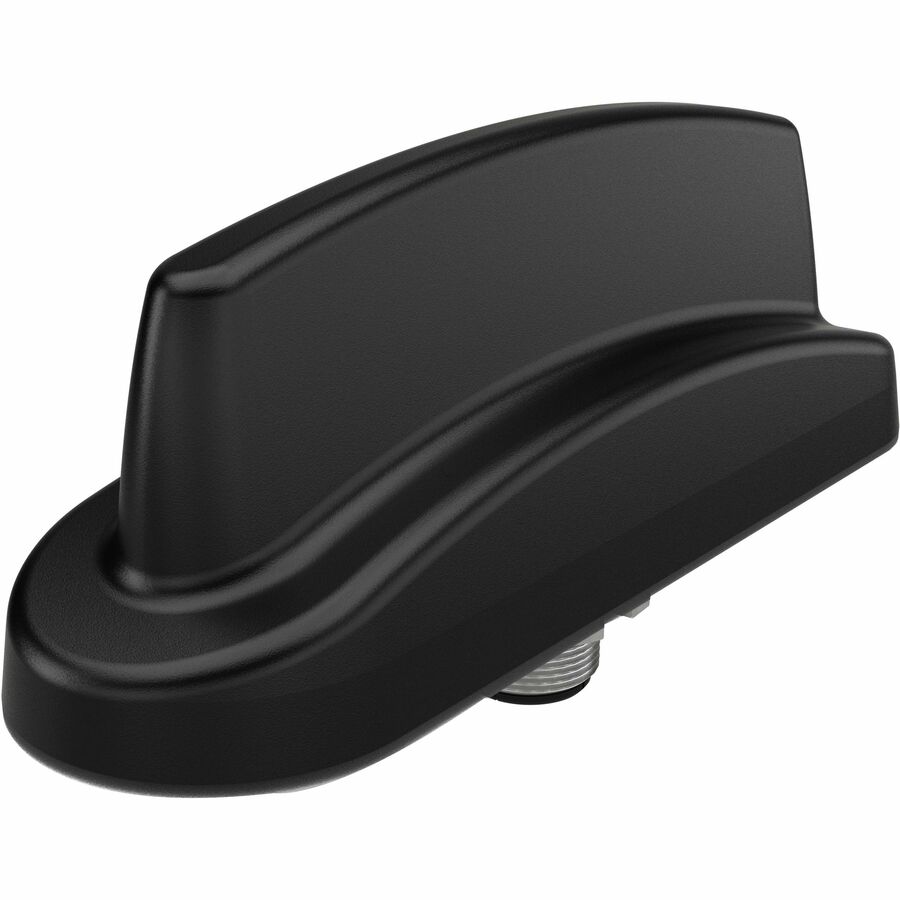

The LP[G]AM-BC3G-26-[XSP] range has been designed to provide MiMo Cellular / LTE antenna function for IOT and M2M applications.

The compact, robust low-profile housing is weatherproof and contains two antenna elements with effective isolation and correlation covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz. The LG version includes an active GPS/GNSS/Galileo/Beidou antenna for applications that require position or timing function.

The antenna can be fitted on a non-conductive panel if required* and offers easy, quick, secure, and weatherproof installation with the single hole mounting bush and acrylic adhesive sealing pad. Supplied with integrated 1m (3.3') or 3m (10') cable and SMA plug connectors, the antenna will offer plug and play connectivity with many different terminals.

Highlights

  • Provides optimized pattern coverage with 698 MHz to 960 MHz operating frequency range
  • With its strong connection and faster transfer speeds, this cellular network provides the best reception
  • Operates at 26 dB gain
  • Receive signals from multiple directions with this omnidirectional antenna
  • With its wall mounting feature, you can conveniently install the antenna while keeping the wires and cables organized

Specifications

Application/UsageCellular Network, Smart Metering, Vending Machine, Outdoor, IoT Device
Package Contents
  • LP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna
  • 1m (3.3') or 3m (10') Cable
  • SMA Plug Connectors
Product TypeAntenna
Manufacturer Part NumberLPAM-BC3G-26-1SP
Connector TypeSMA
Form FactorWall Mount, Mast, Panel Mount
ManufacturerPanorama Antennas Ltd
Product NameLP[G]AM-BC3G-26 | Compact Low Profile MiMo 2G/3G/4G Antenna
Brand NamePanorama Antennas
Height1.93"
Width1.77"
Antenna Gain26 dB
DirectivityOmni-directional
Product ColorBlack
Color FamilyBlack
Operating Frequency Range698 MHz to 960 MHz, 1710 MHz to 2170 MHz, 2500 MHz to 3800 MHz
Antenna Gain (Isotropic)5 dBi
