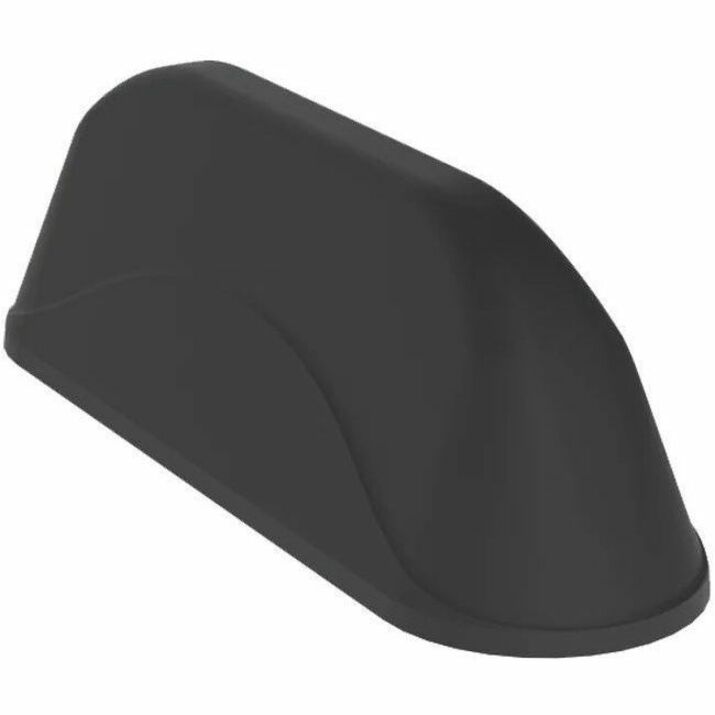

Panorama Antennas L[G]AM-7-27-[X]24-58 Antenna
Panorama Antennas

Panorama Antennas L[G]AM-7-27-[X]24-58 Antenna

698MHz - 960MHz, 1710MHz - 3800MHz, 1562MHz - 1612MHz, 4900MHz - 6000MHz - 26 dB - Cellular Network, GPS, Vending Machine, Payment Terminal, GLONASS, Wireless Data Network - Black - Panel Mount - Omni-directional - SMA, RP-SMA Connector

SKU
LPAM-7-27-24-58-1S
Category
Antennas

MSRP$74.87

$59.07

Save 21%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
LPAM-7-27-24-58-1S
Category
Antennas

Overview

• Low Profle Design

• MiMo 5G/4G/3G/2G + Single or 2x2 MiMo 2.4/5GHz

• Optional GPS/GNSS

The L[G]PAM has a compact housing that contains 2x2 MiMo antenna function for 5G/4G/3G/2G and either single or 2x2 MiMo antenna function for 2.4/5GHz.

The LGAM version also includes an active antenna for GPS/GLONASS/Galileo/ BeiDou with 26dB gain LNA.

This antenna range is ideal for vending machines, payment terminals and other M2M or IoT applications.

Highlights

  • Provides optimized pattern coverage with 698MHz - 960MHz operating frequency range
  • Dramatically enhance the performance of cellular network with this antenna
  • Offers up to 26 dB gain
  • Eases up the installation procedure thanks to its 360-degree horizontal pattern
  • Antenna can be mounted as panel mount

Specifications

Application/UsageCellular Network, GPS, Vending Machine, Payment Terminal, GLONASS, Wireless Data Network
Product TypeAntenna
Manufacturer Part NumberLPAM-7-27-24-58-1S
Connector TypeSMA, RP-SMA
Form FactorPanel Mount
ManufacturerPanorama Antennas Ltd
Product NameL[G]AM-7-27-[X]24-58 Antenna
Product SeriesL[G]AM-7-27-[X]24-58
Brand NamePanorama Antennas
Height1.97"
Width1.73"
Depth5.91"
Antenna Gain26 dB
DirectivityOmni-directional
Product ColorBlack
Voltage Standing Wave Ratio (VSWR)<2:1 ± 4MHz
Color FamilyBlack
Operating Frequency Range698MHz - 960MHz, 1710MHz - 3800MHz, 1562MHz - 1612MHz, 4900MHz - 6000MHz
