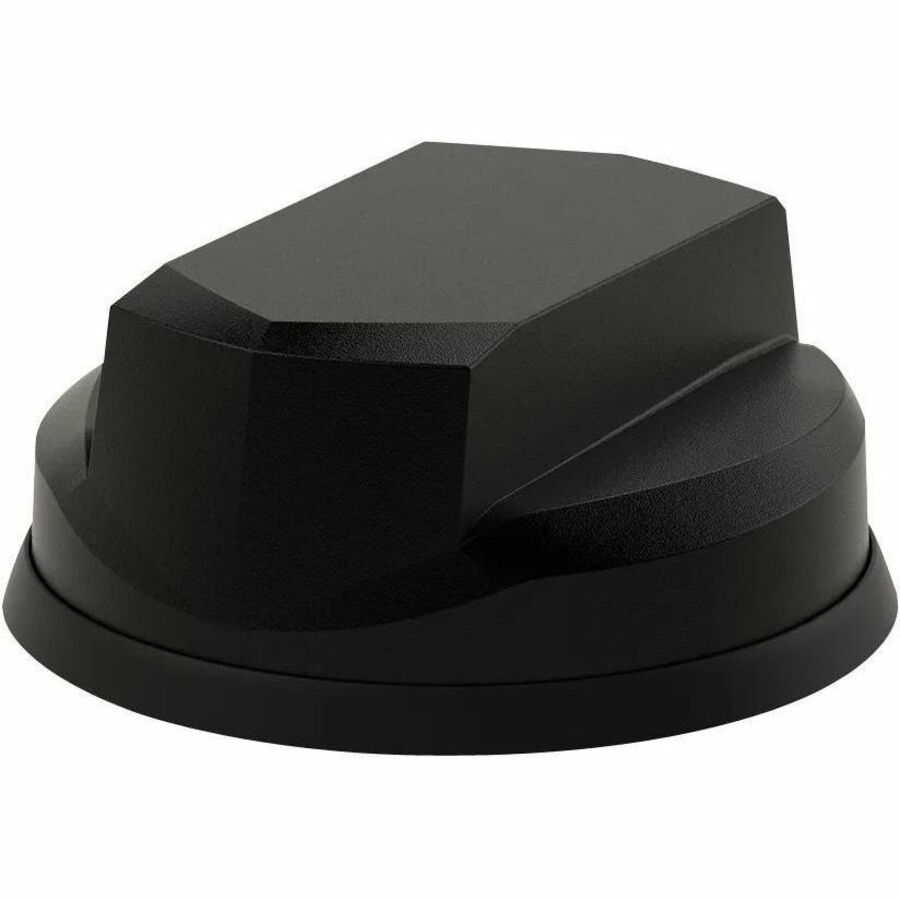

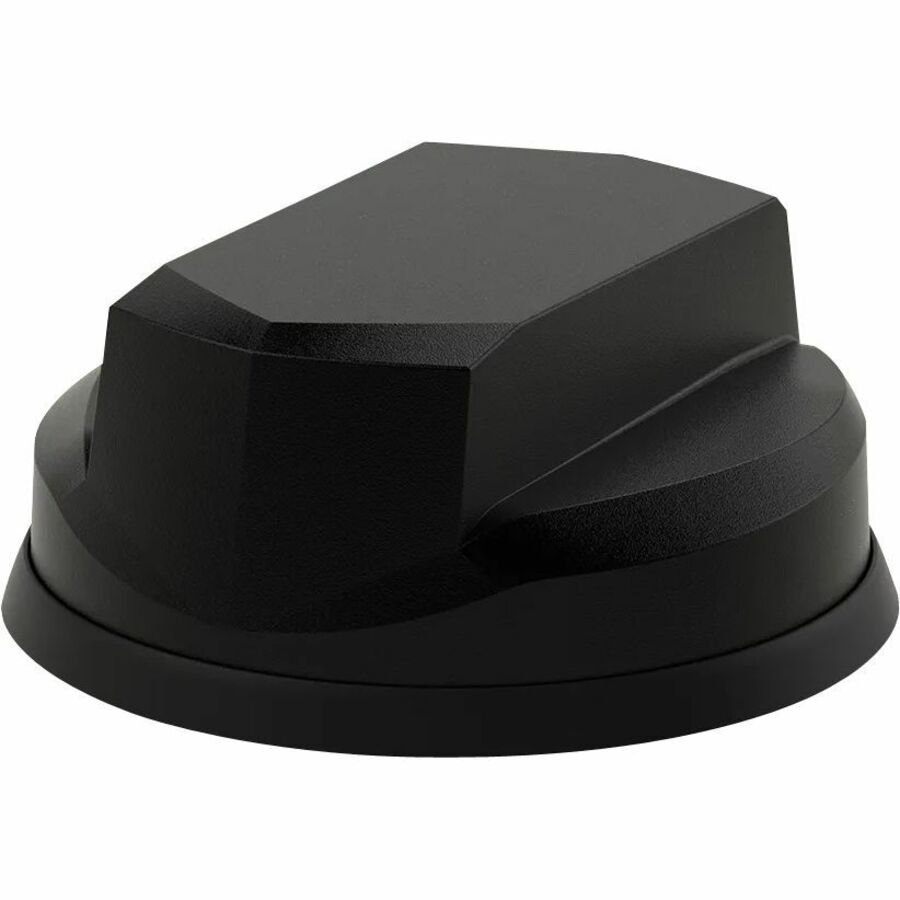

Panorama Antennas LG-IN2457 Antenna
617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 6.0 GHz, 1562 MHz to 1612 MHz - 9 dBi - Wireless Router, Cellular Network, GPS, Wireless Data Network - Black - Panel - Omni-directional - SMA Connector - TAA Compliant
- SKU
- LG-IN2457
- Category
- Antennas
MSRP$424.66
$316.97
Save 25%Back ordered — ships when restocked.
Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- LG-IN2457
- Category
- Antennas
Overview
The LG-IN2457 is a high performance 2x2 MiMo LTE, 2x2 MiMo Dual Band WiFi and GPS/GNSS active antenna covering 617-960/1710-6000MHz.
• Low profile antenna with 5 functions in 1
• 2x2 MiMo 4G/5G LTE cellular, 2x2 MiMo Dual Band WiFi and GPS/GNSS in one housing
• Kits with extension cables available for a range of LTE routers
• Suitable for Cradlepoint COR IBR900 Series Routers
The LG-IN2457 range has been designed to provide 2x2 4G/5G MiMo performance from 617-960/1710-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and 2x2 MiMo WiFi 2.4/5.0GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
Highlights
- Designed to operate at 617 MHz to 960 MHz operating frequency range
- Due to its broader casting range, it provides improved wireless router signals
- Eases up the installation procedure thanks to its 360-degree horizontal pattern
- Designed to be light in weight and easy to install
Specifications
| Application/Usage | Wireless Router, Cellular Network, GPS, Wireless Data Network |
|---|---|
| Product Type | Antenna |
| Compatibility | Cradlepoint COR IBR900 Series Routers |
| Manufacturer Part Number | LG-IN2457 |
| Connector Type | SMA |
| Form Factor | Panel |
| Manufacturer | Panorama Antennas Ltd |
| Product Model | LG-IN2457 |
| Product Name | LG-IN2457 Antenna |
| Brand Name | Panorama Antennas |
| Diameter | 7.09" |
| Height | 3.15" |
| Environmentally Friendly | Yes |
| Directivity | Omni-directional |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
| Operating Frequency Range | 617 MHz to 960 MHz, 1710 MHz to 6000 MHz, 2.4 GHz, 4.9 GHz to 6.0 GHz, 1562 MHz to 1612 MHz |
| Antenna Gain (Isotropic) | 9 dBi |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
