Panorama Antennas Reef Sharkee GPSD[X]4-7-49[X] Antenna
Panorama Antennas

Panorama Antennas Reef Sharkee GPSD[X]4-7-49[X] Antenna

698 MHz - 960 MHz, 1427 MHz - 4900 MHz - 30 dB - Cellular Network, GPS, Wireless Data Network, GLONASS - Black - Panel Mount, Whip - Omni-directional - SMA Connector

SKU
GP-IN2883
Category
Antennas

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
GP-IN2883
Category
Antennas

Overview

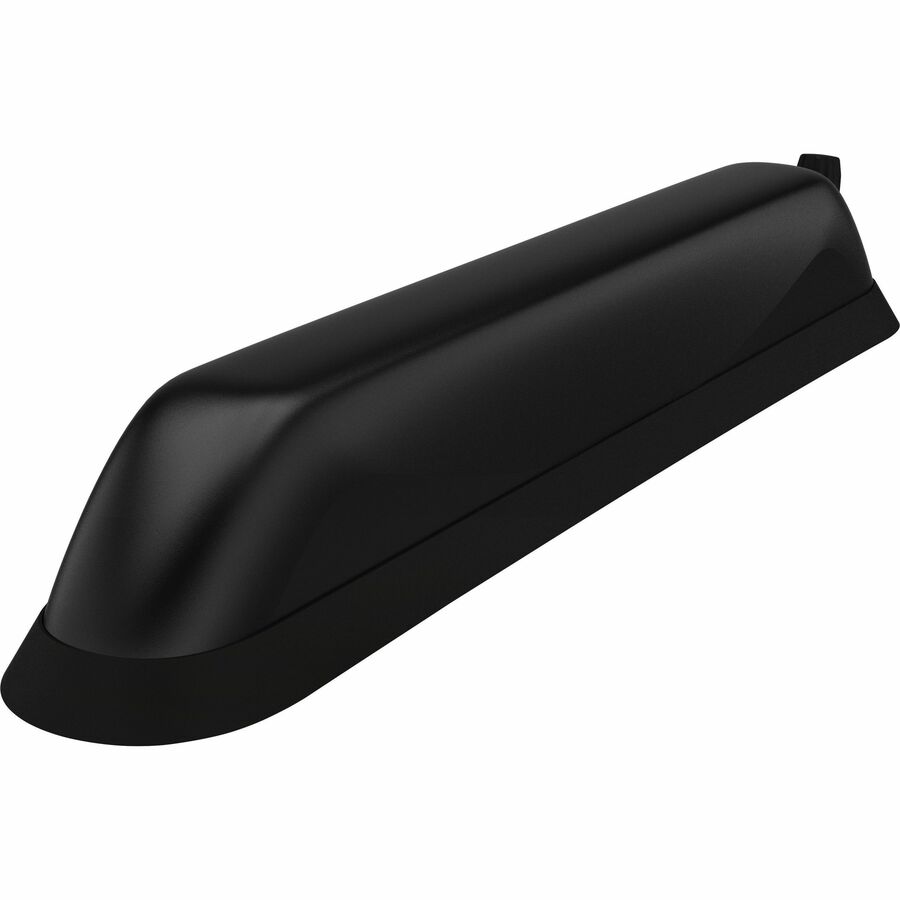

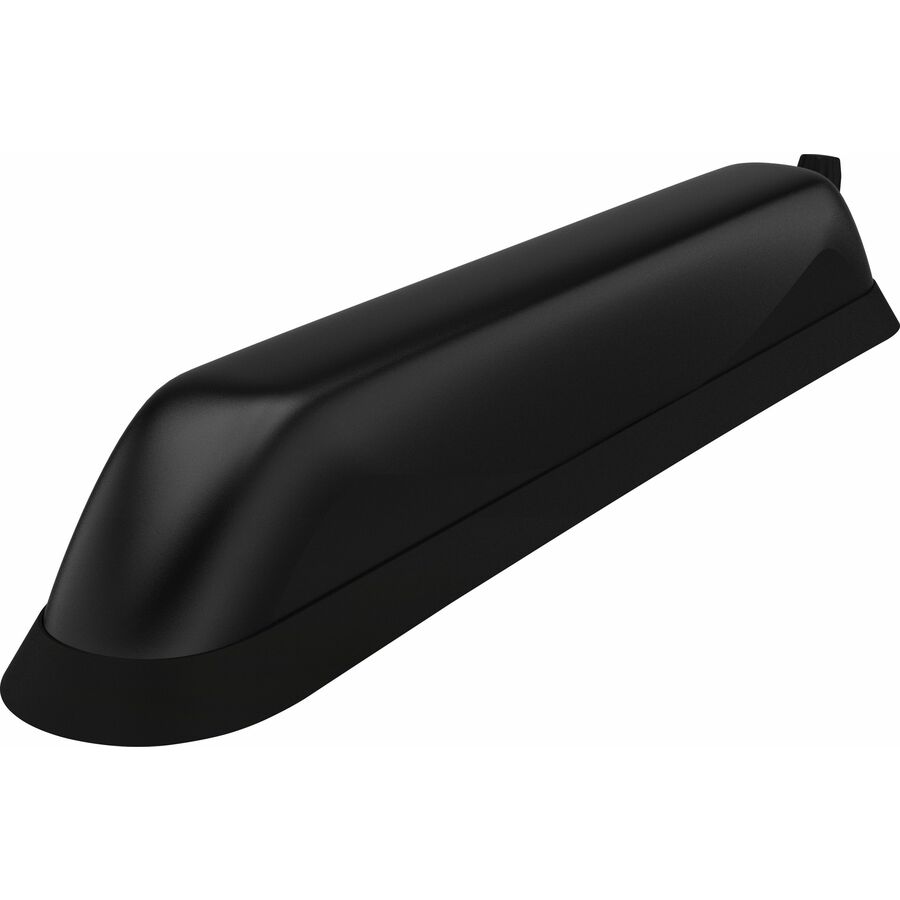

The GPSD[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module.

The whip position allows the use of a single, dual or tri-band whip operating across the VHF, UHF and 7/800MHz bands. The sleek sharkfin design has low visual impact and at only 52mm (2") high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications.

The GPSD[X]4-7-49[X] can be installed on conductive or non-conductive panels but installations with a whip require a conductive ground plane.

Highlights

  • Provides optimized pattern coverage with 698 MHz - 960 MHz frequency
  • Due to its broader casting range, it provides improved cellular network signals
  • Provides gain of up to 30 dB
  • Antenna can be mounted as panel mount

Specifications

Application/UsageCellular Network, GPS, Wireless Data Network, GLONASS
Package Contents
  • Reef Sharkee GPSD[X]4-7-49[X] Antenna
  • Low Loss Flame Retardant Pigtail Cables
Product TypeAntenna
Manufacturer Part NumberGP-IN2883
Connector TypeSMA
Form FactorPanel Mount, Whip
ManufacturerPanorama Antennas Ltd
Product NameReef Sharkee GPSD[X]4-7-49[X] Antenna
Product LineReef Sharkee
Product SeriesGPSD[X]4-7-49[X]
Brand NamePanorama Antennas
Height2.05"
Width2.36"
Depth14.37"
Antenna Gain30 dB
DirectivityOmni-directional
Product ColorBlack
Voltage Standing Wave Ratio (VSWR)<2.5:1
Color FamilyBlack
Operating Frequency Range698 MHz - 960 MHz, 1427 MHz - 4900 MHz
