Panorama Antennas GPS[X]D4[X]-6-60 | 4×4 MiMo 4G/5G Sharkfin Antenna
Panorama Antennas

Panorama Antennas GPS[X]D4[X]-6-60 | 4×4 MiMo 4G/5G Sharkfin Antenna

600 MHz to 6000 MHz - Cellular Network - Black - Stud Mount, Whip, Panel Mount, Magnetic Mount - Omni-directional - SMA Connector

SKU
FI-IN2682
Category
Antennas

MSRP$423.28

$316.71

Save 25%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FI-IN2682
Category
Antennas

Overview

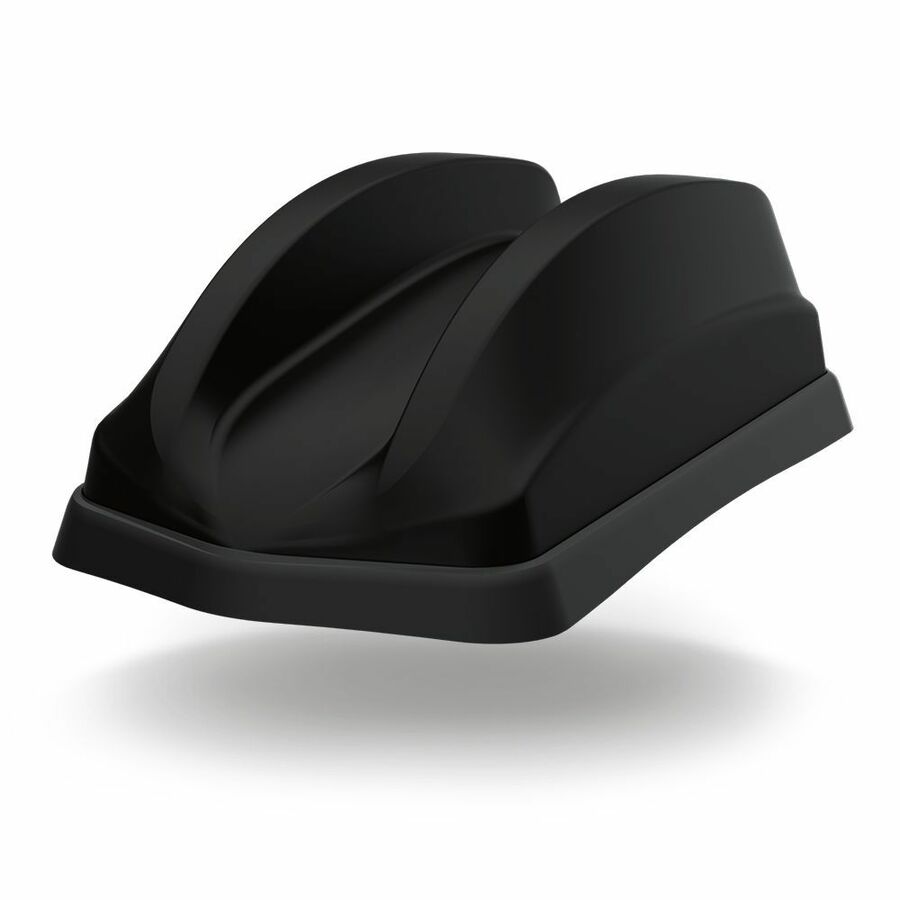

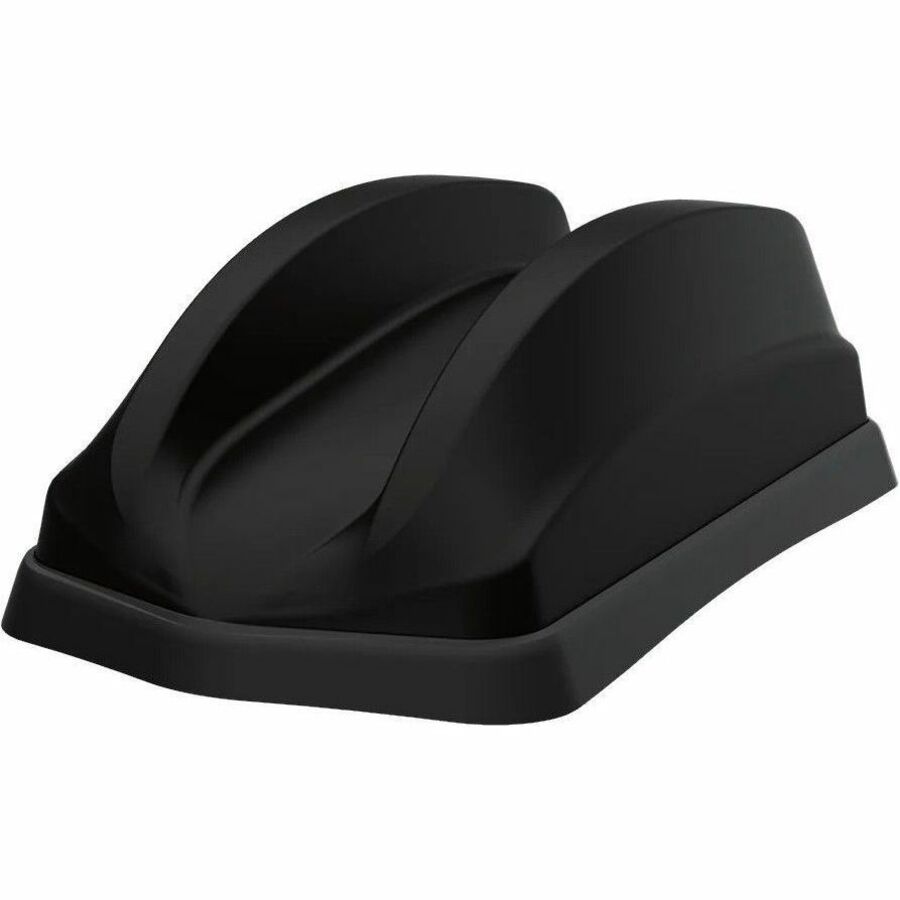

The GPS[X]D4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.

The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6×6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.

In addition, there is an integral stud mount for an external antenna whip. A blanking cap is supplied for when this whip position is not required.

The antenna should be installed on a metal panel when a comms whip is used, but if a whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost-effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle's resale value.

Highlights

  • Provides optimized pattern coverage with 600 MHz to 6000 MHz operating frequency range
  • With its strong connection and faster transfer speeds, this cellular network provides the best reception
  • Receive signals from multiple directions with this omnidirectional antenna
  • Even with its extremely durable design and weather resistant features, this flexible and thin antenna is easy to install

Specifications

Application/UsageCellular Network
Package Contents
  • GPS[X]D4[X]-6-60 | 4×4 MiMo 4G/5G Sharkfin Antenna
  • Blanking Cap
Product TypeAntenna
Manufacturer Part NumberFI-IN2682
Connector TypeSMA
Form FactorStud Mount, Whip, Panel Mount, Magnetic Mount
ManufacturerPanorama Antennas Ltd
Product NameGPS[X]D4[X]-6-60 | 4×4 MiMo 4G/5G Sharkfin Antenna
Product SeriesGPS[X]D4[X]-6-60[-X]
Brand NamePanorama Antennas
Height3.23"
Width5.59"
DirectivityOmni-directional
Product ColorBlack
Color FamilyBlack
Operating Frequency Range600 MHz to 6000 MHz
