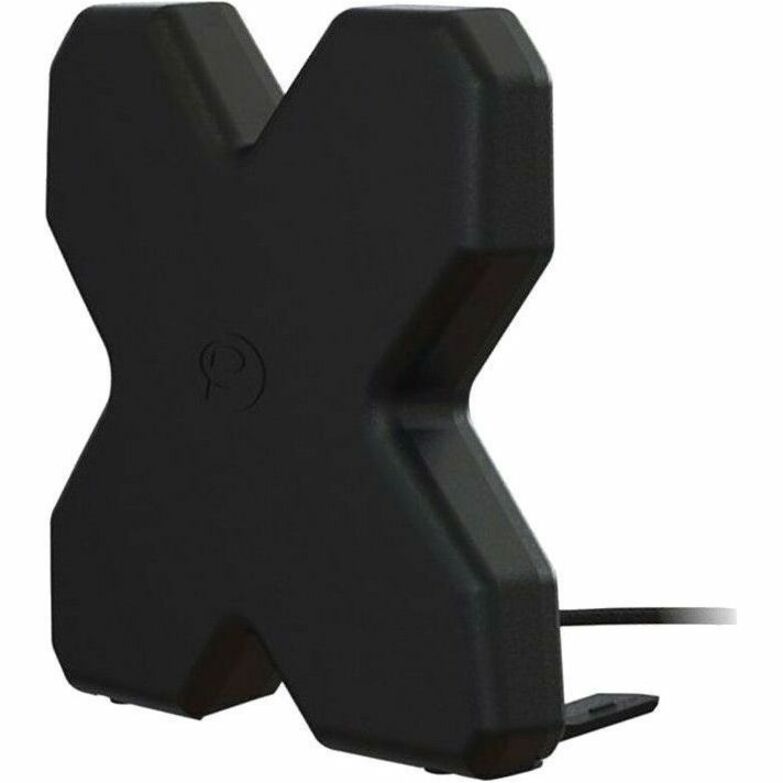

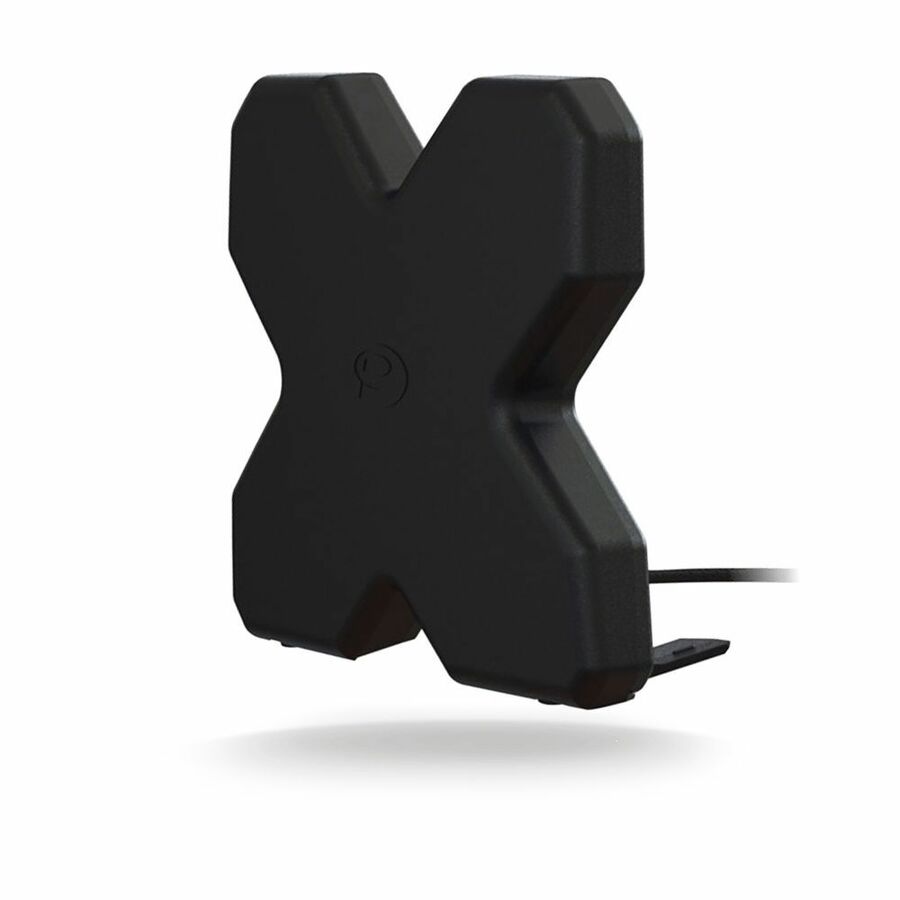

Panorama Antennas DMM-7-38 4G/5G MiMo Desk Mount Antenna
Panorama Antennas

Panorama Antennas DMM-7-38 4G/5G MiMo Desk Mount Antenna

698 MHz to 960 MHz, 1710 MHz to 3800 MHz - 5 dBi - Cellular Network - Jet Black - Desktop/Window - Omni-directional - TS9 Connector

SKU
DMM-7-38-2TS9
Category
Antennas

MSRP$56.07

$46.56

Save 17%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
DMM-7-38-2TS9
Category
Antennas

Overview

• Supports MiMo & diversity across 2G/3G/4G/5G

• Two omni-directional ultra wideband elements

• Fold out feet for desk mounting

• Optional suction on mount

The DMM antenna provides an innovative and future proof solution for 2G / 3G / 4G and 3.5GHz 5G networks. Incorporating two separately fed ultra wideband elements in a single housing the DMM is equipped to provide portable MiMo and diversity support for the networks of today and tomorrow.

The DMM is highly portable and features desk mount feet which fold out for use, and flat for transport. A handy suction window mount enables users to optimise their signal in multiple locations, with instant installation and easy removal.

The product is supplied with up to 2 metres (6') of cable and a variety of connectors are available.

The DMM is an cost effective value added product for network operators and service providers ensuring a stable link with improved data rates for subscribers thereby improving satisfaction and retention.

Highlights

  • Designed to operate at 698 MHz to 960 MHz operating frequency range
  • This antenna is ideal for use and provide connectivity to your cellular network
  • Provides ease of management and installation thanks to its omni-direction feature
  • Antenna can be mounted as desktop/window

Specifications

Application/UsageCellular Network
Package Contents
  • DMM-7-38 4G/5G MiMo Desk Mount Antenna
  • 2m Cable
Product TypeAntenna
Manufacturer Part NumberDMM-7-38-2TS9
Weight (Approximate)8.82 oz
Connector TypeTS9
Form FactorDesktop/Window
ManufacturerPanorama Antennas Ltd
Product ModelDMM-7-38
Product NameDMM-7-38 4G/5G MiMo Desk Mount Antenna
Brand NamePanorama Antennas
Height5.39"
Width5.94"
DirectivityOmni-directional
Product ColorJet Black
Voltage Standing Wave Ratio (VSWR)< 2.5:1
Color FamilyBlack
Operating Frequency Range698 MHz to 960 MHz, 1710 MHz to 3800 MHz
Antenna Gain (Isotropic)5 dBi
