Panorama Antennas MiMo 4G/5G Omni Antenna
Panorama Antennas

Panorama Antennas MiMo 4G/5G Omni Antenna

617 MHz to 960 MHz, 1427 MHz to 6000 MHz - 6 dBi - Cellular Network, Marine, Modem, Router, Wireless Data Network, GPS - White - Mast/Wall/Railing, Panel Mount - Omni-directional - SMA Connector

SKU
BSGM-6-60-5SP
Category
Antennas

MSRP$220.50

$166.10

Save 25%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Panorama Antennas through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
BSGM-6-60-5SP
Category
Antennas

Overview

• 2x2 MiMo 4G/5G antenna solution

• Wall, rail or mast mount

• Optional GPS/GNSS - 26dB LNA

• Integrated coaxial cables

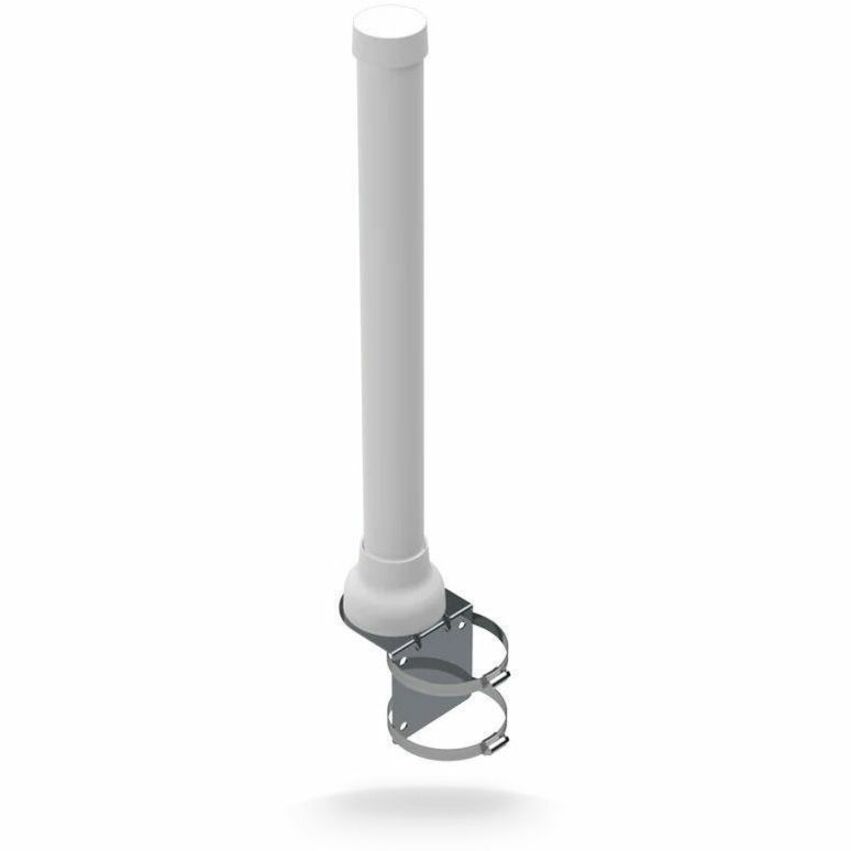

The BS[G]M-6-60 antenna is a MiMo omni-directional broad band antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz and is suitable for external or internal installation.

The mounting bracket enables simple walll mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps

The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.

The BSGM type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.

This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion resistant design also makes the antenna suitable for certain marine and costal applications.

Highlights

  • Delivers?enhanced performance at 617 MHz to 960 MHz operating frequency range
  • Widely used in cellular network
  • Eases up the installation procedure thanks to its 360-degree horizontal pattern
  • Can be mounted using either a mast, wall or railing

Specifications

Application/UsageCellular Network, Marine, Modem, Router, Wireless Data Network, GPS
Product TypeAntenna
Manufacturer Part NumberBSGM-6-60-5SP
Connector TypeSMA
Form FactorMast/Wall/Railing, Panel Mount
ManufacturerPanorama Antennas Ltd
Product NameMiMo 4G/5G Omni Antenna
Product SeriesBS[G]M-6-60
Brand NamePanorama Antennas
Diameter3.39"
Height21.26"
DirectivityOmni-directional
Product ColorWhite
Voltage Standing Wave Ratio (VSWR)<2.5:1
Color FamilyWhite
Operating Frequency Range617 MHz to 960 MHz, 1427 MHz to 6000 MHz
Antenna Gain (Isotropic)6 dBi
