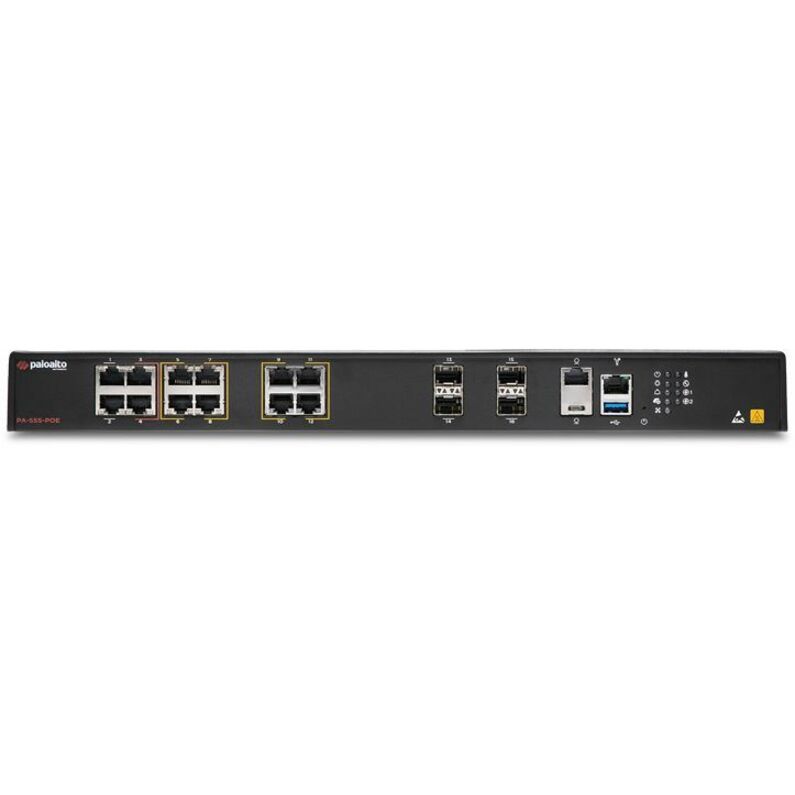

Palo Alto PA-555-POE Network Security/Firewall Appliance
Wired - AI-powered Security - 12 Port - Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet - 7.50 Gbit/s Firewall Throughput - 3DES, AES (128-bit), AES (192-bit), AES (256-bit), MD5, SHA-1, SHA-256, SHA-384, SHA-512, TLS - 4 x RJ-45 - 4 Total Expansion Slots - 50 Hz, 60 Hz - 1U - Rack-mountable
- SKU
- PAN-PA-555-POE
- Category
- Network Security & Firewalls
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Palo Alto Networks through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PAN-PA-555-POE
- Category
- Network Security & Firewalls
Overview
Palo Alto Networks PA-500 Series Next-Generation Firewalls (NGFWs) comprise the PA-505, PA-510, PA520, PA-540, PA-545-POE, PA-550, PA-555-POE, and PA-560 models. This series brings ML-powered NGFW capabilities to distributed enterprise branch offices, retail locations, and midsize businesses.
The controlling element of the PA-500 Series NGFWs is PAN-OS®, the same software that runs all Palo Alto Networks NGFWs. PAN-OS natively classifies all traffic, inclusive of applications, threats, and content, and then ties that traffic to the user regardless of location or device type. The application, content, and user-the elements that run your business-serve as the basis of your security policies, resulting in an improved security posture and reduced incident response time. PAN-OS embeds machine learning (ML) in the core of the firewall to provide inline signatureless attack prevention for filebased attacks while identifying and immediately stopping never-before-seen phishing attempts.
Warranty
Limited Warranty: 1 Year
Highlights
- High-performance enterprise branch NGFW series.
- Powered by Precision AI®, a groundbreaking AI-driven engine that analyzes and prevents threats in real time.
- High port density with up to 24 copper and fiber interfaces.
- Up to 330W Power over Ethernet (PoE) support.
- IEEE 802.3bt support with a maximum of 90W of power per PoE port.
- Simplifies deployment with Zero Touch Provisioning (ZTP).
- Supports high availability with active/active and active/passive modes.
- Built with a single-pass architecture to deliver predictable performance with security services.
- Managed with Strata? Cloud Manager, the industry's first AI-powered unified management and operations solution for network security
- Leader in the 2025 Gartner® Magic Quadrant? for Hybrid Mesh Firewall.
Specifications
| Product Type | Network Security/Firewall Appliance |
|---|---|
| Firewall Protection Supported | Threat Protection, Application Firewall, SSL Encrypted Traffic Protection, User Authentication, Data Loss Prevention, URL Filtering, DNS Security, Secure IPsec VPN Connectivity, IoT Security, SaaS Security, Intrusion Prevention, Advanced Threat Protection, Malware Protection, Web Protection, Zero Day Event, Antivirus, Anti-spyware, Anti-phishing |
| Manufacturer Part Number | PAN-PA-555-POE |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 13.50 lb |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Frequency | 50 Hz, 60 Hz |
| Manufacturer | Palo Alto Networks |
| Product Model | PA-555-POE |
| Product Name | PA-555-POE Network Security/Firewall Appliance |
| Power Consumption | 503 W |
| Product Series | PA-500 |
| Brand Name | Palo Alto |
| Expansion Slot Type | SFP (mini-GBIC), SFP+ |
| Height | 1.7" |
| Width | 16.1" |
| Depth | 12.4" |
| Manageable | Yes |
| Compatible Rack Unit | 1U |
| VPN Throughput | 576 MB/s |
| Encryption Standard | 3DES, AES (128-bit), AES (192-bit), AES (256-bit), MD5, SHA-1, SHA-256, SHA-384, SHA-512, TLS |
| Firewall Throughput | 7.50 Gbit/s |
| Ethernet Technology | Gigabit Ethernet, 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| USB | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Number of SFP Slots | 2 |
| Number of SFP+ Slots | 2 |
| Number of PoE (RJ-45) Ports | 8 |
| Functionality | AI-powered Security |
| Total Number of Ports | 12 |
| PoE (RJ-45) Port | Yes |
| Total Number of Expansion Slots | 4 |
| Data Link Protocols | HTTP, HTTP/2 |
| Number of Concurrent Sessions (Max) | 448000 |
| AI-powered | Yes |
| AI Features | Threat Prevention, Security |
