Omnitron Systems OmniConverter GLPoE/Sx Unmanaged Single Pair Power Over Ethernet Switch
4 Ports - Gigabit Ethernet - 10Base-T1L, 1000Base-X - 2 Layer Supported - Single-mode, Multi-mode - 2 SFP Slots - Twisted Pair, Optical Fiber - Compact, Wall Mountable, Rack-mountable, DIN Rail Mountable - 5 Year Limited Warranty - TAA Compliant
- SKU
- 2931-0-40-1
- Category
- Switches & Bridges
MSRP$2,299.00
$1,682.52
Save 27%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 2931-0-40-1
- Category
- Switches & Bridges
Overview

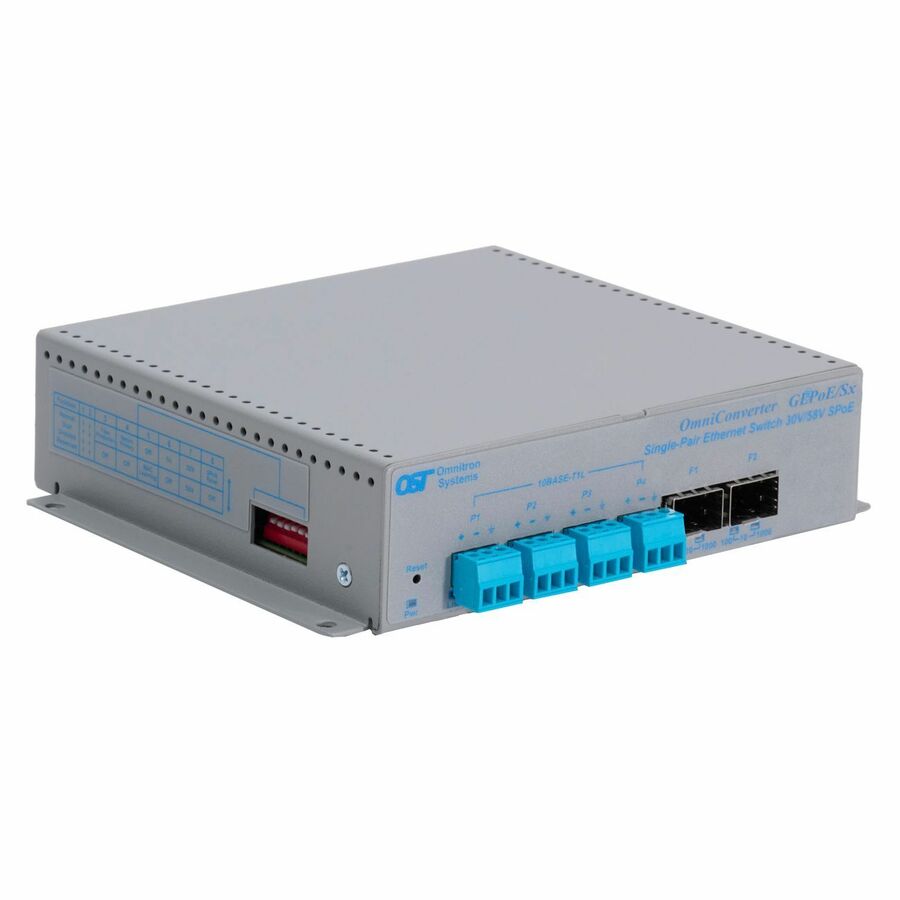

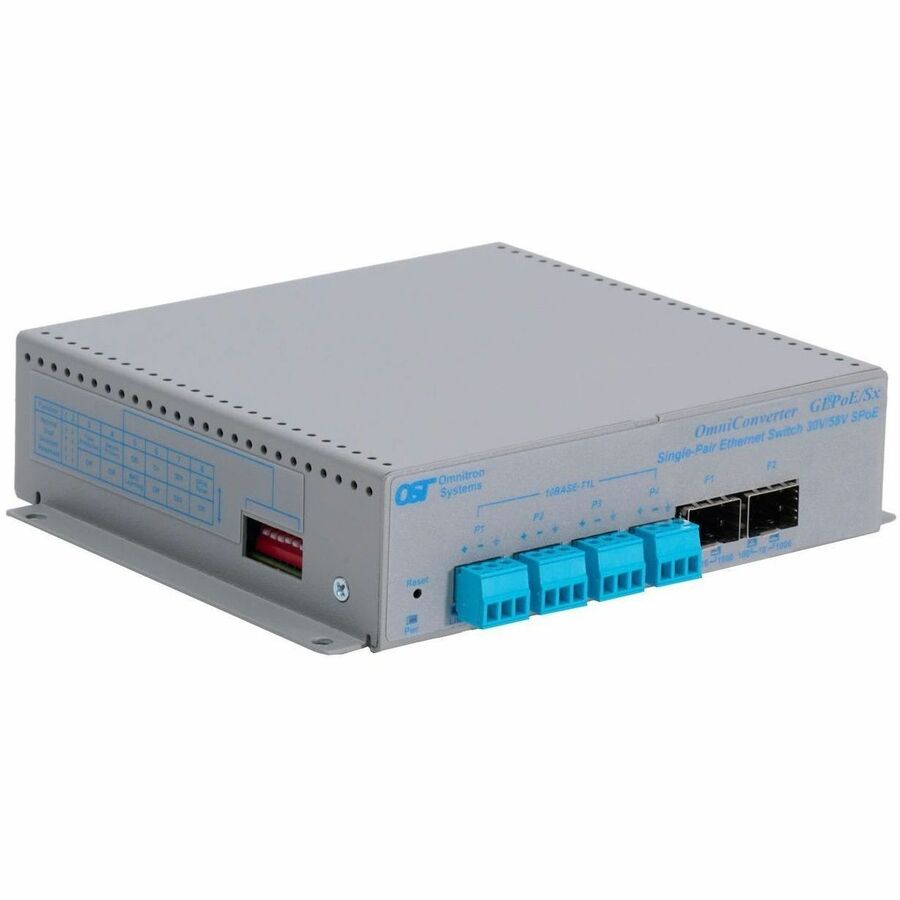

The OmniConverter GLPoE/Sx is an unmanaged Single Pair Power over Ethernet (SPoE) switch that is IEEE 802.3cg compliant and features copper or fiber uplink ports and four single-pair 10BASE-T1L copper SPoE user ports.
The Single Pair Power over Ethernet switch features four IEEE 802.3cg compliant 10BASE-T1L 3-pin SPoE terminal ports or IEC 63171-2 SPoE ports and two 10/100/1000 RJ-45 or 100/1000 fiber SFP uplink ports.
The GLPoE/Sx SPoE user ports detect and classify 30VDC class 10 - 12 and 58VDC class 13 -15 powered devices through DIP-switch selection. It operates as a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
The switch supports Dual Device mode, Directed Switch mode and Redundant Uplinks.
Dual Device mode enables the module to operate as two independent and isolated Ethernet switches. In Dual Device mode, the GLPoE/Sx provides separate and independent data traffic paths between the two uplink ports and four user ports.
Directed Switch mode directs multicast traffic (such as video) only to the appropriate uplink port, preventing the multicast video traffic from flooding other network ports. Redundant fiber or copper uplinks provide protection and restoration for critical applications. In the event of a failure on the primary uplink port, the switch will failover to the secondary uplink port. Once the failed uplink port has been restored, the switch will return to the primary uplink port. For daisy-chain applications, the second uplink port can be used to cascade multiple switches.
The GLPoE/Sx modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the switch for ease of identification and use.
The switch is available with Small Form Pluggable (SFP) transceiver receptacle ports or 10/100/1000 RJ-45 ports. The SFP ports support 10/100/1000BASE-T and 1000BASE-T copper transceivers and 100Mbps and 1000Mbps standard, CWDM and DWDM fiber transceivers in a variety of distances and fiber types.
The switches can be wall mounted, rack mounted using a shelf (8260-0) or DIN-rail mounted using the DIN-rail mounting clips (8251-0). The switch is available with an external 100 to 240V AC power adapter or with a DC terminal connector. For more info visit https://www.omnitron-systems.com
Highlights
- Unmanaged IEEE 802.3cg Single-Pair Power over Ethernet (SPoE) Switch
- Dual Device mode for operating as two separate switches
- Directed Switch mode prevents flooding of multicast traffic
- Uplink redundancy
- Four IEEE 802.3cg Single-Pair Power over Ethernet SPoE 30/58VDC user ports
- Supports 3-Pin SPE Terminal connector or IEC 63171-2 SPE connector
- Two SFP or two 10/100/1000 RJ-45 uplink ports
- Supports 10/100/1000 and 1G copper SFP transceivers
- Supports 100Mbps and 1000Mbps fiber SFPs
- AC to DC Power Adapter or 2-Pin DC terminal
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | 2931-0-40-1 |
| Power Source | Power Supply, AC/DC, Power Adapter |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 2.01 lb |
| Form Factor | Compact, Wall Mountable, Rack-mountable, DIN Rail Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 2931-0-40-1 |
| Product Name | OmniConverter GLPoE/Sx Unmanaged Single Pair Power Over Ethernet Switch |
| Network Technology | 10Base-T1L, 1000Base-X |
| Package Type | Retail |
| Product Line | OmniConverter |
| Product Series | GLPoE/Sx |
| Brand Name | Omnitron Systems |
| Expansion Slot Type | SFP |
| Country of Origin | United States |
| Height | 1.5" |
| Width | 6.3" |
| Depth | 5.2" |
| Manageable | No |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Uplink Port | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode, Multi-mode |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 4 x 10BASE-T1L SPoE, 2 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 2 |
| TAA Compliant | Yes |
| Networking Standards | IEEE 802.3, IEEE 802.3cg |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Fiber Optic Cable Core/Cladding Specification | 50/125 µm, 62.5/125 µm, 9/125 µm |
