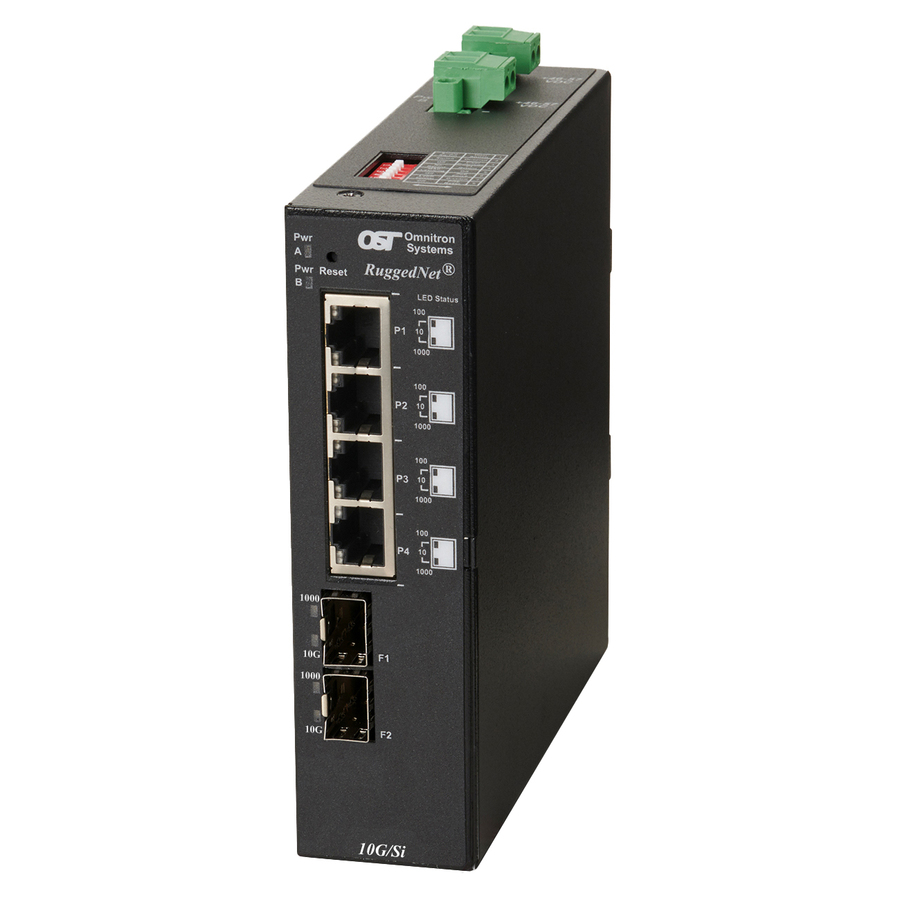

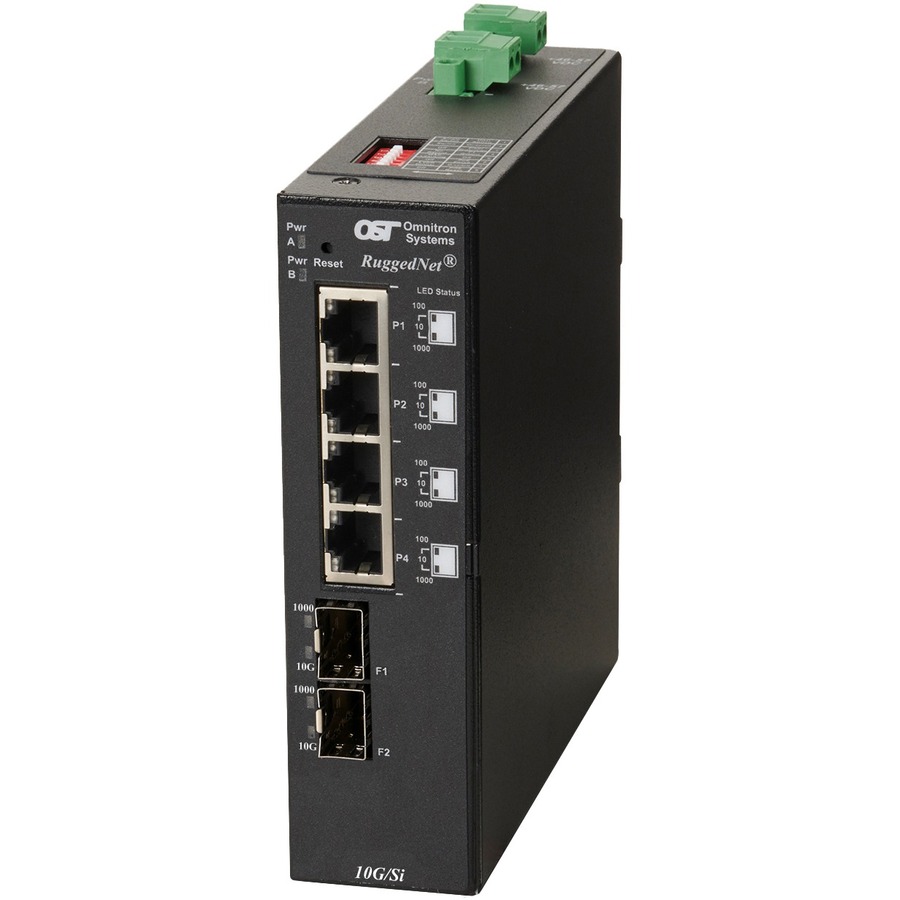

Omnitron Systems RuggedNet 10G/Si, 2xSFP/SFP+, 4xRJ-45, 2xDC Powered Industrial Temp
6 Ports - 2 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable - 5 Year Limited Warranty
- SKU
- 2903-0-24-2Z
- Category
- Switches & Bridges
MSRP$1,789.39
$1,309.92
Save 27%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 2903-0-24-2Z
- Category
- Switches & Bridges
Overview
The RuggedNet 10G/Si is a ruggedized unmanaged industrial Ethernet switch that features two 1/10G uplink ports and four 10/100/1000 RJ-45 copper user ports. The RuggedNet 10G/Si enables industrial network distance extension with fiber cabling.
The RuggedNet 10G/Si is a Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
All models support Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate uplink port, preventing multicast traffic from flooding other network ports.
The switches support daisy-chain configurations and redundant uplinks for critical applications that require protection and sub 50ms restoration in the event of an uplink failure.
The switches support Dual Device mode that enables the 10G/Si to operate as two independent and isolated Ethernet switches. In Dual Device mode, the 10G/Si provides separate and independent data traffic paths between each uplink port and a group of user ports.
The 10G/Si modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the side of the RuggedNet for ease of identification and use.
The RuggedNet switches are available with Small Form Pluggable (SFP) transceiver receptacle ports. The SFP ports support 10/100/1000BASE-T, 1000BASE-T and 10GBASE-T copper transceivers. They also support 1G and 10G multimode or single-mode fiber, dual or single-fiber and standard or CWDM wavelengths.
The RuggedNet compact industrial Ethernet switches can be wall or rack mounted using a wall mount bracket and shelf or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
Highlights
- Effectively reduces downtime with improved network performance
- Terminal Block (2 Wire) plug/connector type for convenient usage with added dependability
- Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2903-0-24-2Z |
| Packaged Quantity | 1 |
| Power Source | DC |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 1.70 lb |
| Form Factor | Wall Mountable, DIN Rail Mountable, Shelf Mountable, Rack-mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 2903-0-24-2Z |
| Product Name | RuggedNet 10G/Si, 2xSFP/SFP+, 4xRJ-45, 2xDC Powered Industrial Temp |
| Network Technology | 10/100/1000Base-T, 1000Base-BX10-D, 1000Base-LX, 1000Base-X, 1000Base-LX10, 1000Base-BX-D, 1000Base-ZX, 1000Base-BX10-U, 1000Base-BX, 1000Base-LX/SX, 1000Base-LX/LH, 1000Base-SX/LX, 1000Base-BX-U, 1000Base-SX, 10GBase-SR, 10GBase-LR, 10GBase-LRM, 10GBase-ER, 10GBase-ZR |
| Package Type | Retail |
| Product Line | RuggedNet |
| Product Series | 10G/Si |
| Brand Name | Omnitron Systems |
| Plug/Connector Type | Terminal Block (2 Wire) |
| Expansion Slot Type | SFP+ |
| Country of Origin | United States |
| Height | 5.5" |
| Width | 1.5" |
| Depth | 5.5" |
| Manageable | No |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet |
| Number of SFP+ Slots | 2 |
| Modular | Yes |
| Uplink Port | Yes |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Total Number of Network Ports | 6 |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet PoE+, 2 x 10 Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 2 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
