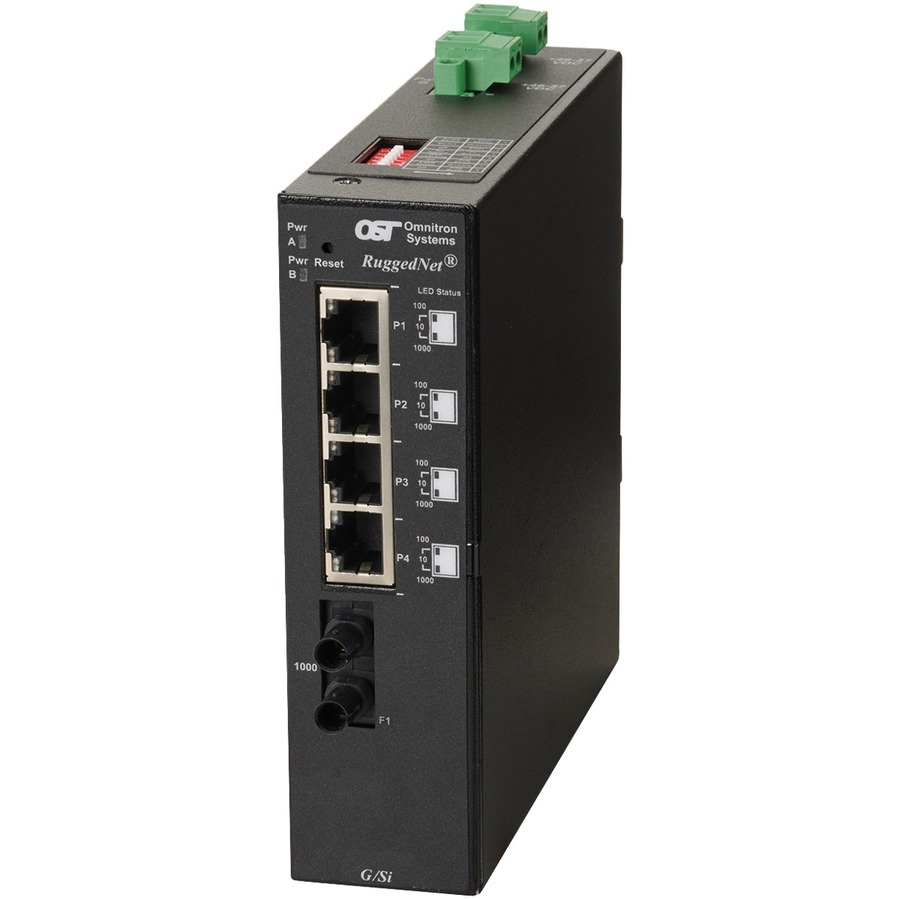

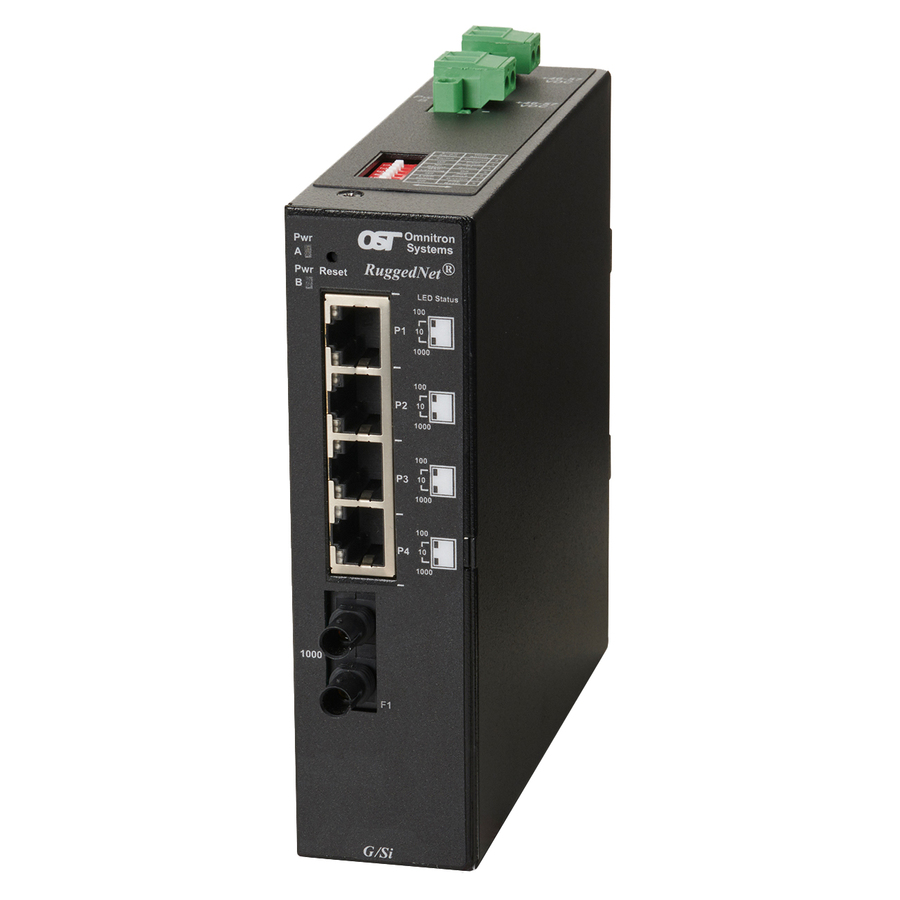

Omnitron Systems RuggedNet Unmanaged Ruggedized Industrial Gigabit, MM ST, RJ-45, Ethernet Fiber Switch
4 x 10/100/1000BASE-T, 1 x 1000BASE-X, 2xDC Power, 5 Year Warranty
- SKU
- 2880-0-14-2Z
- Category
- Switches & Bridges
MSRP$1,489.43
$1,094.59
Save 27%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 2880-0-14-2Z
- Category
- Switches & Bridges
Overview
The RuggedNet G/Si is an unmanaged ruggedized Industrial Ethernet gigabit fiber switch that features one or two Gigabit fiber ports and four or eight 10/100/1000 RJ-45 copper ports. The RuggedNet G/Si enables industrial network distance extension with fiber cabling.
The RuggedNet G/Si is a standard Layer 2 Ethernet switch that forwards frames to any port based on their MAC address.
The RuggedNet G/Si supports Directed Switch mode, which directs multicast traffic (such as video) only to the appropriate fiber port, preventing the multicast video traffic from flooding other network ports.
Models with two fiber ports support redundant fiber uplinks for critical applications that require protection and sub 50ms restoration in the event of a fiber failure. The second fiber port may also be used to daisy-chain multiple Ethernet switches, or it may be used as another switch port.
Models with two fiber ports also support Dual Device mode that enables the G/Si to operate as two independent and isolated Ethernet switches. In Dual Device mode, the G/Si provides separate and independent data traffic paths between the two fiber links and four or eight RJ-45 ports.
The RuggedNet G/Si modes of operation can be configured using easily accessible DIP-switches. Each DIP-switch function is labeled on the top of the RuggedNet for ease of identification and use.
The RuggedNet G/Si is available with fixed ST, SC, and LC connectors or Small Form Pluggable (SFP) transceiver receptacles. Fiber ports support multimode or single-mode and dual fiber or single-fiber with distances up to 140 km. SFP models support a variety of distances in standard and CWDM wavelengths.
The compact RuggedNet Ethernet switches can be wall mounted with an optional wall mount bracket or DIN-rail mounted using the included DIN-rail mounting clip. They are available with single or dual DC input power options.
Highlights
- Effectively reduces downtime with improved network performance
- Quickly and easily set up a wired network with 5 networking ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Specifications
| Package Contents |
|
|---|---|
| Product Type | Ethernet Switch |
| Manufacturer Part Number | 2880-0-14-2Z |
| Packaged Quantity | 1 |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 1.70 lb |
| Form Factor | DIN Rail Mountable, Wall Mountable, Rack-mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 2880-0-14-2Z |
| Product Name | RuggedNet G/Si, 1xMM ST + 4xRJ-45, 2xDC Powered Extended Temp |
| Network Technology | 1000Base-T, 1000Base-SX |
| Package Type | Retail |
| Product Line | RuggedNet |
| Product Series | G/Si |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 5.1" |
| Width | 1.5" |
| Depth | 5.5" |
| Manageable | No |
| Environmentally Friendly | Yes |
| Ethernet Technology | Gigabit Ethernet |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Total Number of Network Ports | 5 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
