Omnitron Systems iConverter 2420-0-32 T1/E1 Multiplexer
1 Gbit/s - 4
- SKU
- 2420-0-32
- Category
- Multiplexers
MSRP$4,195.00
$3,066.34
Save 27%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 2420-0-32
- Category
- Multiplexers
Overview

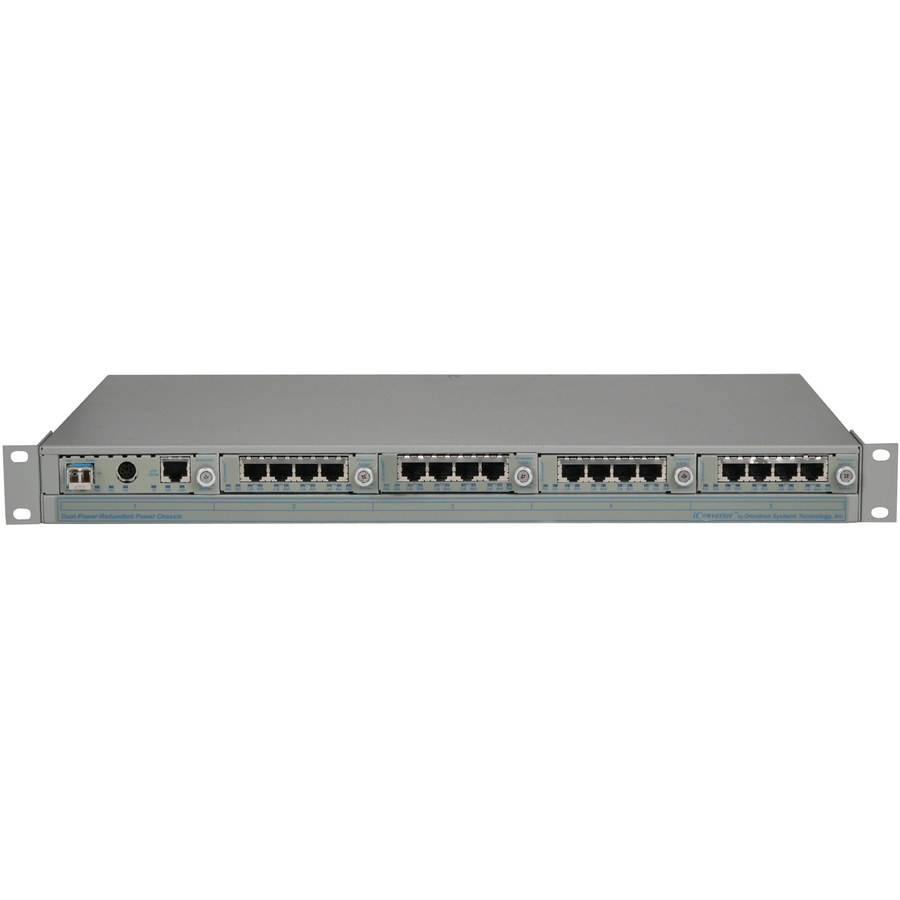

The iConverter T1/E1 MUX/M multiplexes up to sixteen T1 or E1 circuits and one 10/100/1000 Ethernet service onto a fiber optic transport link, and features remotely managed testing and configuration capabilities.
The iConverter T1/E1 MUX/M operates in a back-to-back configuration, and can be used in applications such as multiple T1/E1 extension, mobile backhaul and building-to-building PBX connectivity.
The T1/E1 copper interfaces are available in 4, 8, 12 or 16 RJ-48 port configurations for balanced T1/E1 applications. Optional adapter cables are available to convert each RJ-48 interface to a BNC interface for unbalanced E1 transport applications.
Additional hot-swappable 4-Port T1/E1 MUX modules can be installed to increase system capacity up to 16 T1/E1 ports maximum per 1U (1.75 inch) chassis.
Specifications
| Package Contents |
|
|---|---|
| Product Type | Data Multiplexer |
| Manufacturer Part Number | 2420-0-32 |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 9 lb |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 2420-0-32 |
| Product Name | iConverter 2420-0-32 T1/E1 Multiplexer |
| Product Line | iConverter |
| Rack Height | 1U |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1.8" |
| Width | 17.2" |
| Depth | 9" |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Number of ST Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Network Technology Supported | 10/100/1000Base-T, 1000Base-X |
| Total Number of Expansion Slots | 4 |
