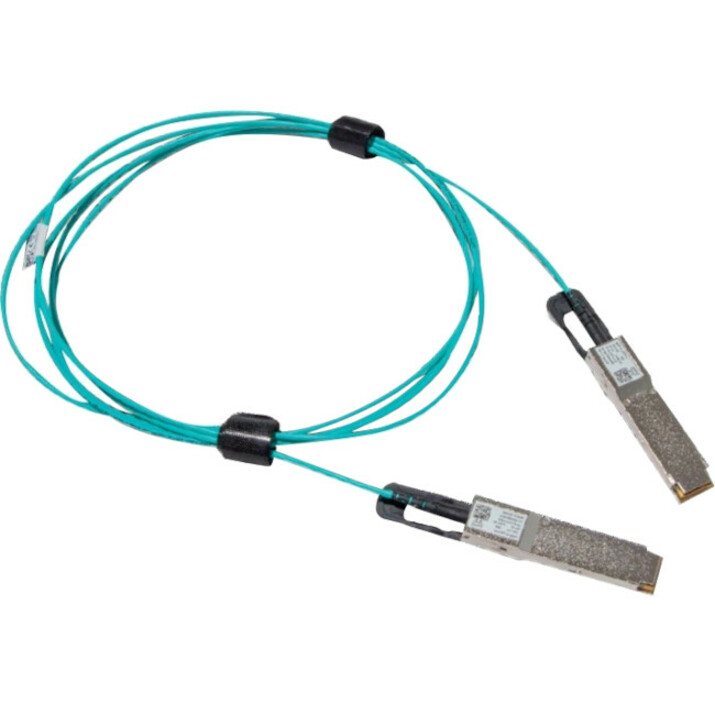

Mellanox AOC Cable IB HDR up to 200Gb/s QSFP56 20m
Fiber Optic Network Cable for Network Device, Transmitter, Receiver - First End: 1 x SFF-8665 QSFP56 Network - Second End: 1 x SFF-8665 QSFP56 Network - 200 Gbit/s - LSZH - Black, Aqua
- SKU
- MFS1S00-H020E
- Category
- Connector Cables
MSRP$5,871.82
$5,076.06
Save 14%Back ordered — ships when restocked.
Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MFS1S00-H020E
- Category
- Connector Cables
Overview

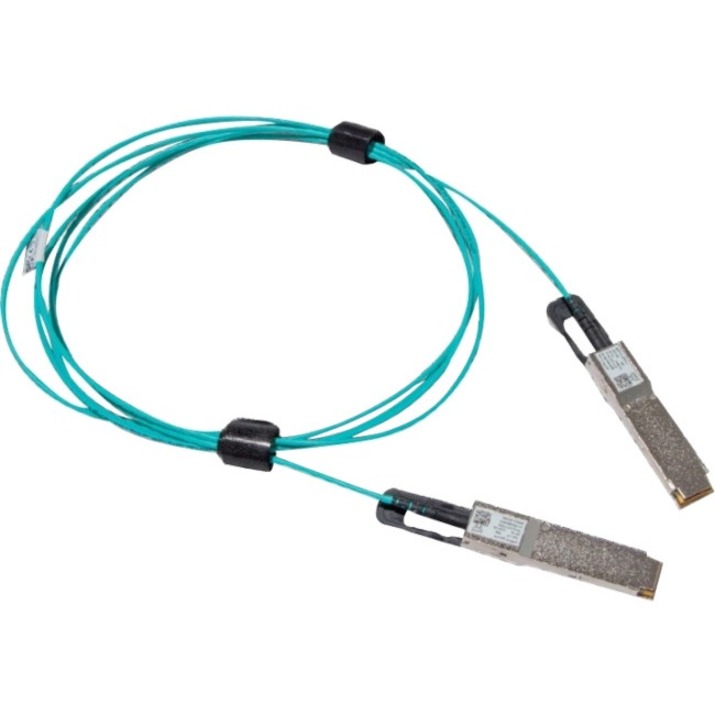

NVIDIA MFS1S00-H020E Active Optical Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH Black Pulltab 20m 200Gb/s HDR QSFP56 MMF Active Optical Cable
NVIDIA Networking MFS1S00-HxxxE is a QSFP56 VCSEL-based (Vertical Cavity Surface-Emitting Laser) active optical cable (AOC) designed for use in 200Gb/s InfiniBand HDR systems. The MFS1S00-HxxxE AOC offers high port density and configurability, and a much longer reach than passive copper cables in the data centers. Since the AOC is hot pluggable, it is easy to install and replace.
MFS1S00-HxxxE has a standard SFF-8665 compliant QSFP56 port on the electrical side towards the host system. It contains four multi-mode fibers (MMF) optic transceivers per end; each operating at data rates of up to 50Gb/s. MFS1S00-HxxxE offers selectable retiming per lane for both its optical transmitters and receivers up to 50Gbp/s rates.
Rigorous production testing ensures the best out-of-the-box installation experience, performance and durability. unique quality active fiber cable solutions provide power-efficient connectivity for data center interconnects. They enable higher port bandwidth, density and configurability at a low cost, and reduced power requirement in the data centers.
Highlights
• Supports IBTA InfiniBand HDR
• Up to 200Gb/s data rate
• 4x 50Gb/s PAM4 modulation
• Programmable Rx output amplitude and pre-emphasis
• SFF-8665 compliant QSFP56 port
• Single 3.3V power supply
• 4.35W power dissipation (typ., each end with retiming)
• Bit Error Rate (BER) better than 1E-15
• Up to 150m length
• Hot pluggable
• RoHS compliant
• SFF-8636 compliant I2C management interface
Highlights
- This network cable provides splendid performance and clear connectivity
- Features fiber optic cable type to better accommodate your precise power supply requirements with maximum charging productivity
- HDR Support feature for your convenience and ease of usage
- Network Device device supported for better reliance and optimal performance
Specifications
| Cable Length | 65.62 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 200 Gbit/s |
| Device Supported | Network Device, Transmitter, Receiver |
| Jacket Type | LSZH |
| Manufacturer Part Number | MFS1S00-H020E |
| Limited Warranty | 1 Year |
| Features | HDR Support, AOC Technology, Bendable |
| Manufacturer | NVIDIA Corporation |
| Product Name | AOC Cable IB HDR up to 200Gb/s QSFP56 20m |
| Product Line | LinkX |
| Brand Name | Mellanox |
| Environmentally Friendly | Yes |
| Cable Type | Fiber Optic |
| Connector Type on First End | SFF-8665 QSFP56 Network |
| Connector Type on Second End | SFF-8665 QSFP56 Network |
| Fiber Optic Mode | Multi-mode |
| Product Color | Black, Aqua |
| Connector on First End Details | 1 x SFF-8665 QSFP56 Network |
| Connector on Second End Details | 1 x SFF-8665 QSFP56 Network |
