NVIDIA MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR/200GbE
PCI Express 4.0 x16 - 2 Port(s) - Optical Fiber - QSFP56
- SKU
- MCX653106A-HDAT-SP
- Category
- Network Interface Cards
MSRP$3,584.06
$3,106.76
Save 13%Back ordered — ships when restocked.
Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MCX653106A-HDAT-SP
- Category
- Network Interface Cards
Overview

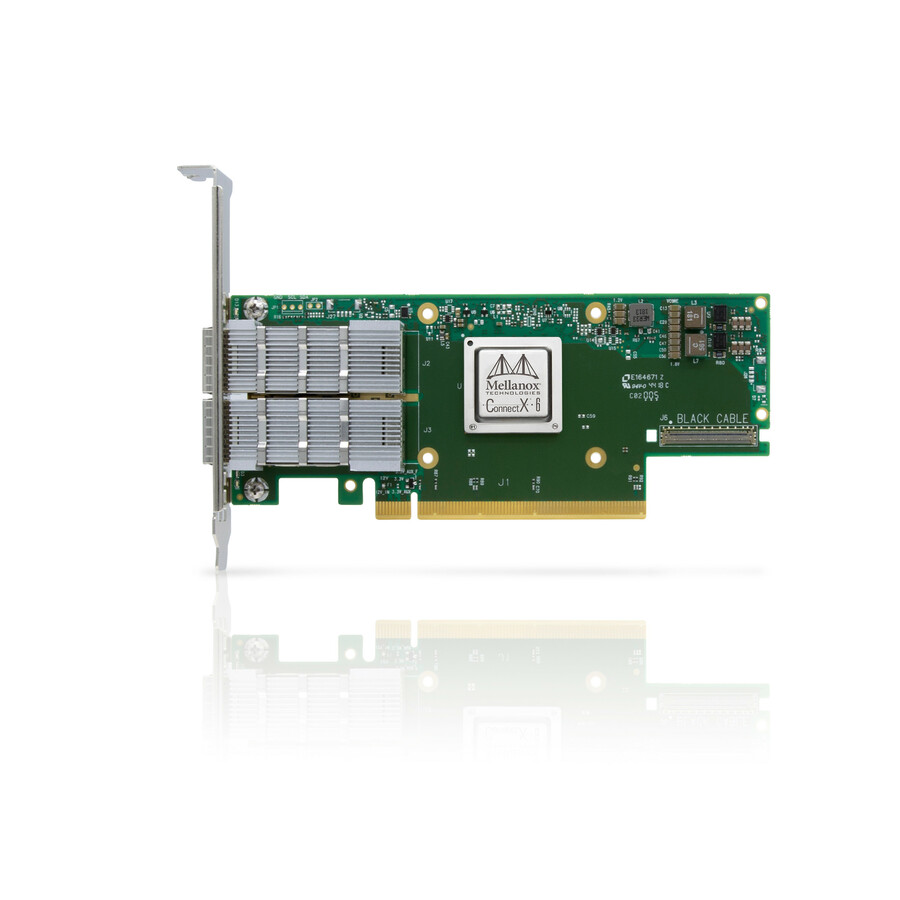

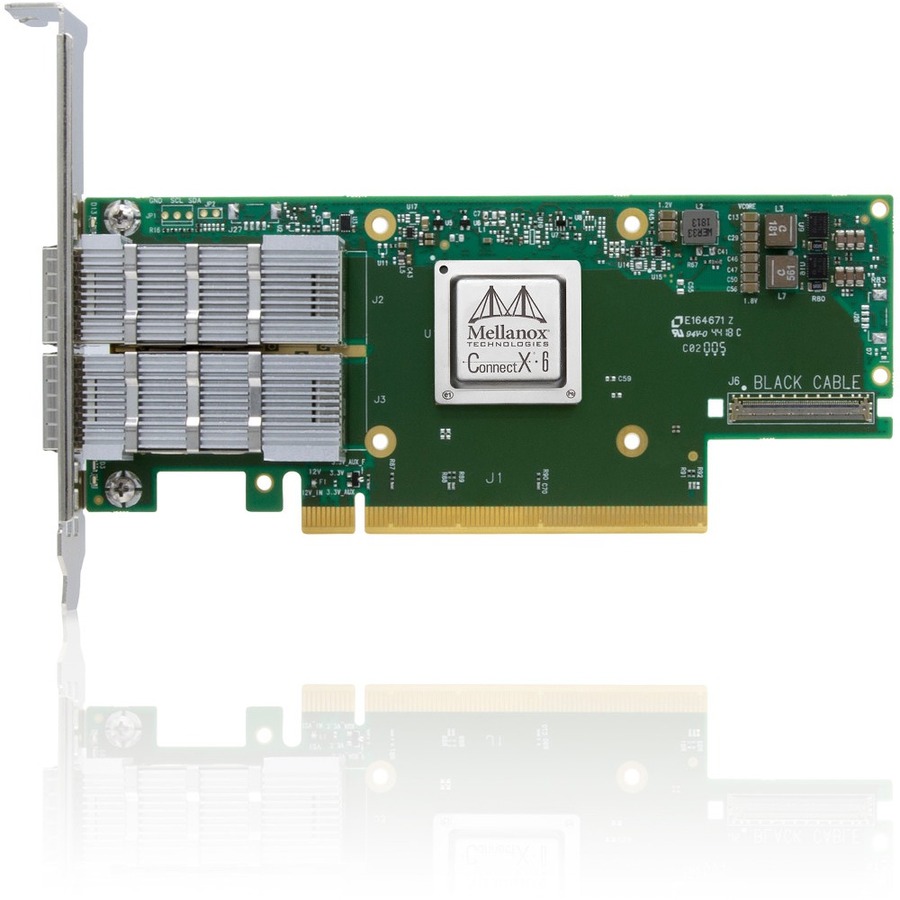

NVIDIA MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR InfiniBand and 200GbE Dual-Port QSFP56 PCIe 4.0 x16 Tall Bracket (-SP indicates Single Pack)
ConnectX-6 VPI Card 200Gb/s InfiniBand & Ethernet Adapter Card
ConnectX-6 Virtual Protocol Interconnect (VPI) cards are a groundbreaking addition to the ConnectX series of industry-leading network adapter cards. Providing two ports of 200Gb/s for InfiniBand and Ethernet connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI cards enable the highest performance and most flexible solution aimed at meeting the continually growing demands of data center applications. In addition to all the existing innovative features of past versions, ConnectX-6 cards offer a number of enhancements to further improve performance and scalability.
ConnectX-6 VPI supports HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.
Highlights
- Up to 200Gb/s connectivity per port
- Max bandwidth of 200Gb/s
- Up to 215 million messages/sec
- Sub 0.6usec latency
- Block-level XTS-AES mode hardware encryption
- FIPS capable
- Advanced storage capabilities including block-level encryption and checksum offloads
- Supports both 50G SerDes (PAM4) and 25G SerDes (NRZ) based ports
- Best-in-class packet pacing with sub-nanosecond accuracy
- PCIe Gen 3.0 and Gen 4.0 support
- RoHS compliant
- ODCC compatible
Specifications
| Host Interface | PCI Express 4.0 x16 |
|---|---|
| Product Type | 200Gigabit Ethernet Card |
| Manufacturer Part Number | MCX653106A-HDAT-SP |
| Packaged Quantity | 1 |
| Limited Warranty | 1 Year |
| Manufacturer | NVIDIA Corporation |
| Product Model | MCX653106A-HDAT-SP |
| Product Name | MCX653106A-HDAT-SP ConnectX-6 VPI Adapter Card HDR/200GbE |
| Product Line | ConnectX-6 VPI |
| Brand Name | NVIDIA |
| Expansion Slot Type | QSFP56 |
| Environmentally Friendly | Yes |
| Media Type Supported | Optical Fiber |
| Total Number of Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
