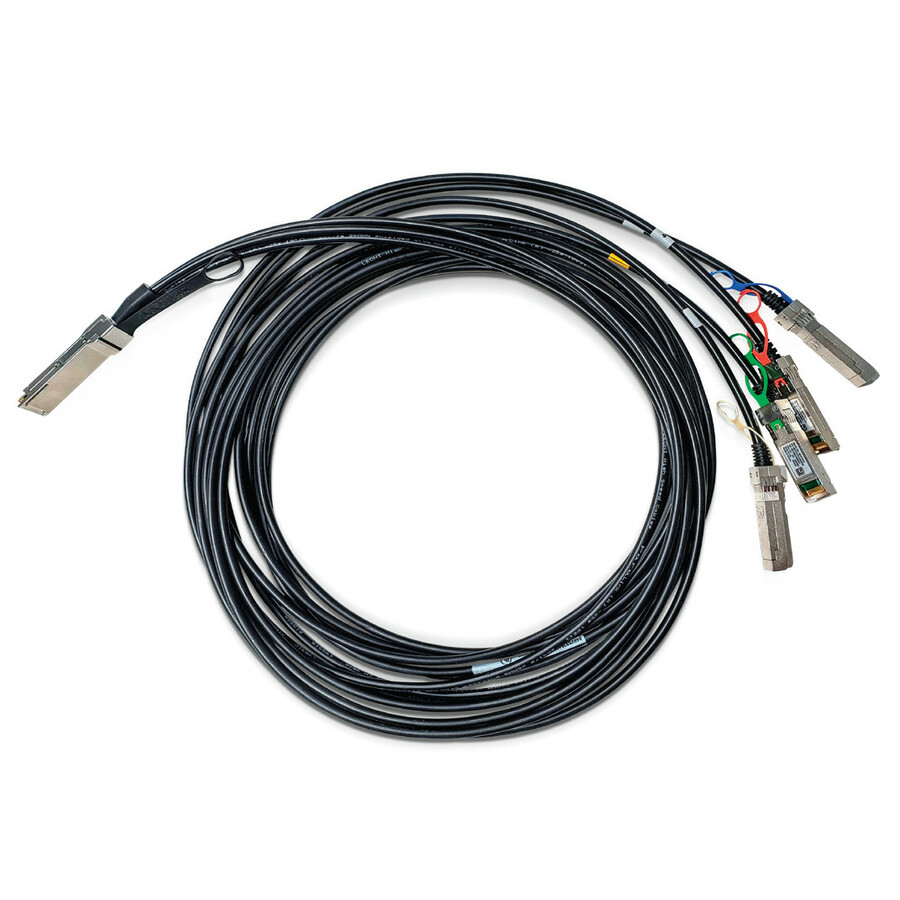

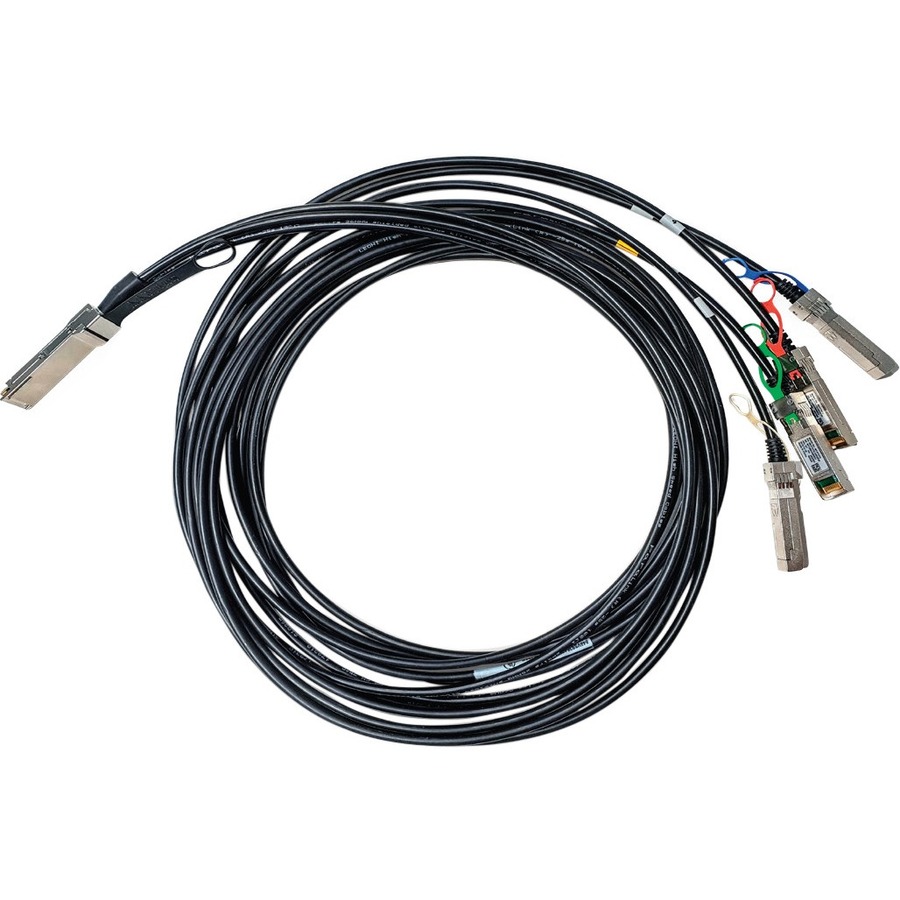

Mellanox 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable
8.20 ft QSFP56/SFP56 Network Cable for Network Device - First End: 1x QSFP56 Network - Second End: 4x SFP56 Network - 200 Gbit/s - Splitter Cable - LSZH - 26 AWG - Black
- SKU
- MCP7H70-V02AR26
- Category
- Connector Cables
MSRP$289.00
$250.97
Save 13%Back ordered — ships when restocked.
Genuine NVIDIA through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MCP7H70-V02AR26
- Category
- Connector Cables
Overview
Mellanox®MCP7H70-V0xxRyy DAC splitter cables are a high speed, cost-effective 200GbE to 4x50GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers.
MCP7H70-V0xxRyy cables provide connectivity between systems with a QSFP56 port on one side and up to four different SFP56 ports on the other side. The cable connects data signals from each of the four copper pairs on the QSFP56 end to the single pair of each of the SFP56 ends. Each QSFP56/SFP56 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. They enable higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
- 200GbE to 4x50GbE data rate
- IEEE 802.3cd PAM4 200GAUI-4,100GAUI-2 and 50GAUI-1 compliant
- SFF-8636 compliant I2C management interface
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- BER (Bit Error Rate) better than 1E-15 with Mellanox end-to-end interconnect
- Hot pluggable
- RoHS compliant
- Low Smoke Zero Halogen (LSZH)jacket
- LF (Lead Free) HF (Halogen Free) PCB
Specifications
| Cable Length | 8.20 ft |
|---|---|
| Product Type | Network Cable |
| Data Transfer Rate | 200 Gbit/s |
| Device Supported | Network Device |
| Jacket Type | LSZH |
| Manufacturer Part Number | MCP7H70-V02AR26 |
| Limited Warranty | 1 Year |
| Features | Passive, Halogen Free, Lead-free, Bendable |
| Manufacturer | NVIDIA Corporation |
| Product Name | 200GbE to 4x50GbE (QSFP56 to 4xSFP56) Direct Attach Copper Splitter Cable |
| Product Line | LinkX |
| Brand Name | Mellanox |
| Cable Characteristic | Splitter Cable |
| Environmentally Friendly | Yes |
| Cable Type | QSFP56/SFP56 |
| Connector Type on First End | QSFP56 Network |
| Connector Type on Second End | SFP56 Network |
| American Wire Gauge | 26 AWG |
| Product Color | Black |
| Connector on First End Details | 1x QSFP56 Network |
| Connector on Second End Details | 4x SFP56 Network |
| Product Material | Copper |
| Number of Pairs | 4 |
