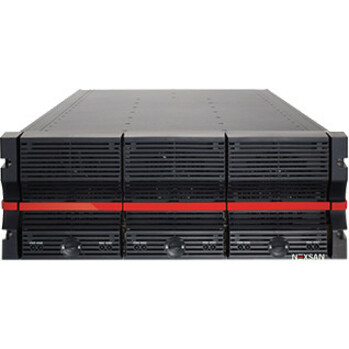

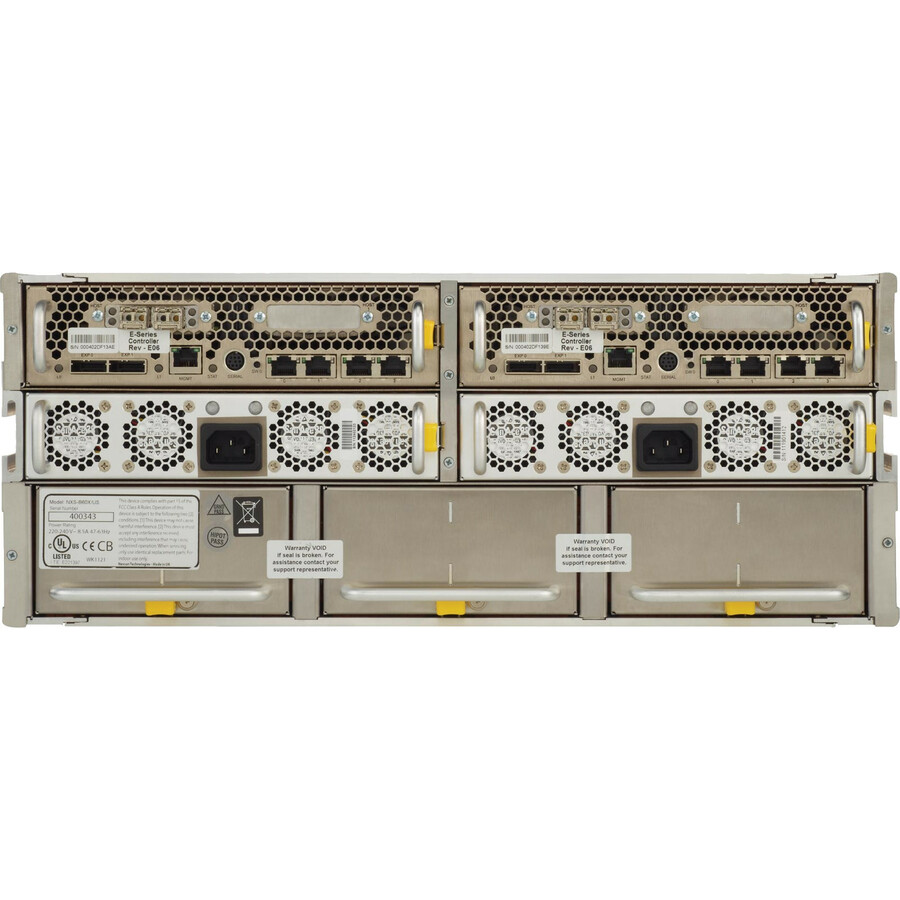

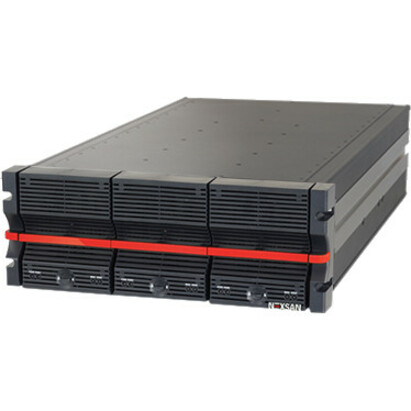

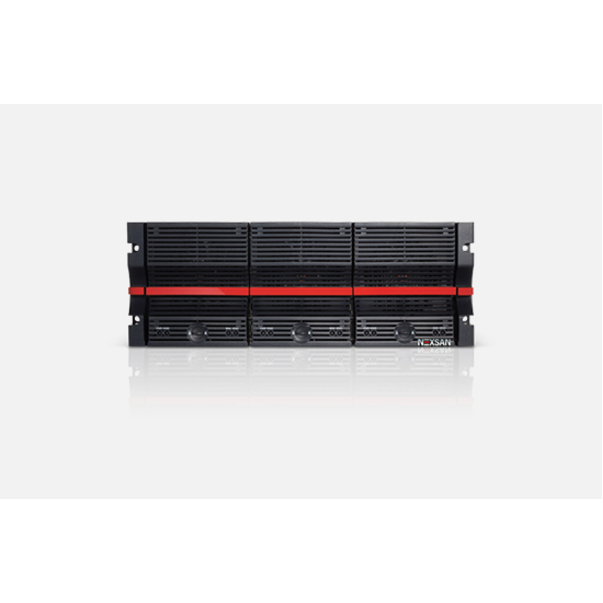

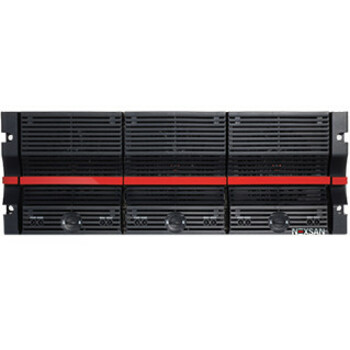

Nexsan Technologies E48 DAS Array
48 x HDD Supported - 48 x HDD Installed - 144 TB Installed HDD Capacity - 48 x SSD Supported - Serial ATA, Serial Attached SCSI (SAS) Controller - RAID Supported - 0, 1, 4, 5, 6, 10 RAID Levels - 48 x Total Bays - 4U - Rack-mountable
- SKU
- NST-E482S-144/3
- Category
- Storage Arrays & Servers
$0.01
Back ordered — ships when restocked.
Genuine Nexsan Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- NST-E482S-144/3
- Category
- Storage Arrays & Servers
Overview
The E-Series storage system delivers industry-leading density and power efficiency for the smallest storage footprint with up to 3X the capacity in the same space as a typical array while consuming up to 85% less power and cooling when idle. A fault tolerant and highly reliable architecture ensures enterprise-class data protection. Innovative ease-of-use functionality makes deploying and managing storage a simple task for the resource constrained IT administrator. It comes pre-configured so it can be up and running in 10 minutes or less with intuitive wizards - no professional services required.
Highlights
- DAS Storage System offers maximum storage productivity with added dependability
- Robust scalability up to 48 drives to let you expand limitlessly
- Through RAID levels (0, 1, 4, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable das storage system allows maximum space utilization with easy and convenient access and retrieval of the data
Specifications
| Host Interface | SAS |
|---|---|
| Product Type | DAS Storage System |
| Manufacturer Part Number | NST-E482S-144/3 |
| Weight (Approximate) | 191 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Nexsan Technologies, Inc |
| Product Model | E48 |
| Product Name | E48 DAS Array |
| RAID Levels | 0, 1, 4, 5, 6, 10 |
| Controller Type | Serial ATA, Serial Attached SCSI (SAS) |
| Product Series | E |
| Rack Height | 4U |
| Brand Name | Nexsan Technologies |
| Height | 6.9" |
| Width | 17.6" |
| Depth | 32.9" |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| RAID Supported | Yes |
| Number of Total Expansion Bays | 48 |
| Maximum Power Supply Wattage | 1600 W |
| Total Hard Drive Capacity Installed | 144 TB |
| Number of Hard Drives Supported | 48 |
| Number of Hard Drives Installed | 48 |
| Number of Solid State Drive Supported | 48 |
| Drive Interface | Serial ATA |
