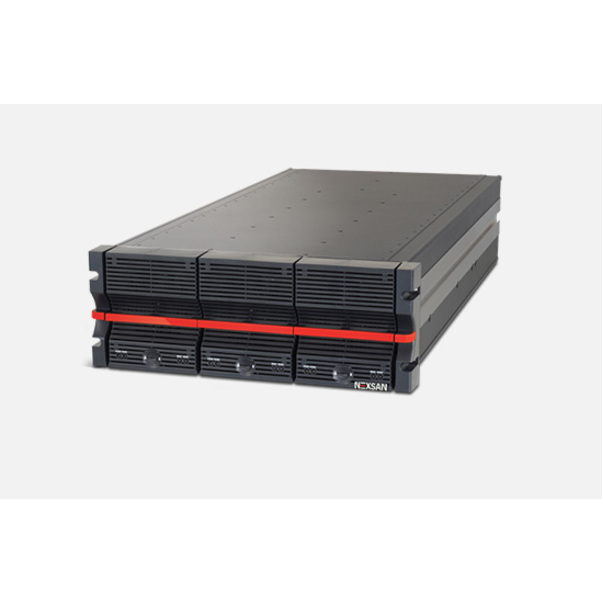

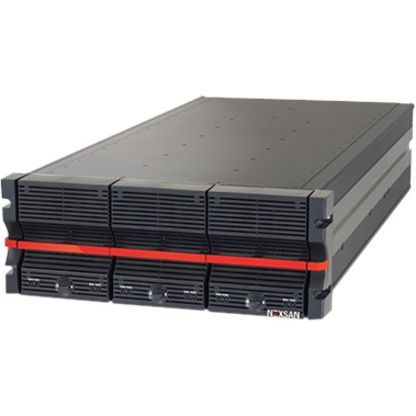

Nexsan Technologies E60 SAN Array
60 x HDD Supported - 40 x HDD Installed - 18 TB Installed HDD Capacity - 60 x SSD Supported - Serial ATA, Serial Attached SCSI (SAS) Controller - RAID Supported - 0, 1, 4, 5, 6, 10 RAID Levels - 60 x Total Bays - 4U - Rack-mountable
- SKU
- E601A-18P0/450
- Category
- Storage Arrays & Servers
$0.01
Back ordered — ships when restocked.
Genuine Nexsan Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- E601A-18P0/450
- Category
- Storage Arrays & Servers
Overview
The Nexsan E-Series? is an advanced SAN storage system for midsized organizations needing an extremely dense and highly reliable solution. Imation's expertise in capacity-optimized storage has led to industry-leading efficiencies at the lowest possible cost-per-terabyte for applications like disk backup, bulk storage and more, all tailored to fit in any environment whether traditional, virtual or cloud. The E60 offers 60 drives for up to 240TB in 4U. The E48 offers 48 drives for up to 192TB in 4U, and the E18 offers 18 drives for up to 72TB in 2U. Each can be easily expanded with additional capacity by adding the corresponding expansion unit: E18X, E48X or E60X.
Highlights
- SAN Storage System offers maximum storage efficiency and convenience
- Holds up to 60 HDDs to let you expand limitlessly
- Through RAID levels (0, 1, 4, 5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
- RAID technology - data reliability, fault tolerance and improved overall performance
- Rack-mountable form factor for added reliability and dependability
Specifications
| Product Type | SAN Storage System |
|---|---|
| Manufacturer Part Number | E601A-18P0/450 |
| Protocols | iSCSI |
| Weight (Approximate) | 225 lb |
| Form Factor | Rack-mountable |
| Manufacturer | Nexsan Technologies, Inc |
| Product Model | E60 |
| Product Name | E60 SAN Array |
| RAID Levels | 0, 1, 4, 5, 6, 10 |
| Controller Type | Serial ATA, Serial Attached SCSI (SAS) |
| Product Series | E |
| Rack Height | 4U |
| Brand Name | Nexsan Technologies |
| Height | 7" |
| Width | 17.6" |
| Depth | 37.4" |
| Number of Power Supplies Installed | 2 |
| Redundant Power Supply | Yes |
| RAID Supported | Yes |
| Number of Total Expansion Bays | 60 |
| Maximum Power Supply Wattage | 1600 W |
| Total Hard Drive Capacity Installed | 18 TB |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | 40 |
| Number of Solid State Drive Supported | 60 |
| Drive Interface | Serial Attached SCSI (SAS) |
