Nexsan Technologies NST5000 Unified Storage
Nexsan Technologies

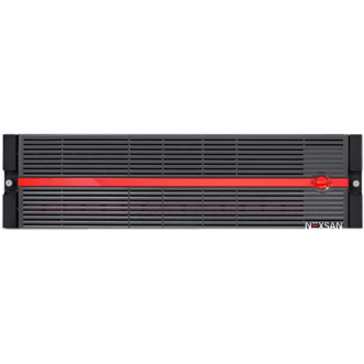

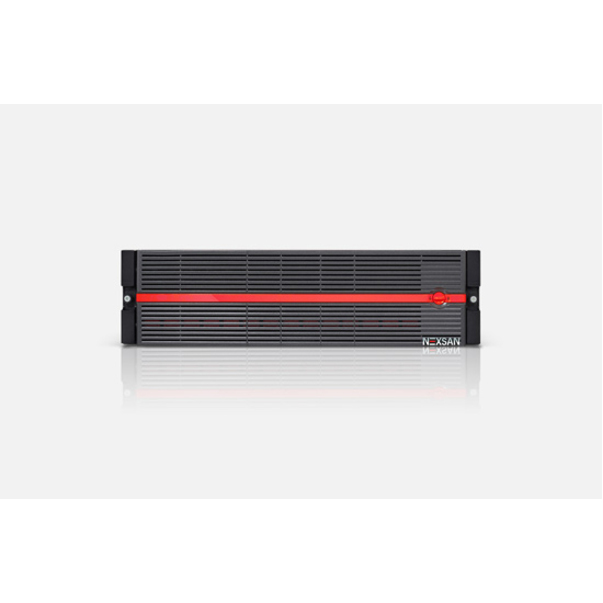

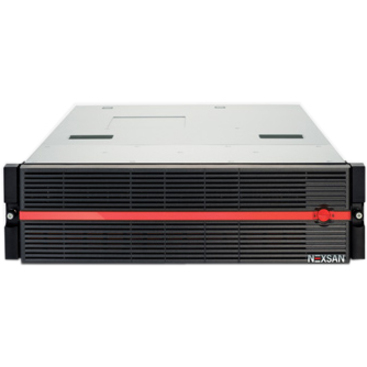

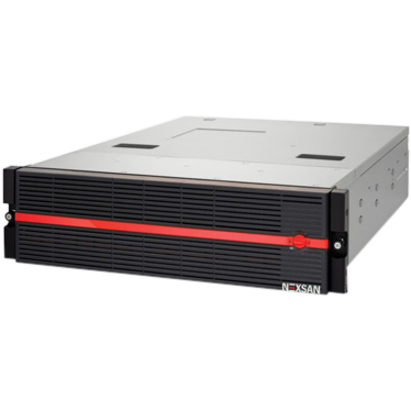

Nexsan Technologies NST5000 Unified Storage

15 x HDD Supported - 4 x HDD Installed - 8 TB Installed HDD Capacity - 15 x SSD Supported - Serial ATA, Serial Attached SCSI (SAS) Controller - RAID Supported - 5, 6, 10 RAID Levels - 15 x Total Bays - 15 x 2.5"/3.5" Bay - Gigabit Ethernet - Network (RJ-45) - 3U - Rack-mountable

SKU
E5100-8T-DP-2NL
Category
Storage Arrays & Servers

$0.01

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Nexsan Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
E5100-8T-DP-2NL
Category
Storage Arrays & Servers

Overview

Unified Hybrid Storage for the Mid-Market

The Nexsan NST5000 is an advanced unified storage system offering NAS, iSCSI or both. The NST5000 uses the Nexsan FASTier® technology to provide the speed of solid-state at the price of spinning disk. FASTier intelligently and automatically moves data through solid-state and spinning disk in-concert for up to 10X performance over traditional disk storage. The net result is a radical new cost-per-I/O to speed your virtual and cloud environments.

Highlights

  • NAS Storage System offers maximum storage productivity with added dependability
  • Robust scalability up to 15 drives to let you expand limitlessly
  • Through RAID levels (5, 6, 10), RAID provides data reliability, fault tolerance and improves overall performance
  • RAID technology - data reliability, fault tolerance and improved overall performance
  • Rack-mountable nas storage system allows a clutter-free, convenient usage with increased efficiency
  • Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance

Specifications

Product TypeNAS Storage System
Manufacturer Part NumberE5100-8T-DP-2NL
ProtocolsiSCSI, CHAP, iSNS
Weight (Approximate)84 lb
Form FactorRack-mountable
ManufacturerNexsan Technologies, Inc
Product ModelNST5100
Product NameNST5000 Unified Storage
RAID Levels5, 6, 10
Controller TypeSerial ATA, Serial Attached SCSI (SAS)
Product SeriesNST5000
Rack Height3U
Brand NameNexsan Technologies
Height5.2"
Width17.2"
Depth24.2"
Number of Power Supplies Installed2
Redundant Power SupplyYes
RAID SupportedYes
Ethernet TechnologyGigabit Ethernet
Number of Total Expansion Bays15
Network (RJ-45)Yes
Total Hard Drive Capacity Installed8 TB
Number of Hard Drives Supported15
Number of Hard Drives Installed4
Number of Solid State Drive Supported15
Number of 2.5"/3.5" Bays15
Drive InterfaceNear Line SAS (NL-SAS)
