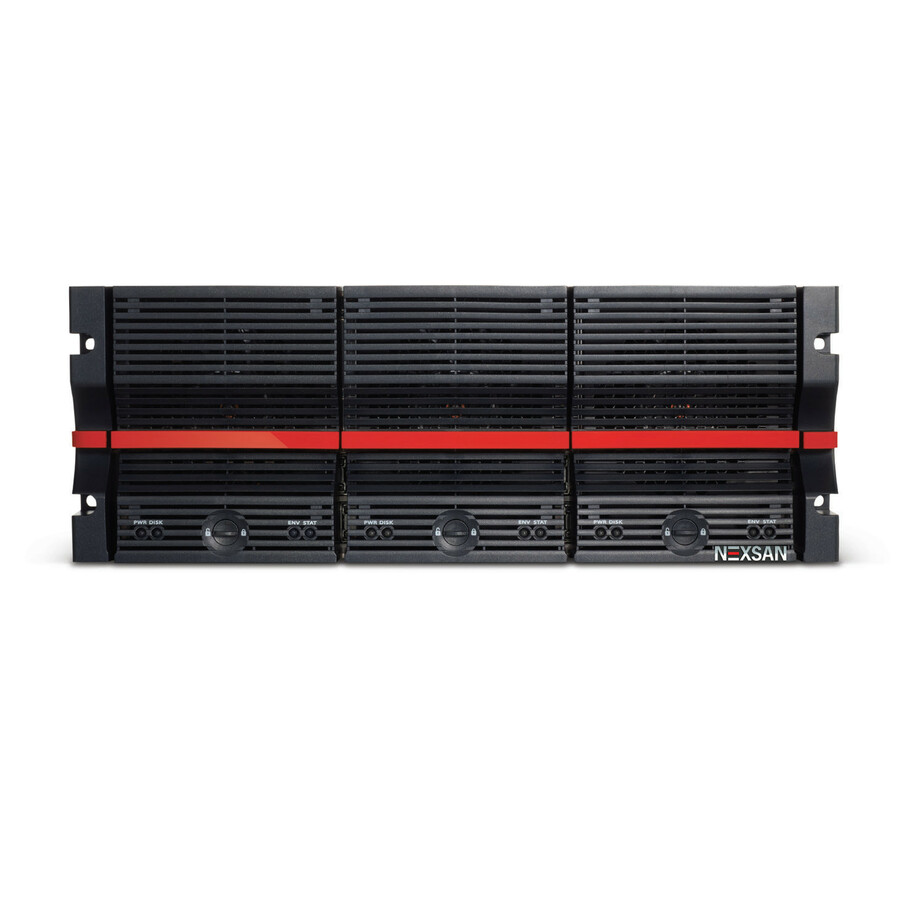

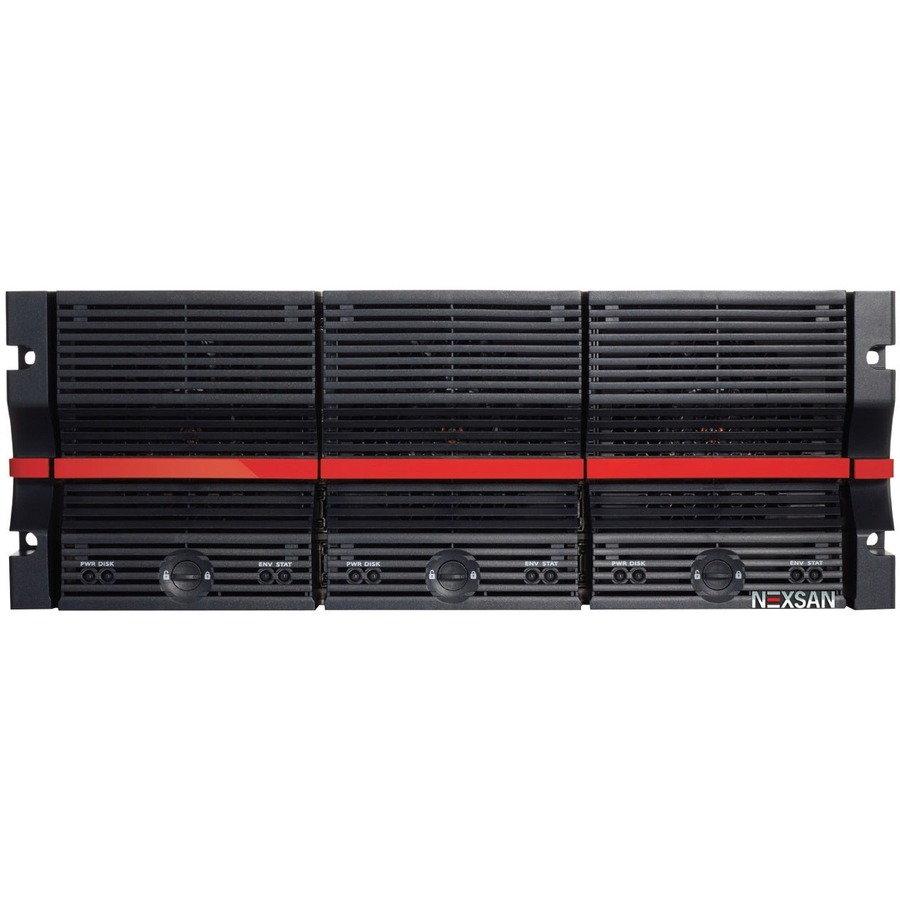

Nexsan Technologies E-Series V Modular Storage

PRESENT PERFECT. FUTURE READY.

THE NEXSAN E-SERIES V STORAGE PLATFORM.

The Nexsan E-Series V is an ultra-reliable, high-density, high performance, efficient storage system that enables organizations to lower their content storage costs, maximize storage uptime, and boost data storage ROI.

The E-Series V storage arrays and expansion units offer mid-size organizations affordable enterprise-level Fibre Channel, SAS and/or iSCSI SAN storage used for a variety of capacity-optimized and performance-driven applications. For larger organizations, E-Series V is a versatile SAN or DAS solution to stay ahead of the enormous data growth, demanding workloads, and high resiliency requirements in media & entertainment, government, healthcare, HPC, financial, surveillance and service provider sectors.

TURBOCHARGED PERFORMANCE

E-Series V features an advanced active/active controller design, including use of a dedicated hardware engine, or "turbocharger", which accelerates RAID parity generation and doubles the sequential write performance over the prior version of E-Series. The turbocharged E-Series V is ideal for back-up/recovery applications and continuous data streaming bulk storage applications.

HIGH-DENSITY, POWER EFFICIENT

Organizations deploying E-Series V systems are able to mix and match capacityoptimized HDDs, performance-optimized HDDs and SSDs to accommodate applications based on performance or capacity needs. E-Series V systems consume less than one-third of the power in one-third of the rack space of typical arrays, with up to 480 terabytes of capacity in just one 4U, and up to a total of 1.44 PB in a fully-scaled, 12U configuration. Users of E-Series V systems can engage Nexsan AutoMAID? disk management capabilities to reduce power consumption by up to 87 percent, reducing operating expenses and extending the overall life of the system.

ULTRA-RELIABLE

E-Series V systems exceed the most stringent reliability demands, leveraging an innovative mechanical design including Cool Drive Technology? and anti-vibration design that significantly reduce heat and vibration in the unit while improving system reliability and performance. The reliability of E-Series V is qualified through extensive stress testing before shipment. Array-based snaps and asynchronous replication extend E-Series V data protection capabilities.

HIGHLY RESILIENT, CONTINUOUSLY AVAILABLE

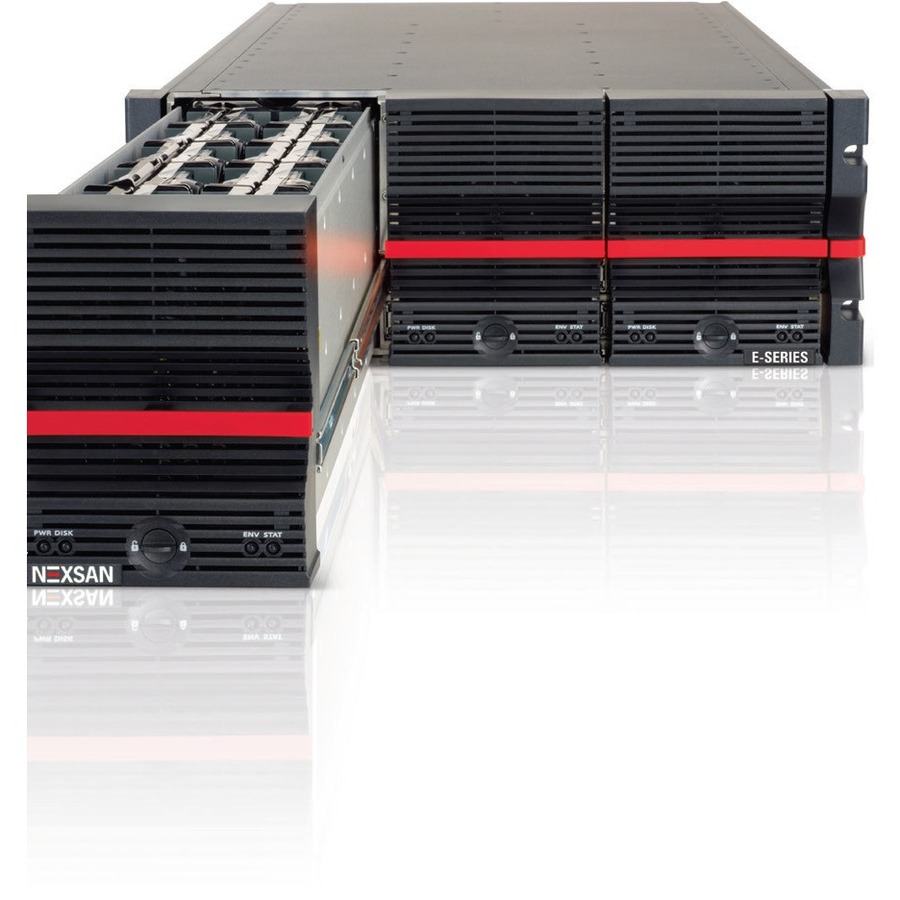

The E-Series system features high-availability architecture, with multipathing support and dual redundant, hot-swappable active components. SNMP alerts or email notifications are sent to the administrator in the event of a component failure and upon a drive failure a spare drive is automatically rebuilt into the RAID set. With up to 16GB of battery-backed and flash-protected cache per controller, the E-Series solution mirrors cache between controllers in a dual controller configuration. Active Drawer Technology? overcomes the challenges of competitive arrays by allowing a single drawer of drives to be pulled out and serviced easily while keeping your data available.
