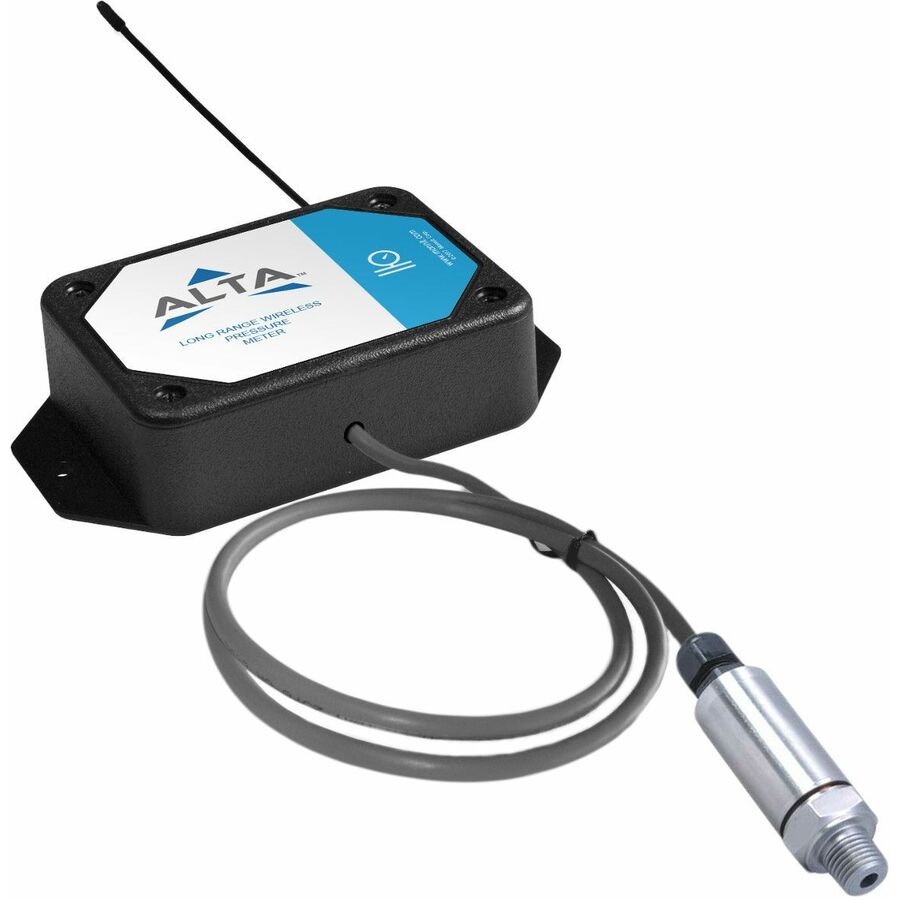

Monnit Wireless Pressure Meter
- SKU
- MNS2-9-W2-PS-3000
- Category
- Miscellaneous Devices
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Monnit through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- MNS2-9-W2-PS-3000
- Category
- Miscellaneous Devices
Overview
The ALTA Wireless PSIG Pressure Meter measures gauge pressure in a gas, liquid, or vapor supply line.
Key Features
• Transducers available: 50, 300, 750, 3000 PSIG
• Resolution: 0.1 PSI
• Accuracy:
• Uncalibrated: ± 2% of reading + 1.05% FS
• Calibrated: ± 0.5% of reading + 0.5% FS
• Configurable thresholds for critical condition monitoring
Principles of Operation
The ALTA Wireless Pressure Meter uses an industrial-grade pressure transducer to measure pressure on a user-configurable time interval or Heartbeat. On every Heartbeat, the pressure transducer is energized and a proportional analog voltage is converted to a digital pressure measurement. This measurement is then sent to the gateway, making the data available in iMonnit or another approved data service.
The ALTA Pressure Meter can be calibrated for improved accuracy. Also, remember to remove the pressure from the sensor when performing maintenance on this device.
Example Applications
• Compressors/compressed air lines
• Water upply lines
• Pumping systems
• Irrigation system pressure
• Industrial process monitoring
• Trash compaction equipment
• Hydraulic systems
Highlights
- Wireless range of 2,000+ feet through 18+ walls
- Frequency-Hopping Spread Spectrum (FHSS)
- Best-in-class interference immunity
- Best-in-class power management for longer battery life
- Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
- Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling):
- 10-minute Heartbeats = ~ 22 days
- 2-hour Heartbeats = ~ 266 days
- Automatic over-the-air updates to sensor firmware (future-proof)
- Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and set alerts to be sent via SMS text and email
Specifications
| Application/Usage | Commercial, Compressed Air Supply Lines, Water Supply Lines, Pumping System, Irrigation System Pressure, Industrial Process Monitoring, Trash Compaction Equipment |
|---|---|
| Package Contents |
|
| Product Type | Wireless Pressure Meter |
| Manufacturer Part Number | MNS2-9-W2-PS-3000 |
| Manufacturer | Monnit Corporation |
| Product Name | Wireless Pressure Meter |
| Brand Name | Monnit |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
