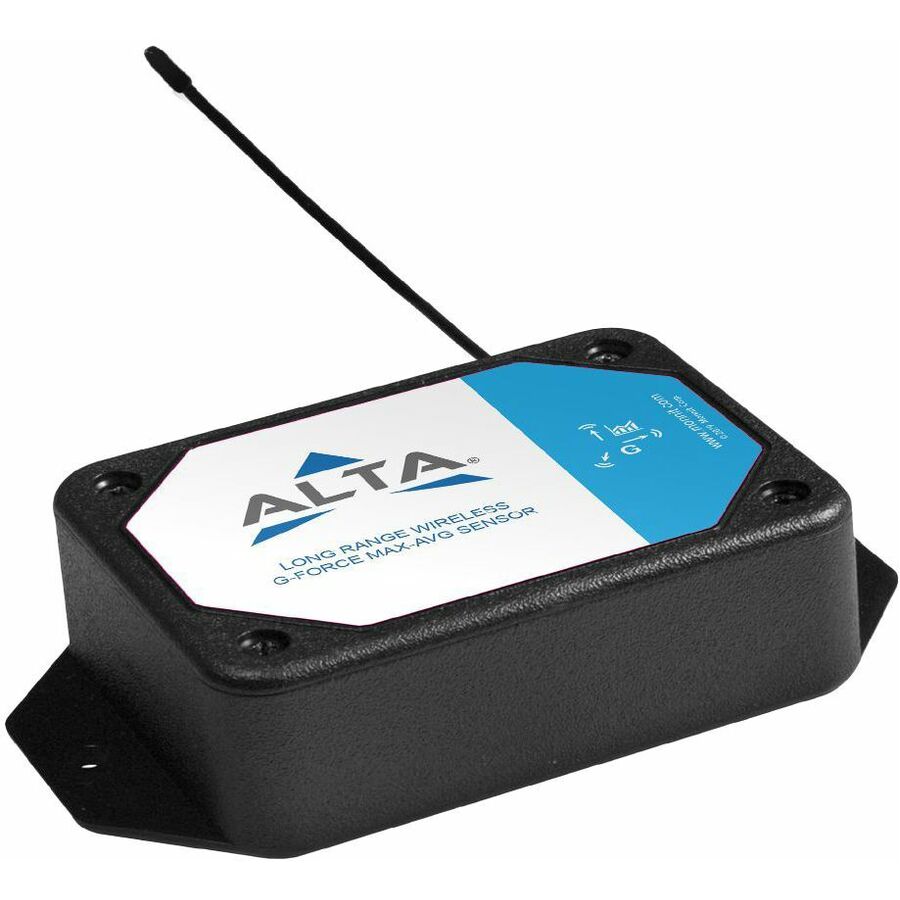

Monnit Wireless G-Force Max-Avg Accelerometer - Commercial AA Battery Powered

ALTA® Wireless Accelerometer - G-Force Max-Avg Sensors measure the maximum and average g-force levels that occur on the X, Y, and Z axes over a user-defined report interval.

Key Features

• Measures on three axes

• Resolution: 0.001 g

• Accuracy: ±2.5% on all axes

• Range: 2 g, 4 g, or 8 g

• High Pass Filter (HPF) optional to remove static forces

• Configurable thresholds for critical condition monitoring

Principles of Operation

The ALTA Wireless Accelerometer - G-Force Max-Avg Sensor uses a MEMS (microelectromechanical system) accelerometer to measure and record acceleration over a user-configurable time interval or Heartbeat. On every Heartbeat, the data collected is analyzed, and Max and Average results are forwarded to the gateway, making the data available in iMonnit or another approved data service.
