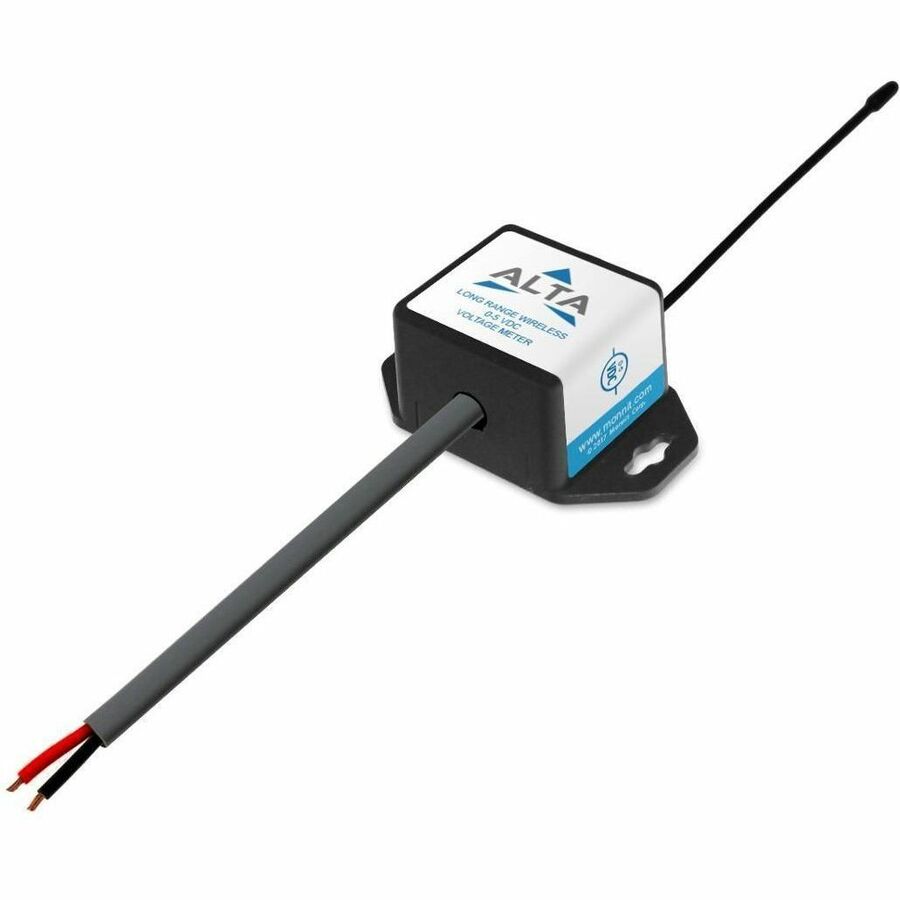

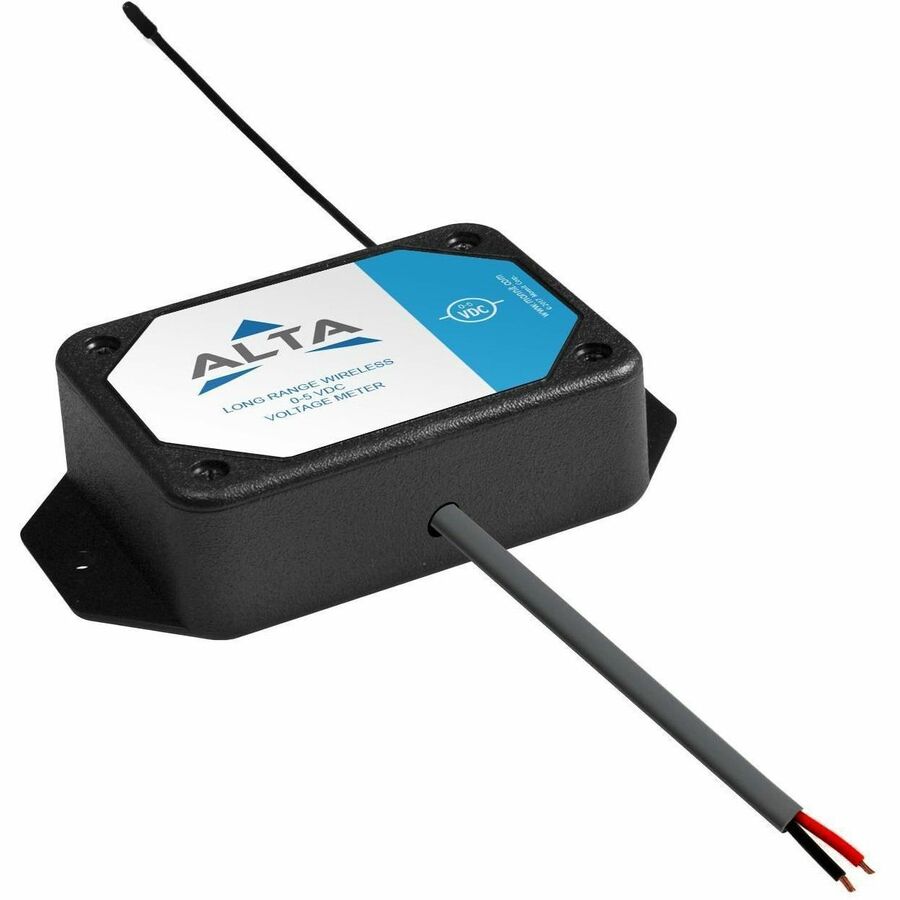

Monnit Alta Wireless Voltage Meter
Monnit

Monnit Alta Wireless Voltage Meter

Black

SKU
MNS2-9-W1-VM-010
Category
Miscellaneous Devices

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Monnit through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MNS2-9-W1-VM-010
Category
Miscellaneous Devices

Overview

General Description

The ALTA Wireless Voltage Meter measures DC voltage up to 5V or 10V on user specified intervals.

Key Features

• Measurement Range: 0 to 5 VDC or 0 to 10 VDC

• Resolution: 1 mV

• Accuracy:

• Uncalibrated: ± 2.0% of reading ± 0.002 VDC

• Calibrated: ± 0.5% of reading ± 0.002 VDC

• Configurable thresholds for critical condition monitoring

Principles of Operation

The ALTA Wireless 5 and 10 VDC Voltage Meter measures the single-ended DC voltage across its two leads based on a user-configurable time interval or Heartbeat. On every Heartbeat, the sensor converts the analog voltage signal to a digital voltage measurement. This measurement is then sent to the gateway, making the data available in iMonnit or another approved data service.

The ALTA 5 and 10 VDC Voltage Meter can be calibrated for improved accuracy. Also, remember to remove any active voltages from the measurement leads when replacing batteries or performing other maintenance.

Example Applications

• Battery health

• Voltage measurement

• Transducer measurement

• Machinery

• Electrical motors

• Additional applications

Highlights

  • Wireless range of 2,000+ feet through 18+ walls 1
  • Frequency-Hopping Spread Spectrum (FHSS)
  • Best-in-class interference immunity
  • Best-in-class power management for longer battery life 2
  • Encrypt-RF Security (Diffie-Hellman Key Exchange + Advanced Encryption Standard (AES)-128 Cipher Block Chaining (CBC) for sensor data messages)
  • Sensor logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through power cycling): - 10-minute Heartbeats = ~ 22 days - 2-hour Heartbeats = ~ 266 days
  • Automatic over-the-air updates to sensor firmware (future-proof)
  • Free iMonnit Basic Online Wireless Sensor Monitoring and Notification System to configure sensors, view data, and send alerts via SMS text, email, and voice call

Specifications

Application/UsageVoltage Measurement, Machinery, Electrical Motor, Transducer Measurement, Battery
Package Contents
  • Alta Wireless Voltage Meter
  • Wireless Sensor
  • CR2032 - Coin Cell Battery
  • Mounting Hardware
Product TypeWireless Voltage Meter
Manufacturer Part NumberMNS2-9-W1-VM-010
ManufacturerMonnit Corporation
Product NameAlta Wireless Voltage Meter
Product LineALTA
Brand NameMonnit
Product ColorBlack
Color FamilyBlack
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
