Monnit Wireless 20 Amp Three-Phase Current Meter
Monnit

Monnit Wireless 20 Amp Three-Phase Current Meter

Enclosure for Heavy Machinery, Circuit Breaker Panel, Electric Current Monitoring, Manufacturing Management, Conveyor System Motor, Amp Hour Meter

SKU
MNS2-9-IN-3P-020
Category
Home & Office Security

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Monnit through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
MNS2-9-IN-3P-020
Category
Home & Office Security

Overview

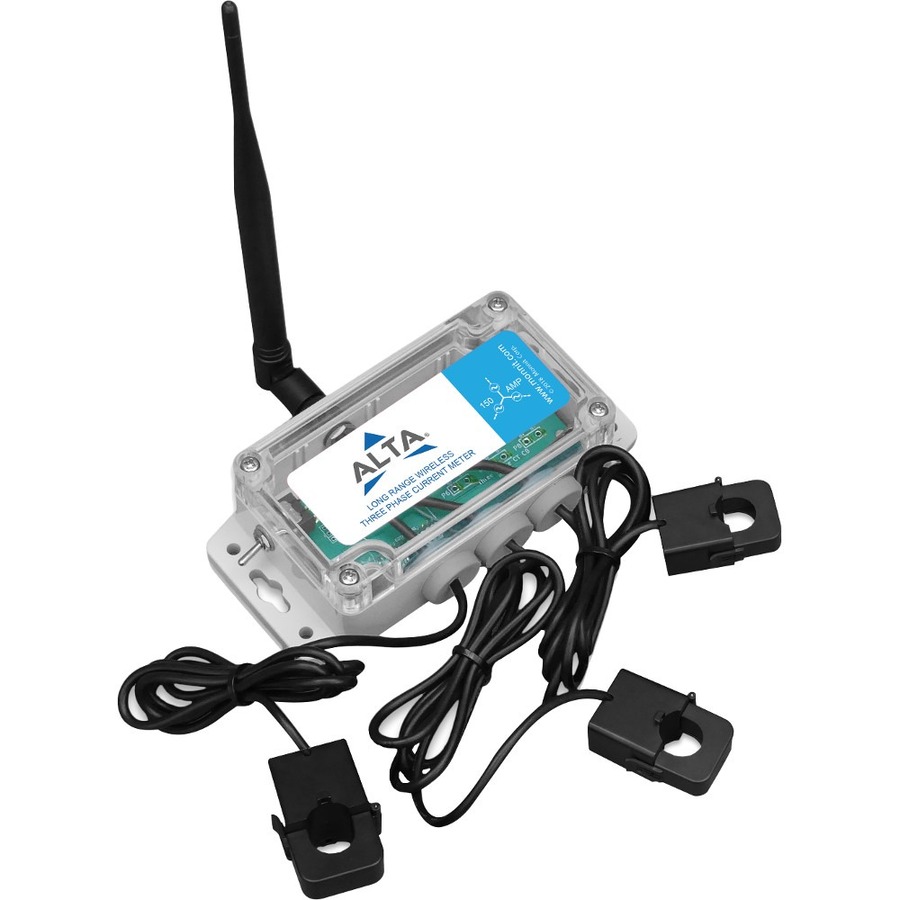

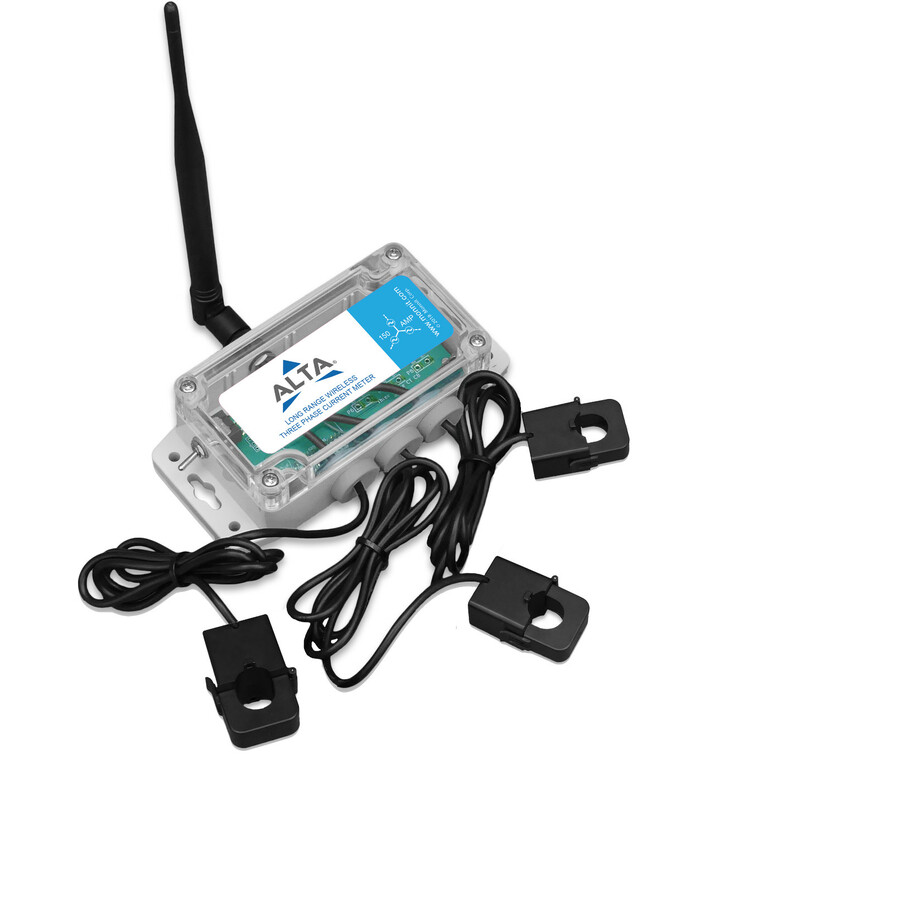

The ALTA Industrial Wireless Three Phase Current Meter measures the RMS current of an alternating current (AC) system using 3 current transducers (CTs) that wrap around the wires of a three phase power system.

• Measures amp hours, max RMS current, min RMS current, average RMS current, and duty cycle for each phase and combined amp hours from all three phases

• 3x current transducers

• Capable of generating watt hour or kilowatt hour readings using iMonnit

• Data logging for accumulated amp hour readings

• Can notify based on amperage/power levels

• Simple and safe installation of amperage/power measurement hardware, no rewiring required

Highlights

  • Wireless range of 1,200+ feet through 12+ walls1
  • Frequency-Hopping Spread Spectrum (FHSS)
  • Best-in-class interference immunity
  • Best-in-class power management for longer battery life2
  • Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
  • Data logs 2000 to 4000 readings if the gateway connection is lost (non-volatile flash, persists through the power cycle): 10-minute heartbeats = ~ 22 days - 2-hour heartbeats = ~ 266 days
  • Over-the-air updates (future-proof)

Specifications

Application/UsageHeavy Machinery, Circuit Breaker Panel, Electric Current Monitoring, Manufacturing Management, Conveyor System Motor, Amp Hour Meter
Package Contents
  • Wireless 20 Amp Three-Phase Current Meter
  • Wireless Sensor
  • Mounting Hardware
  • 3V Industrial Battery (Pre-Installed)
  • SMA Antenna
Product TypeCurrent Sensor
Manufacturer Part NumberMNS2-9-IN-3P-020
Weight (Approximate)2.10 oz
Form FactorEnclosure
ManufacturerMonnit Corporation
Product NameWireless 20 Amp Three-Phase Current Meter
Product LineALTA
Brand NameMonnit
Height1.6"
Width1.1"
Depth1.4"
