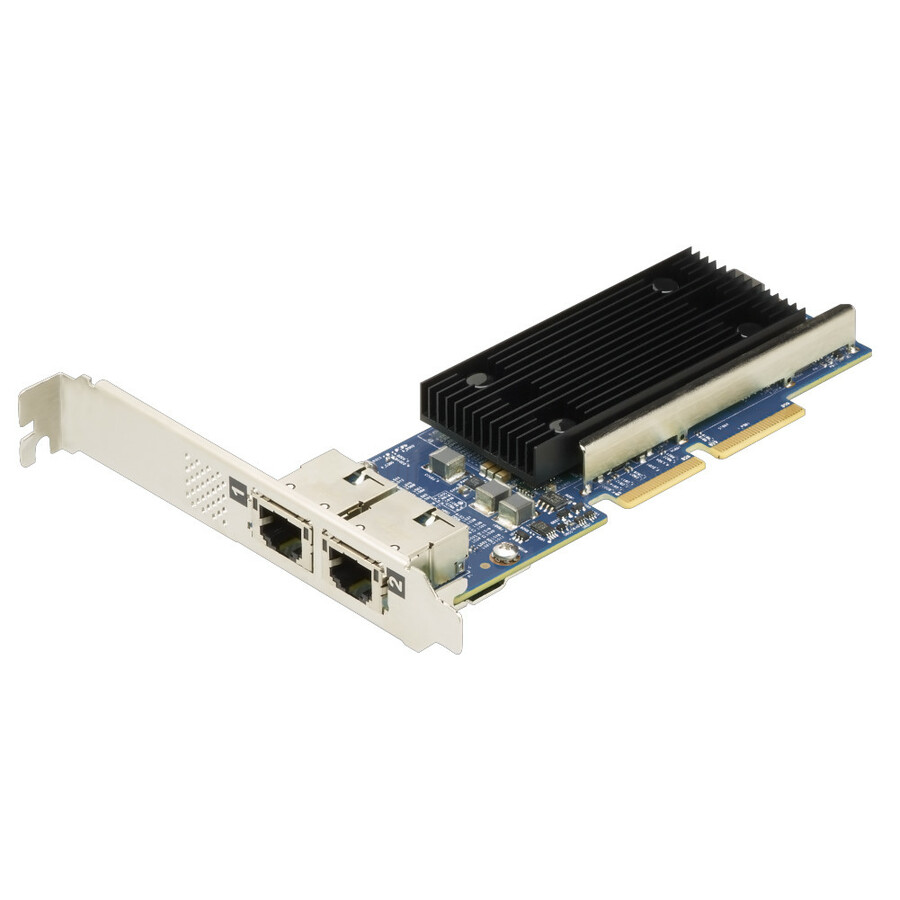

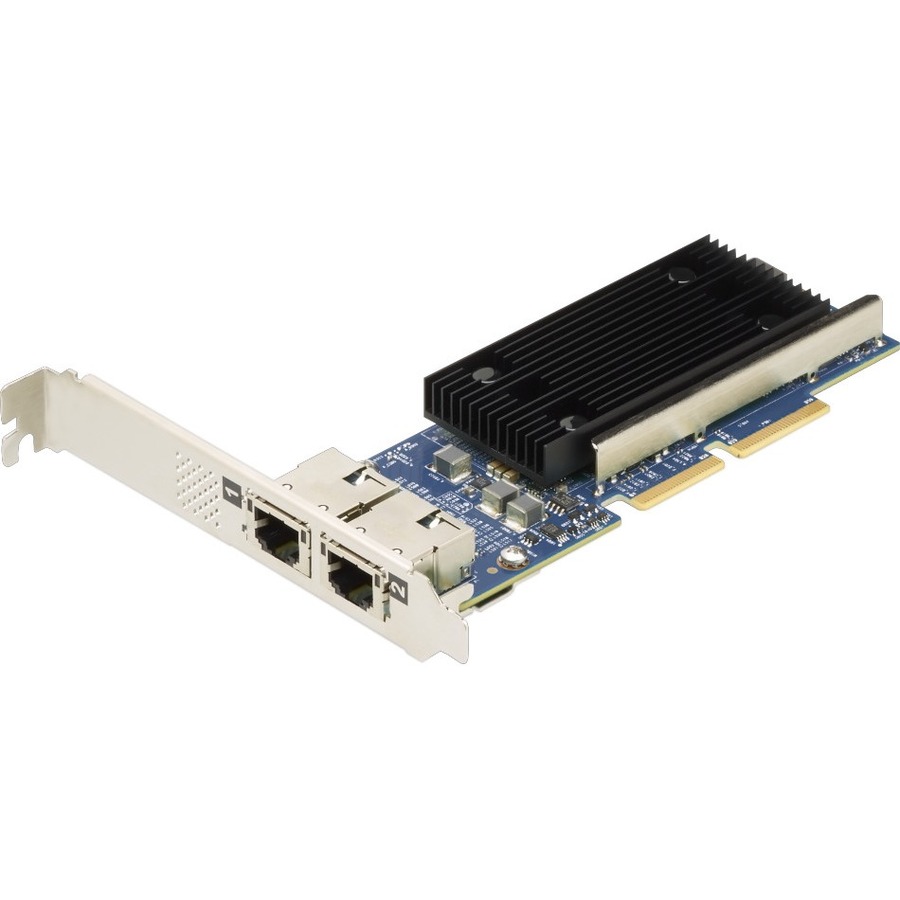

Lenovo ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter
Lenovo

Lenovo ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter

PCI Express 3.0 x8 - 2 Port(s) - 2 - Twisted Pair - 10GBase-T - ML2

SKU
7ZT7A00497
Category
Network Interface Cards

$524.57

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
7ZT7A00497
Category
Network Interface Cards

Overview

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers.

Did you know?

10GBASE-T is a low-cost way to enter the 10 Gb Ethernet space. By using standard UTP twisted pair cabling, you eliminate the need for transceivers or fiber optic cabling.

The Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter is a special mezzanine LAN-on-motherboard (mezzanine LOM) form factor adapter that also supports the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard XClarity Controller (XCC) management processor. This support enables the sharing the network interface with the XCC and the operating system, thereby eliminating the need for a separate management network.

Highlights

  • 10Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
  • This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
  • For high bandwidth connectivity, add this efficient dual port 10gigabit ethernet card to your server or workstation
  • Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
  • With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable

Specifications

Package Contents
  • ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter
  • Installation and Warranty Documentation
Host InterfacePCI Express 3.0 x8
Product Type10Gigabit Ethernet Card
Device SupportedServer
Manufacturer Part Number7ZT7A00497
Packaged Quantity1
Limited Warranty1 Year
Form FactorML2
ManufacturerLenovo Group Limited
Product NameThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter
Network Technology10GBase-T
Brand NameLenovo
Height2.7"
Width0.7"
Depth6.6"
Environmentally FriendlyYes
Number of Network (RJ-45) Ports2
Media Type SupportedTwisted Pair
Total Number of Ports2
