Lenovo 5100 5100 PRO 480 GB Solid State Drive - M.2 2280 Internal - SATA (SATA/600)
540 MB/s Maximum Read Transfer Rate
- SKU
- 7SD7A05703
- Category
- Hard Drives/Solid State Drives
$867.45
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7SD7A05703
- Category
- Hard Drives/Solid State Drives
Overview
M.2 is a solid-state drive (SSD) form factor primarily used as an operating system boot solution. Lenovo ThinkSystem servers support M.2 drives with the addition of a supported M.2 adapter.

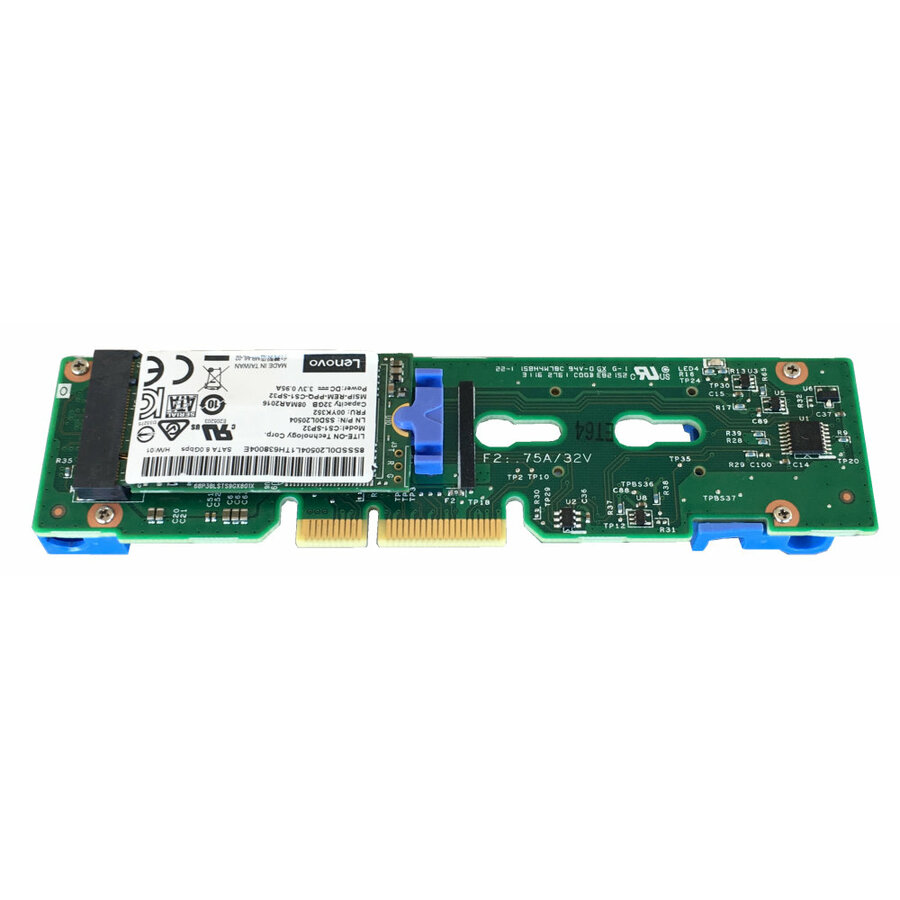

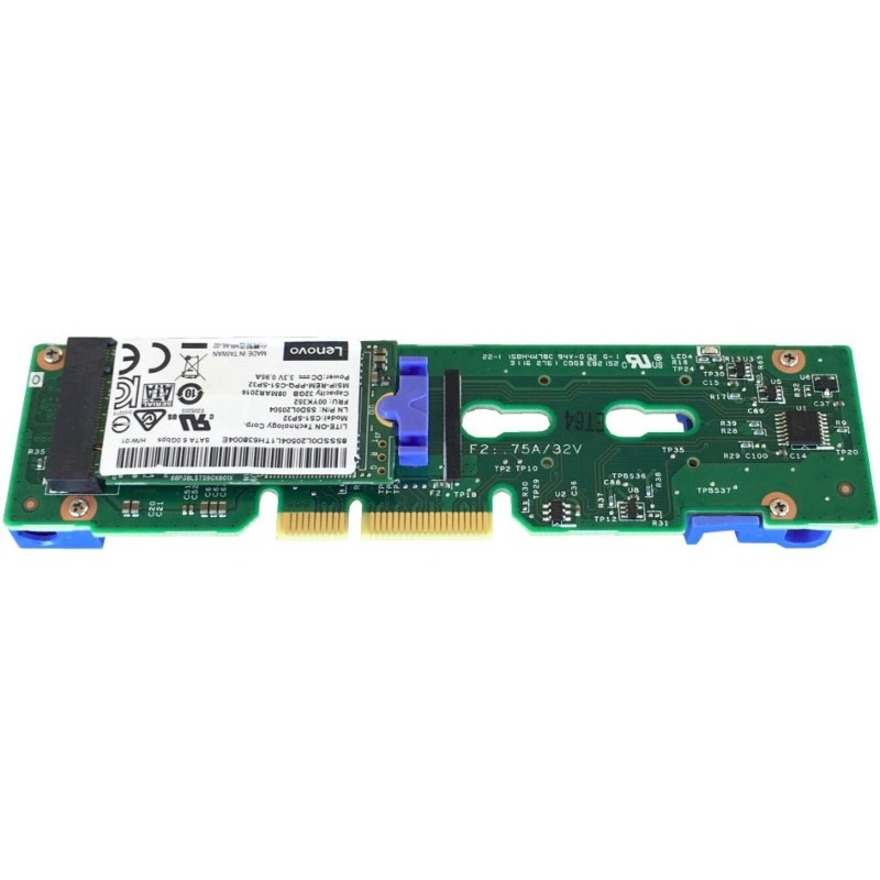

The M.2 drives install into an M.2 adapter which in turn is installed in a dedicated slot on the system board of the ThinkSystem server. With two M.2 drives configured, the drives are configured by default as a RAID-1 mirrored pair for redundancy.
There are two M.2 adapters supported:
• Single M.2 Adapter, which supports one M.2 drive; available as the ThinkSystem M.2 Enablement Kit
• Dual M.2 Adapter, which supports one or two M.2 drives; available as the ThinkSystem M.2 with Mirroring Enablement Kit
Highlights
- Hardened boot media that does not use a drive bay
- Both mechanically & electronically designed to be more robust than any prior implementation
- Design provides hardware mirroring of two M.2 SSDs
- M.2 SSDs have higher mean time between failures (MTBF) than SD cards or USB keys
- Tool-less, patented clip design that supports back to back connector layout, providing simple install in limited space.
Specifications
| Product Type | Solid State Drive |
|---|---|
| Compatibility | Lenovo ThinkSystem Servers: ST550 (7X09/7X10) SR630 (7X01/7X02) SR650 (7X05/7X06) SR850 (7X18/7X19) SN550 (7X16) SN850 (7X15) |
| Device Supported | Server |
| Storage Capacity | 480 GB |
| Manufacturer Part Number | 7SD7A05703 |
| Weight (Approximate) | 0.35 oz |
| Drive Type | Internal |
| Form Factor | M.2 2280 |
| Manufacturer | Lenovo Group Limited |
| Product Model | 5100 PRO |
| Product Name | ThinkSystem M.2 5100 480GB SATA 6Gbps Non-Hot-Swap SSD |
| Product Series | 5100 |
| Brand Name | Lenovo |
| Width | 0.9" |
| Depth | 3.1" |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Maximum Read Transfer Rate | 540 MB/s |
| Maximum Write Transfer Rate | 410 MB/s |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 93000IOPS |
| Random 4KB Write | 43000IOPS |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
