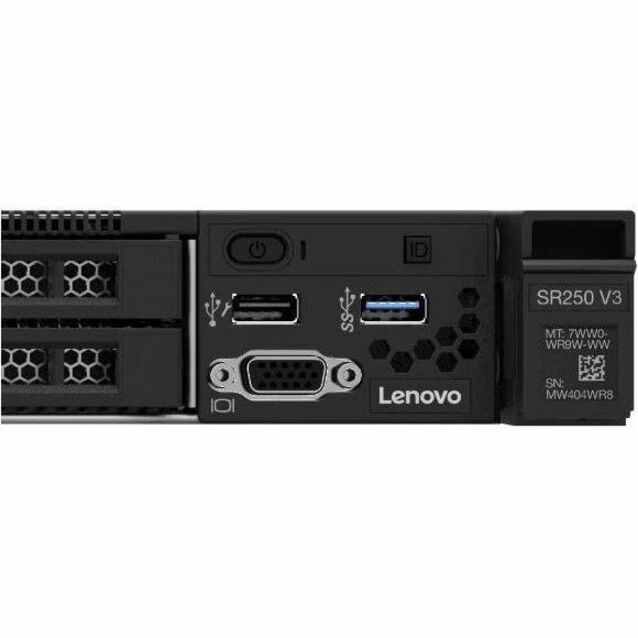

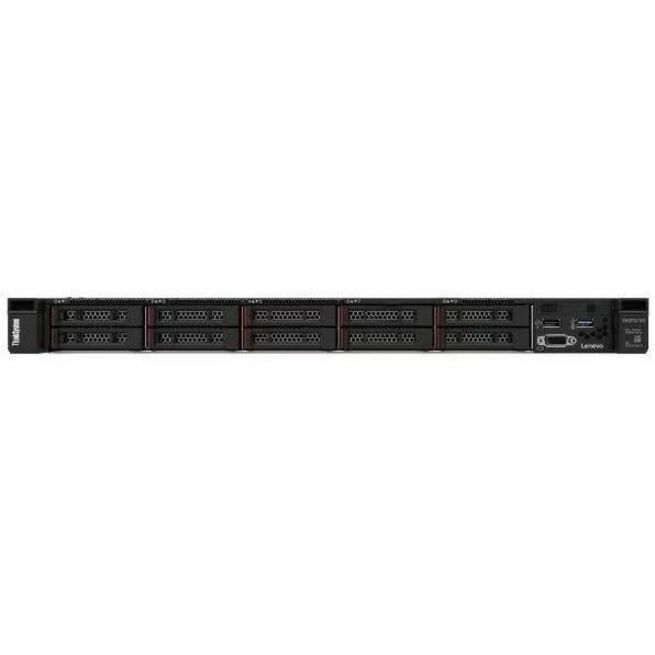

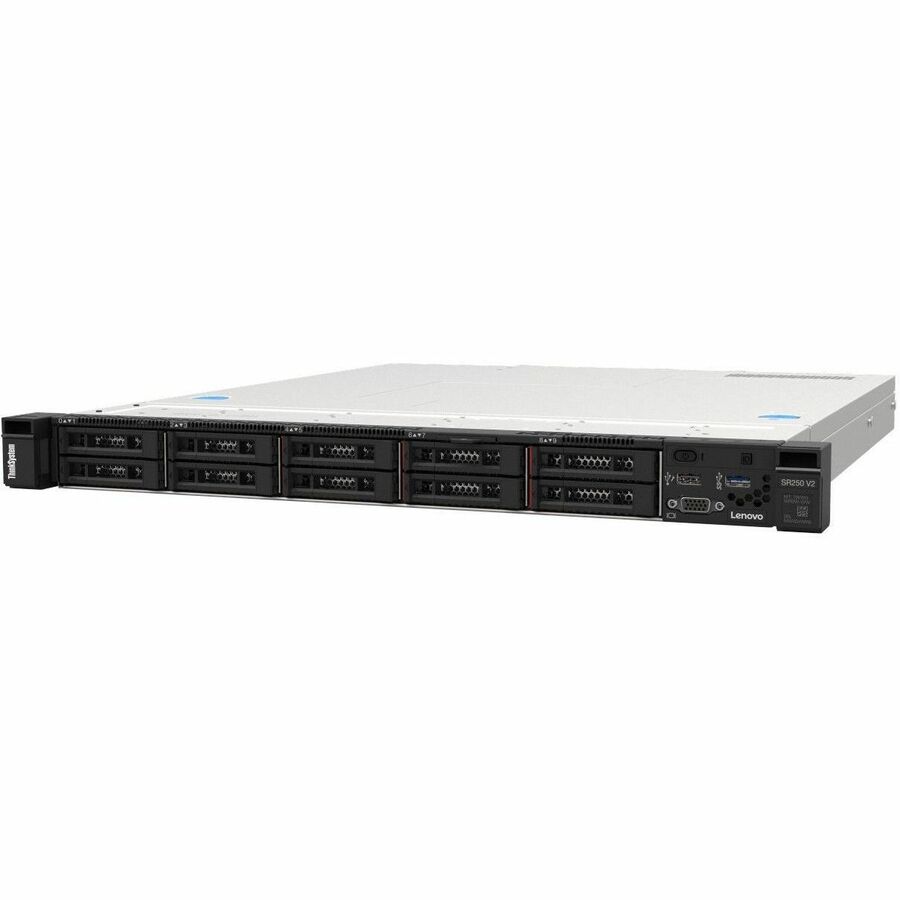

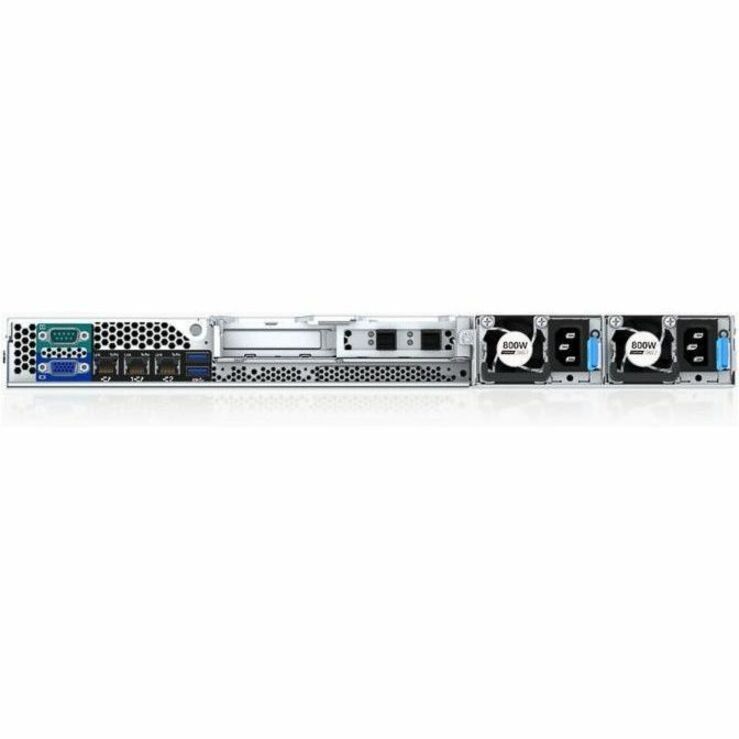

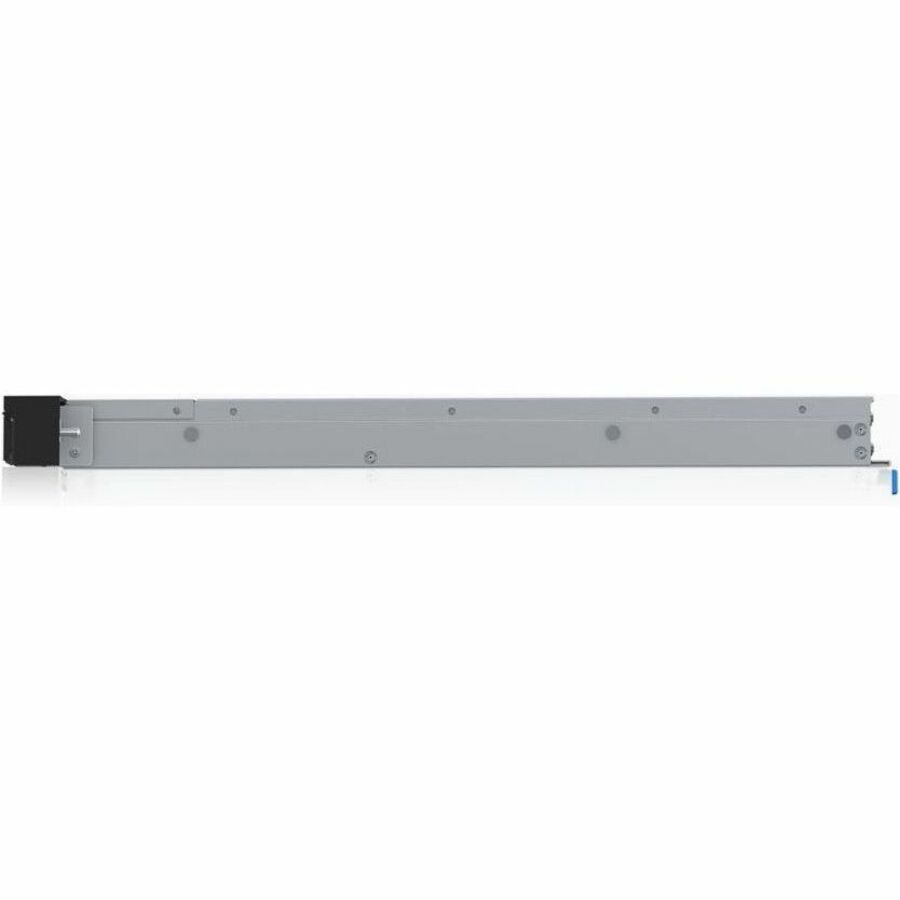

Lenovo ThinkSystem SR250 V3 7DCLA01XNA 1U Rack Server - 1 Xeon E-2456 3.30 GHz - 16 GB RAM - Serial ATA Controller
Intel C266 Chip - 1 Processor Support - 128 GB RAM Support - TruDDR5 Up to 16 MB Graphic Card - Gigabit Ethernet - 8 x Total Bay(s) - 8 x SFF Bay(s) - 1 x 800 W
- SKU
- 7DCLA01XNA
- Category
- Servers
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 7DCLA01XNA
- Category
- Servers
Overview
The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon E-2400 Series processor (formerly codenamed "Raptor Lake-E (RPL-E)") or Intel Pentium ("Alder Lake (ADL)") and up to 128 GB of 4800 MHz TruDDR5 ECC memory.
Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity.
Highlights
- 1 processors supported for optimal performance and maximum reliability in mission-critical server environments
- With 16 GB memory, users can multitask between applications smoothly, preserving responsiveness and efficiency
- 800 W power supply unit (PSU) included for hassle-free deployment and reliable power delivery in server environments
- Intel Xeon 3.30 GHz processor provides enterprise-grade performance with built-in security and remote management capabilities
- Rack form factor offers easy deployment and streamlined usage, enhancing operational efficiency in server environments
- With TruDDR5 memory technology, achieve faster data rates and enhanced system responsiveness for enterprise applications
- Gigabit Ethernet port offers ultra-fast network speeds, supporting modern workloads and reducing bottlenecks in data flow
- 2 Network (RJ-45) Ports allow Ethernet cables to transmit data and power simultaneously, reducing cabling complexity
- 4 USB ports allow quick, high-speed data transfer for your convenience, making file sharing and backups effortless
- Hexa-core (6 Core) processor core handles data efficiently for faster processing and better usability
Specifications
| Additional Warranty Information | Three-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response. |
|---|---|
| Package Contents |
|
| Product Type | Server |
| Cache | 12 MB |
| Error Checking | ECC |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | 7DCLA01XNA |
| Maximum Memory Supported | 128 GB |
| Riser Card | slot1: PCIe Gen4 x8 in x8 (LP); slot2: PCIe Gen4 x8 in x16 slot (LP) |
| Limited Warranty | 3 Year |
| Standard Memory | 16 GB |
| Weight (Approximate) | 25.22 lb |
| Form Factor | Rack |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7DCLA01XNA |
| Product Name | ThinkSystem SR250 V3 7DCLA01XNA Server |
| Processor Speed | 3.30 GHz |
| Processor Type | Xeon |
| Product Line | ThinkSystem |
| Security Features |
|
| Controller Type | Serial ATA |
| Product Series | SR250 V3 |
| Rack Height | 1U |
| Brand Name | Lenovo |
| Plug/Connector Type | C13 |
| Operating System Supported | Windows Server 2022, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 8.9, Red Hat Enterprise Linux 8.10, Red Hat Enterprise Linux 9.2, Red Hat Enterprise Linux 9.3, Red Hat Enterprise Linux 9.4, SUSE Linux Enterprise Server 15 SP5, Ubuntu 22.04 LTS x64 |
| Memory Technology | TruDDR5 |
| Processor Model | E-2456 |
| Height | 1.7" |
| Width | 17.1" |
| Depth | 22.1" |
| Processor Core | Hexa-core (6 Core) |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) |
| Chipset Manufacturer | Intel |
| Chipset Model | C266 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Number of Internal 2.5" Bays | 8 |
| Graphics Memory Capacity | 16 MB |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Ethernet Technology | Gigabit Ethernet |
| Number of Total Expansion Bays | 8 |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 800 W |
| Remote Management | Yes |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 1 |
| Total Number of Expansion Slots | 3 |
| Energy Star | Yes |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Number of SFF Bays | 8 |
| PCI Express Details | x8 LP, x8 LP, x8 Int |
| Remote Management Controller | XClarity Controller (XCC2) Standard |
| Total Number of Memory Slots | 4 |
| Energy Efficiency Certification | China Energy Conservation Program (CECP), ENERGY STAR 4.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 9 (ErP Lot 9) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
