Lenovo ThinkSystem 10Gigabit Ethernet Adapter
Lenovo

Lenovo ThinkSystem 10Gigabit Ethernet Adapter

PCI Express 3.0 x8 - Broadcom 57412 - 4 Port(s) - 4 - Twisted Pair - full-height, low-profile Bracket Height - 10GBase-T, 1000Base-T - Plug-in Card

SKU
4XC7A95696
Category
Network Interface Cards

$1,438.85

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4XC7A95696
Category
Network Interface Cards

Overview

The ThinkSystem Broadcom 57412 10GBASE-T Ethernet Adapters are four port 10 Gb Ethernet adapters that supports 10GBASE-T and 1000BASE-T Ethernet on Category 6 twisted-pair cables. They support networking virtualization technologies such as SR-IOV, VXLAN, and NVGRE. The 57412 10GBASE-T adapters are available in PCIe and OCP form factors.

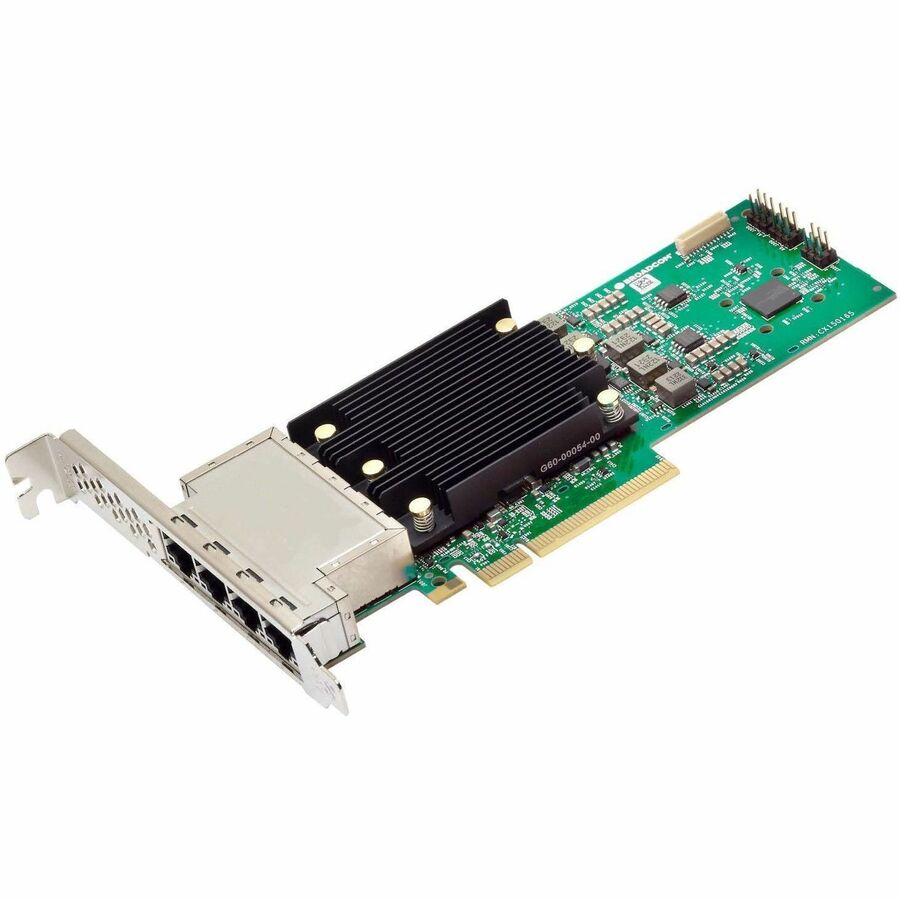

The following figure shows the ThinkSystem Broadcom 57412 10GBase-T 4-Port PCIe Ethernet Adapter.

Highlights

  • 10Gigabit Ethernet Adapter is reliable and offers a convenient networking solution
  • This 8000 MB/s bandwidth PCI Express 3.0 x8 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
  • With quad ports on a single card, save valuable expansion slots on your system for other purposes
  • Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
  • With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable

Specifications

Package Contents
  • ThinkSystem 10Gigabit Ethernet Adapter
  • PCIe Adapter
  • Documentation Flyer
Host InterfacePCI Express 3.0 x8
Product Type10Gigabit Ethernet Adapter
Device SupportedServer
Manufacturer Part Number4XC7A95696
Packaged Quantity1
Limited Warranty1 Year
FeaturesSingle Root I/O Virtualization (SR-IOV), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Transmit Side Scaling (TSS), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), Large Receive Offload (LRO), Large Send Offload (LSO), User Datagram Protocol (UDP), IPv4, IPv6, VLAN Support, UEFI Support, PXE Support, Extended Message-Signaled Interrupts (MSI-X)
Form FactorPlug-in Card
ManufacturerLenovo Group Limited
Product NameThinkSystem 10Gigabit Ethernet Adapter
Network Technology10GBase-T, 1000Base-T
Product LineThinkSystem
Brand NameLenovo
Width3"
Depth4.5"
Chipset ManufacturerBroadcom
Chipset Model57412
Number of Network (RJ-45) Ports4
Media Type SupportedTwisted Pair
Total Number of Ports4
Bracket Heightfull-height, low-profile
