Lenovo ThinkSystem 200/400Gigabit Ethernet Card
Lenovo

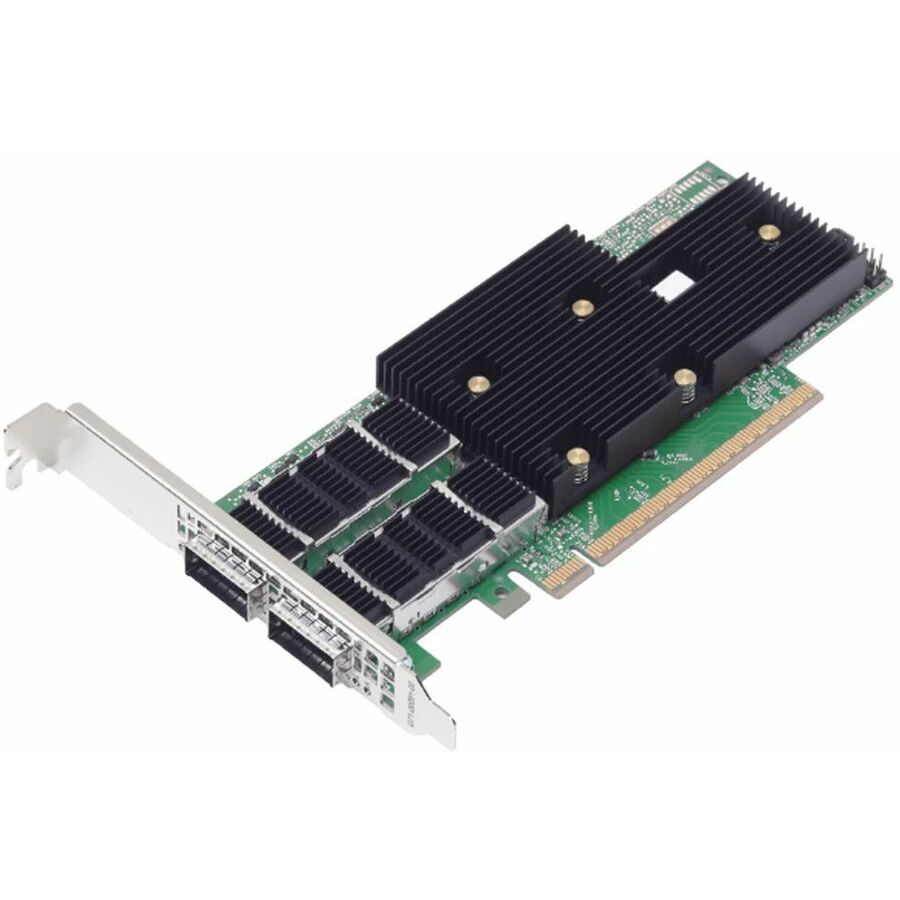

Lenovo ThinkSystem 200/400Gigabit Ethernet Card

PCI Express 5.0 x16 - Broadcom 57608 - Optical Fiber - full-height, low-profile Bracket Height - 100GBase-X, 50GBase-X, 25GBase-X - QSFP112 - Plug-in Card

SKU
4XC7A95695
Category
Network Interface Cards

$6,627.43

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4XC7A95695
Category
Network Interface Cards

Overview

The ThinkSystem Broadcom 57608 2x200/1x400GbE QSFP112 Ethernet Adapters are high-performance dual-port 200Gb Ethernet adapters with a PCIe 5.0 x16 host interface that are designed to build highly scalable, feature-rich networking solutions in servers for AI/ML, cloud, high-performance computing, and storage applications.

The 57608 Ethernet adapters are available in two form factors, a PCIe low-profile adapter and an OCP 3.0 adapter.

The adapters use the Broadcom BCM57608 400GbE MAC controller. Incorporating industry-leading PHY technology, the adapter provides highly efficient network connectivity using 8 lanes of built-in SerDes, each supporting 100/50G PAM-4 and 25G NRZ. The adapters support fourth-generation, standards-based RDMA over Converged Ethernet (RoCE) with hardware-based congestion control.

The 57608 Ethernet adapters offer two 200Gb Ethernet ports but can also be configured as a 1-port 400Gb adapter with port 1 active and port 2 disabled.

Highlights

  • 200/400Gigabit Ethernet Card offers maximum productivity with added dependability
  • PCI Express 5.0 x16 host interface ensures dependable data transfer for maximum efficiency
  • Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
  • With the 100GBase-X technology get up to 100Gbps data transfer rate over the supported network cable

Specifications

Package Contents
  • ThinkSystem 200/400Gigabit Ethernet Card
  • PCIe Adapter
  • Documentation Flyer
Host InterfacePCI Express 5.0 x16
Product Type200/400Gigabit Ethernet Card
Device SupportedServer, Switch
Manufacturer Part Number4XC7A95695
Packaged Quantity1
Limited Warranty1 Year
FeaturesRDMA over Converged Ethernet (RoCE), Extended Message-Signaled Interrupts (MSI-X), RDMA over Converged Ethernet (RoCE) v2, Single Root I/O Virtualization (SR-IOV), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), User Datagram Protocol (UDP), Large Send Offload (LSO), Large Receive Offload (LRO), Transmit Side Scaling (TSS), Receive Side Scaling (RSS), PXE Support, UEFI Support
Form FactorPlug-in Card
ManufacturerLenovo Group Limited
Product NameThinkSystem 200/400Gigabit Ethernet Card
Network Technology100GBase-X, 50GBase-X, 25GBase-X
Product LineThinkSystem
Brand NameLenovo
Expansion Slot TypeQSFP112
Width3"
Depth4.5"
Chipset ManufacturerBroadcom
Chipset Model57608
Media Type SupportedOptical Fiber
Total Number of Expansion Slots3
Bracket Heightfull-height, low-profile
AI-poweredYes
