Lenovo

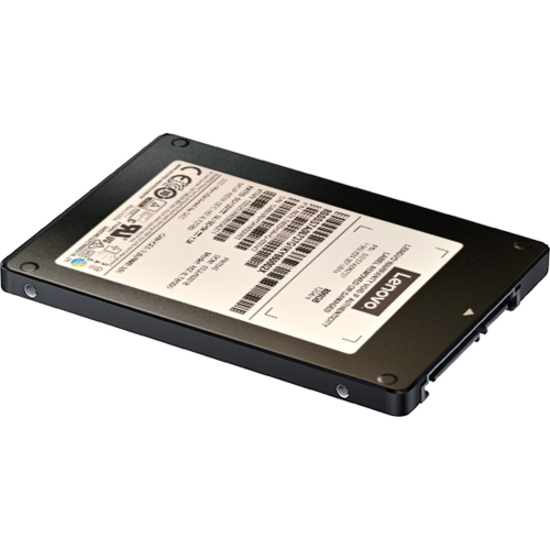

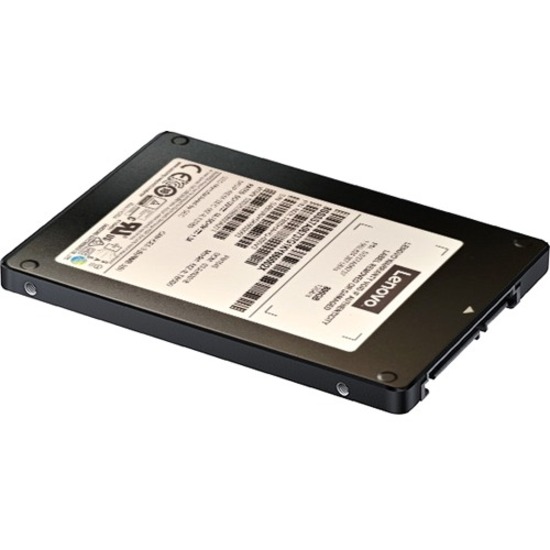

Lenovo PM9A3 3.84 TB Solid State Drive - 2.5" Internal - U.2 (SFF-8639) NVMe (PCI Express NVMe 4.0 x4) - Read Intensive
Server Device Supported - 1 DWPD - 7008 TB TBW - 6900 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty - 1
- SKU
- 4XB7A79697
- Category
- Hard Drives/Solid State Drives
MSRP$11,899.00
$10,856.00
Save 9%Back ordered
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A79697
- Category
- Hard Drives/Solid State Drives
Overview
The ThinkSystem PM9A3 Read Intensive NVMe Solid-State Drives (SSDs) are general-purpose yet high-performance family of NVMe SSDs. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
Highlights
- Available in a 2.5-inch factor
- Low cost, read-intensive SSD from Samsung
- Direct PCIe 4.0 x4 connection for each NVMe drive, resulting in up to 8 GBps overall throughput.
- Advanced ECC Engine and End-to-End Data Protection
- Samsung 32 layer V-NAND stacks the vertical NAND layers in three dimensions, solving the cell-to-cell interference that causes data corruption in planar NAND.
- Protect data integrity from unexpected power loss with Samsung's advanced power-loss protection architecture
- Supports Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T).
Specifications
| Additional Warranty Information | One-year, customer-replaceable unit (CRU) limited warranty |
|---|---|
| Package Contents |
|
| Product Type | Solid State Drive |
| Compatibility | Lenovo ThinkSystem Servers: SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) |
| Device Supported | Server |
| Storage Capacity | 3.84 TB |
| Hot Swappable | Yes |
| Manufacturer Part Number | 4XB7A79697 |
| Packaged Quantity | 1 |
| Platform Supported | PC, Linux |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 2.47 oz |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 2.5" U.2 PM9A3 3.84TB Read Intensive NVMe PCIe 4.0 x4 HS SSD |
| Product Series | PM9A3 |
| Brand Name | Lenovo |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Wireless LAN | No |
| Maximum Read Transfer Rate | 6900 MB/s |
| Maximum Write Transfer Rate | 4100 MB/s |
| Drive Interface | U.2 (SFF-8639) NVMe |
| Drive Interface Standard | PCI Express NVMe 4.0 x4 |
| Random 4KB Read | 1000000IOPS |
| Random 4KB Write | 190000IOPS |
| Operating System Compatibility | Windows Server 2016, Windows Server 2019, Windows Server 2022, Red Hat Enterprise Linux 7.6, Red Hat Enterprise Linux 7.7, Red Hat Enterprise Linux 7.8, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.1, Red Hat Enterprise Linux 8.2, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP1, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, VMware vSphere ESXi, VMware ESXi 7.0 U3, VMware ESXi 7.0 U2, VMware ESXi 7.0 U1, VMware ESXi 7.0, VMware ESXi 6.7 U3, Ubuntu 22.04 LTS, Ubuntu 20.04 LTS, Ubuntu 18.04.5 LTS, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 9.0 |
| Endurance (DWPD) | 1 |
| Endurance (TBW) | 7008 TB |
| Endurance Type | Read Intensive |
