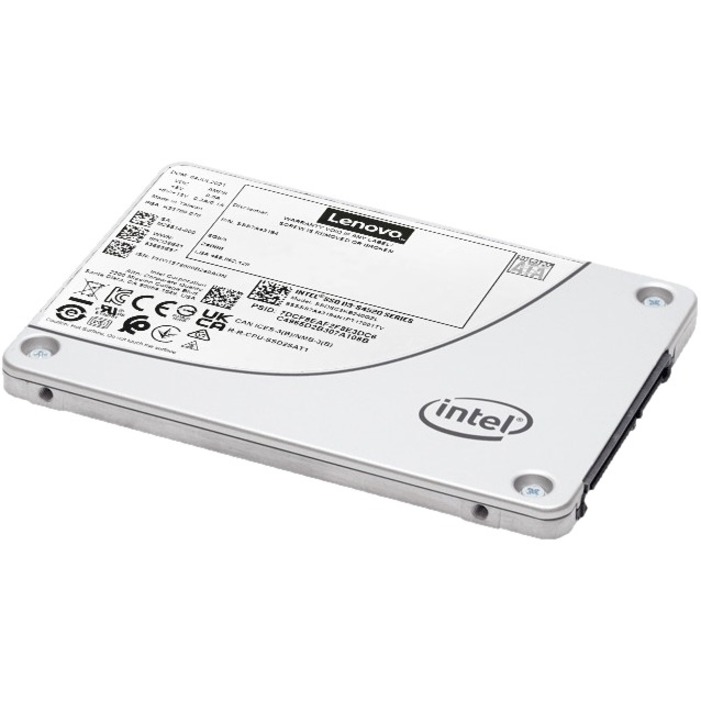

Lenovo S4520 7.68 TB Solid State Drive - 2.5" Internal - SATA (SATA/600) - Read Intensive
Server Device Supported - 2.6 DWPD - 37376 TB TBW - 550 MB/s Maximum Read Transfer Rate - Hot Swappable - 256-bit AES Encryption Standard - 1 Year Warranty
- SKU
- 4XB7A78624
- Category
- Hard Drives/Solid State Drives
MSRP$22,299.00
$20,341.71
Save 9%Back ordered
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A78624
- Category
- Hard Drives/Solid State Drives
Overview
The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.
Highlights
- 2.5-inch drives in multiple form form factors
- Cost-effective Intel 3D NAND TLC Flash Memory
- Endurance of up to 3 drive writes per day (DWPD) for 5 years, using Intel Standard Endurance Technology (SET).
- SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
- High reliability and enhanced ruggedness
- Energy savings, with typical write power consumption as low as 2.3 W per drive
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
- Full end-to-end data path protection
Specifications
| Additional Warranty Information | One-year, customer-replaceable unit (CRU) limited warranty |
|---|---|
| Product Type | Solid State Drive |
| Compatibility | Lenovo ThinkSystem Servers: SD630 V2 (7D1K) |
| Device Supported | Server |
| Storage Capacity | 7.68 TB |
| Hot Swappable | Yes |
| Manufacturer Part Number | 4XB7A78624 |
| Limited Warranty | 1 Year |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem 7mm S4520 7.68TB Read Intensive SATA 6Gb HS SSD |
| Product Series | S4520 |
| Brand Name | Lenovo |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Encryption Standard | 256-bit AES |
| Maximum Read Transfer Rate | 550 MB/s |
| Maximum Write Transfer Rate | 510 MB/s |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 86000IOPS |
| Random 4KB Write | 30000IOPS |
| Endurance (DWPD) | 2.6 |
| Endurance (TBW) | 37376 TB |
| Endurance Type | Read Intensive |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
