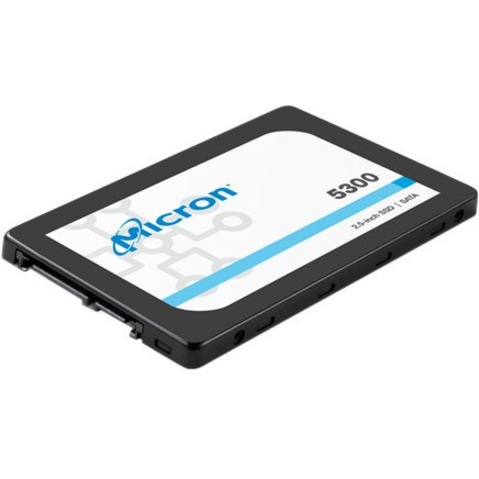

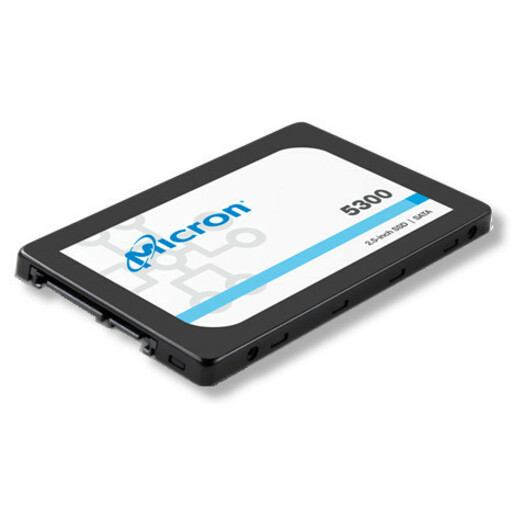

Lenovo 5300 960 GB Rugged Solid State Drive - 2.5" Internal - SATA (SATA/600) - Read Intensive
Server Device Supported - 1.5 DWPD - 2628 TB TBW - 540 MB/s Maximum Read Transfer Rate - 256-bit AES Encryption Standard - 1 Year Warranty
- SKU
- 4XB7A77458
- Category
- Hard Drives/Solid State Drives
$616.00
Back ordered — ships when restocked.
Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4XB7A77458
- Category
- Hard Drives/Solid State Drives
Overview
The 5300 Entry SATA solid-state drives (SSDs) are new SSDs for ThinkSystem servers. The drives use Micron 96-layer 3D NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
Highlights
- Industry standard 2.5-inch or 3.5-inch form factors
- New generation 96-layer 3D TLC NAND flash memory
- Suitable for read-intensive workloads with an endurance of between 0.6 and 1.5 drive writes per day (DWPD) for 5 years
- 6 Gbps SATA host interface
- High reliability and enhanced ruggedness
- MTTF of 3 million device hours - 50% more than most drives
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
Specifications
| Additional Warranty Information | One-year, customer-replaceable unit (CRU) limited warranty |
|---|---|
| Product Type | Solid State Drive |
| Compatibility | Lenovo ThinkSystem Servers: ST50 V2 (7D8K / 7D8J) |
| Device Supported | Server |
| Storage Capacity | 960 GB |
| Hot Swappable | No |
| Manufacturer Part Number | 4XB7A77458 |
| Limited Warranty | 1 Year |
| Weight (Approximate) | 2.47 oz |
| Drive Type | Internal |
| Form Factor | 2.5" |
| Manufacturer | Lenovo Group Limited |
| Product Name | ThinkSystem ST50 V2 2.5" 5300 960GB Read Intensive SATA 6Gb NHS SSD |
| Product Series | 5300 |
| Brand Name | Lenovo |
| Height | 0.3" |
| Width | 2.8" |
| Depth | 3.9" |
| Environmentally Friendly | Yes |
| Wireless LAN | No |
| Encryption Standard | 256-bit AES |
| Maximum Read Transfer Rate | 540 MB/s |
| Maximum Write Transfer Rate | 520 MB/s |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Random 4KB Read | 95000IOPS |
| Random 4KB Write | 30000IOPS |
| Endurance (DWPD) | 1.5 |
| Endurance (TBW) | 2628 TB |
| Endurance Type | Read Intensive |
| Rugged | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
More Hard Drives/Solid State Drives from Lenovo

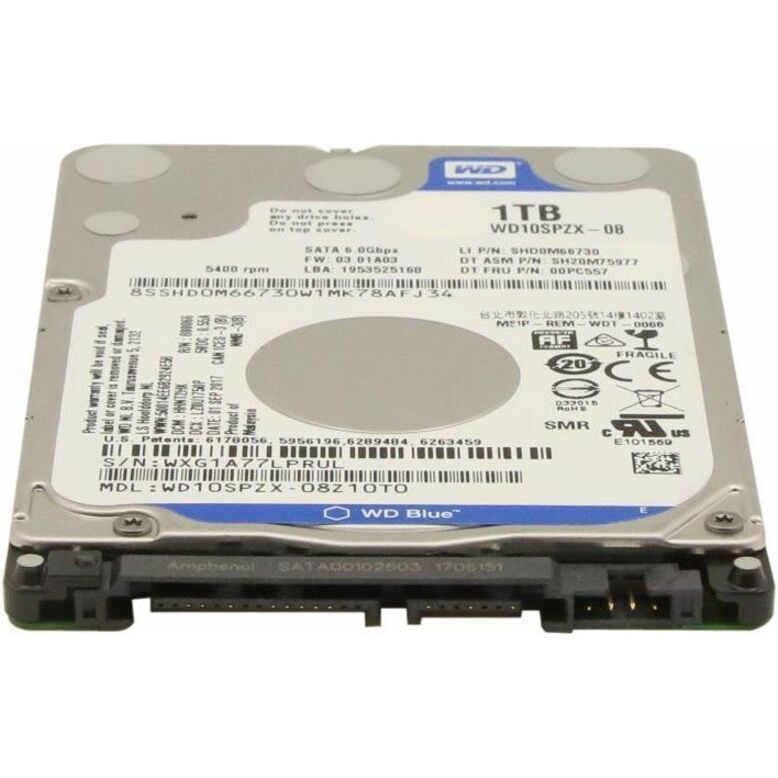

View the Lenovo catalog →- LenovoLenovo 1 TB Hard Drive - 2.5" Internal - SATA (SATA/600) - 5400rpm00PC557-RF
