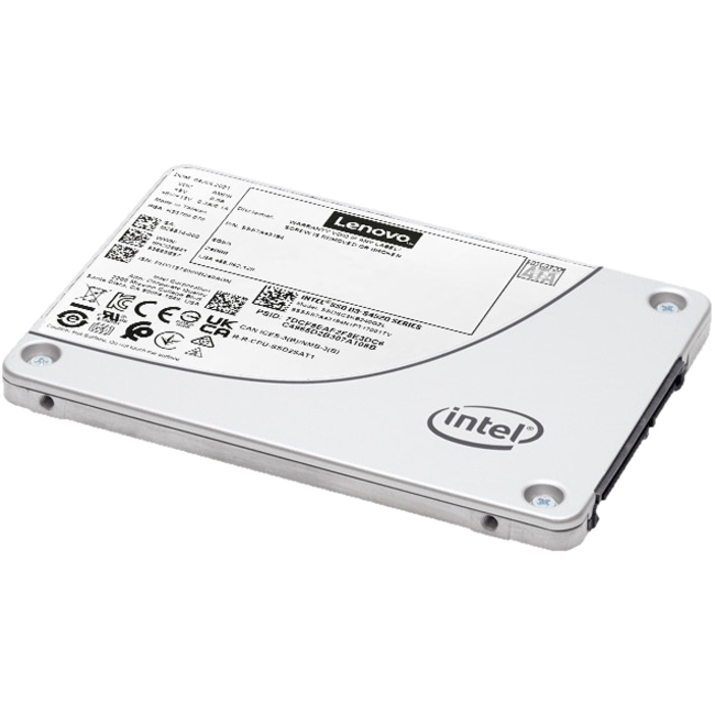

Lenovo S4520 1.92 TB Solid State Drive - 2.5" Internal - SATA (SATA/600) - Read Intensive
Lenovo

Lenovo S4520 1.92 TB Solid State Drive - 2.5" Internal - SATA (SATA/600) - Read Intensive

Server Device Supported - 2.5 DWPD - 9011.20 TB TBW - 550 MB/s Maximum Read Transfer Rate - 256-bit AES Encryption Standard - 1 Year Warranty

SKU
4XB7A77059
Category
Hard Drives/Solid State Drives

MSRP$6,299.00

$5,713.14

Save 9%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4XB7A77059
Category
Hard Drives/Solid State Drives

Overview

The ThinkSystem S4520 Read Intensive SATA SSDs are advanced 6Gb SATA solid-state drives that use 144-layer Intel 3D NAND TLC Flash Memory technology to provide an affordable solution with industry leading performance.

Highlights

  • 2.5-inch drives in multiple form form factors
  • Cost-effective Intel 3D NAND TLC Flash Memory
  • Endurance of up to 3 drive writes per day (DWPD) for 5 years, using Intel Standard Endurance Technology (SET).
  • SATA TLC solid-state drive with high read performance and consistently low latencies to fulfill client needs in the enterprise space
  • High reliability and enhanced ruggedness
  • Energy savings, with typical write power consumption as low as 2.3 W per drive
  • Absence of moving parts to reduce potential failure points in the server
  • S.M.A.R.T. support
  • Advanced Encrypting Standard (AES) 256-bit encryption
  • Full end-to-end data path protection

Specifications

Additional Warranty InformationOne-year, customer-replaceable unit (CRU) limited warranty
Product TypeSolid State Drive
CompatibilityLenovo ThinkSystem Servers: SE450 (7D8T) SD650 V2 (7D1M) SD650-N V2 (7D1N)
Device SupportedServer
Storage Capacity1.92 TB
Manufacturer Part Number4XB7A77059
Limited Warranty1 Year
Drive TypeInternal
Form Factor2.5"
ManufacturerLenovo Group Limited
Product NameThinkSystem 2.5" 7mm S4520 1.92TB Read Intensive SATA 6Gb Trayless SSD
Product SeriesS4520
Brand NameLenovo
Height0.3"
Width2.8"
Depth3.9"
Environmentally FriendlyYes
Wireless LANNo
Encryption Standard256-bit AES
Maximum Read Transfer Rate550 MB/s
Maximum Write Transfer Rate510 MB/s
Drive InterfaceSATA
Drive Interface StandardSATA/600
Random 4KB Read91000IOPS
Random 4KB Write38000IOPS
Drive CarrierNo
Endurance (DWPD)2.5
Endurance (TBW)9011.20 TB
Endurance TypeRead Intensive
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
