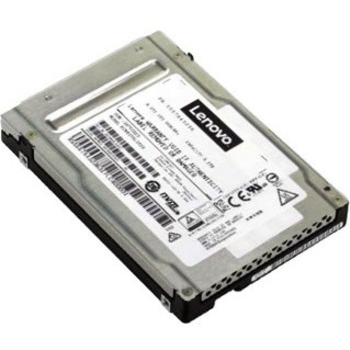

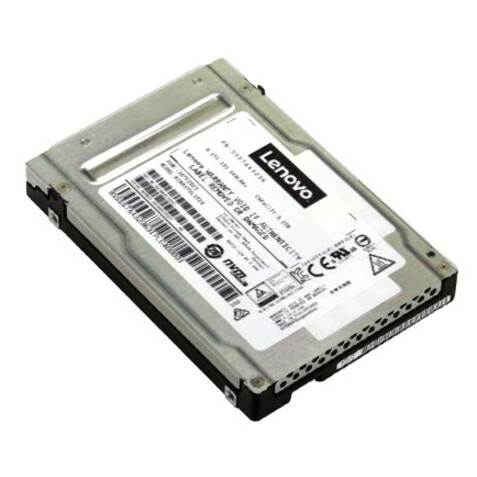

Lenovo CM6-V 800 GB Solid State Drive - 3.5" Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4)
Lenovo

Lenovo CM6-V 800 GB Solid State Drive - 3.5" Internal - PCI Express NVMe (PCI Express NVMe 4.0 x4)

Server Device Supported - 3.0 DWPD - 4380 TB TBW - 6900 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty

SKU
4XB7A64176
Category
Hard Drives/Solid State Drives

$1,427.43

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4XB7A64176
Category
Hard Drives/Solid State Drives

Overview

The ThinkSystem Kioxia CM6-V Mainstream NVMe PCIe 4.0 x4 solid-state drives (SSDs) in capacities up to 6.4 TB are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.

This product guide provides essential presales information to understand the Mainstream NVMe PCIe SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.

Highlights

  • Two form factors:
  • 2.5-inch (U.3, which is backward compatible with U.2) hot-swap drive tray
  • 3.5-inch hot-swap drive tray
  • Based on the Kioxia KCM61VUL drives (formerly Toshiba)
  • 96-layer BiCS FLASH 3D TLC memory
  • 3 drive-write-per-day (DWPD) SSD for mixed read-write workloads
  • PCIe 4.0 x4 host connection for each NVMe drive, resulting in up to 6.9 GBps overall throughput.
  • Full Power-Loss-Protection and End-to-End Data Protection
  • Low power consumption (maximum 20 W)

Specifications

Additional Warranty InformationThe ThinkSystem Kioxia CM6-V Mainstream NVMe SSDs carry a one-year, customer-replaceable unit (CRU) limited warranty.
Product TypeSolid State Drive
CompatibilityLenovo ThinkSystem Servers: SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) SR630 (7X01 / 7X02) SR650 (7X05 / 7X06)
Device SupportedServer
Storage Capacity800 GB
Hot SwappableYes
Manufacturer Part Number4XB7A64176
Limited Warranty1 Year
Weight (Approximate)4.59 oz
Drive TypeInternal
Form Factor3.5"
ManufacturerLenovo Group Limited
Product NameThinkSystem 3.5" Kioxia CM6-V 800GB Mainstream NVMe PCIe 4.0 x4 Hot Swap SSD
Product SeriesCM6-V
Brand NameLenovo
Height0.6"
Width2.8"
Depth3.9"
Environmentally FriendlyYes
Wireless LANNo
Maximum Read Transfer Rate6900 MB/s
Maximum Write Transfer Rate1400 MB/s
Drive InterfacePCI Express NVMe
Drive Interface StandardPCI Express NVMe 4.0 x4
Random 4KB Read880000IOPS
Random 4KB Write100000IOPS
Endurance (DWPD)3.0
Endurance (TBW)4380 TB
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
