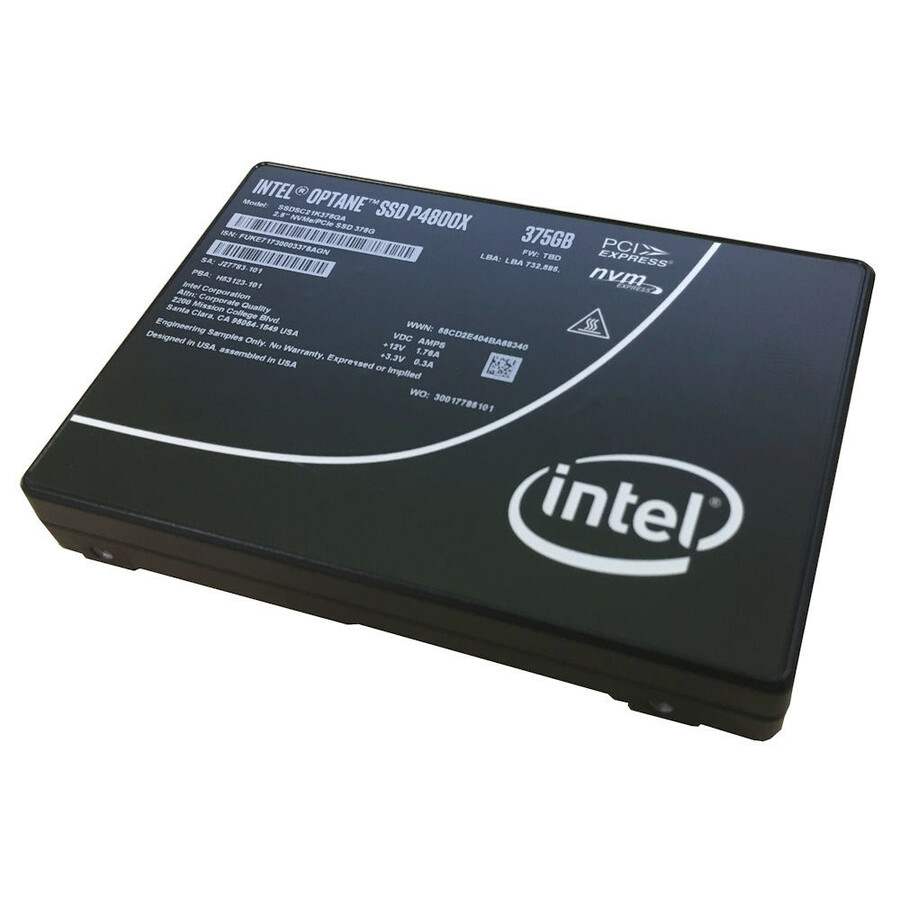

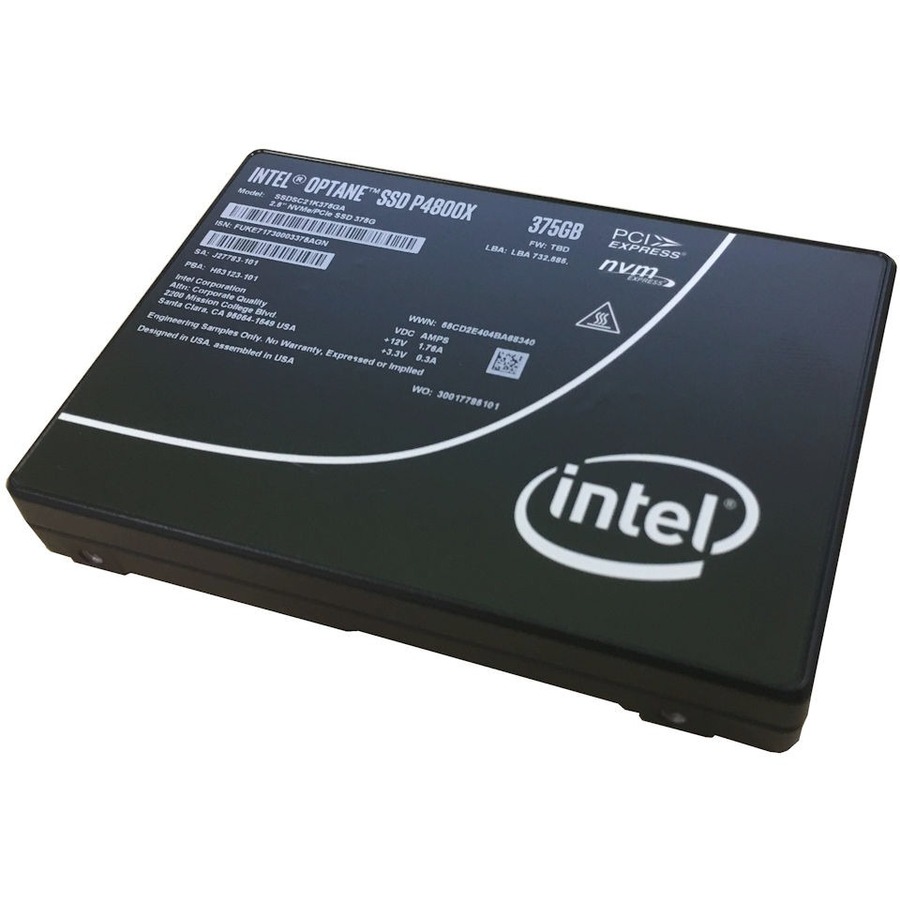

Lenovo Optane P4800X 375 GB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 3.0 x4) - Write Intensive
Lenovo

Lenovo Optane P4800X 375 GB Solid State Drive - 2.5" Internal - U.2 (PCI Express NVMe 3.0 x4) - Write Intensive

Server Device Supported - 60 DWPD - 41984 TB TBW - 2560 MB/s Maximum Read Transfer Rate - Hot Swappable - 1 Year Warranty

SKU
4XB7A38159
Category
Hard Drives/Solid State Drives

$5,530.29

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Lenovo through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
4XB7A38159
Category
Hard Drives/Solid State Drives

Overview

The ThinkSystem U.2 Intel Optane P4800X Performance NVMe PCIe SSD is the ultimate in high performance solid state drives with ultra-low latency, very high bandwidth, and an endurance of up to 60 drive writes per day (DWPD), making this drive an excellent storage choice for write-intensive high-performance workloads.

The Intel Optane P4800X SSD is a member of the Intel Optane family of data center solid state devices that are based on Intel-developed 3D XPoint memory, controller, interconnect technology and firmware, all providing significant gains in reducing latency and accelerating systems for workloads demanding large capacity and fast storage.

Highlights

  • PCIe 3.0 connection for each NVMe drive.
  • Ultra-low I/O latency, with an average read/write latency of 10 µs.
  • Consistently reliable quality of service
  • Excellent read and write performance at low queue depths
  • Near symmetrical read and write performance
  • Very high endurance at 30 or 60 full drive writes per day
  • Variable sector size and end-to-end data-path protection
  • Enhanced power-loss data protection
  • Thermal throttling and monitoring
  • Supports the NVMe Management Interface (NVMe-MI) specification

Specifications

Additional Warranty InformationThe Intel Optane P4800X Performance NVMe PCIe SSDs carry a 1-year, customer-replaceable unit (CRU) limited warranty.
Product TypeSolid State Drive
CompatibilityLenovo ThinkSystem Servers: SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SN550 V2 (7Z69) SR850 V2 (7D31 / 7D32) SR860 V2 (7Z59 / 7Z60)
Device SupportedServer
Storage Capacity375 GB
Hot SwappableYes
Manufacturer Part Number4XB7A38159
Limited Warranty1 Year
Drive TypeInternal
Form Factor2.5"
ManufacturerLenovo Group Limited
Product NameOptane P4800X Solid State Drive
Product LineOptane
Product SeriesP4800X
Brand NameLenovo
Height0.6"
Width2.8"
Depth3.9"
Environmentally FriendlyYes
Wireless LANNo
Maximum Read Transfer Rate2560 MB/s
Maximum Write Transfer Rate2252.80 MB/s
Drive InterfaceU.2
Drive Interface StandardPCI Express NVMe 3.0 x4
Random 4KB Read550000IOPS
Random 4KB Write550000IOPS
Endurance (DWPD)60
Endurance (TBW)41984 TB
Endurance TypeWrite Intensive
Environmental ComplianceRestriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
